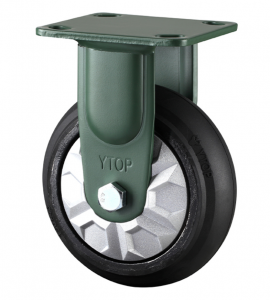

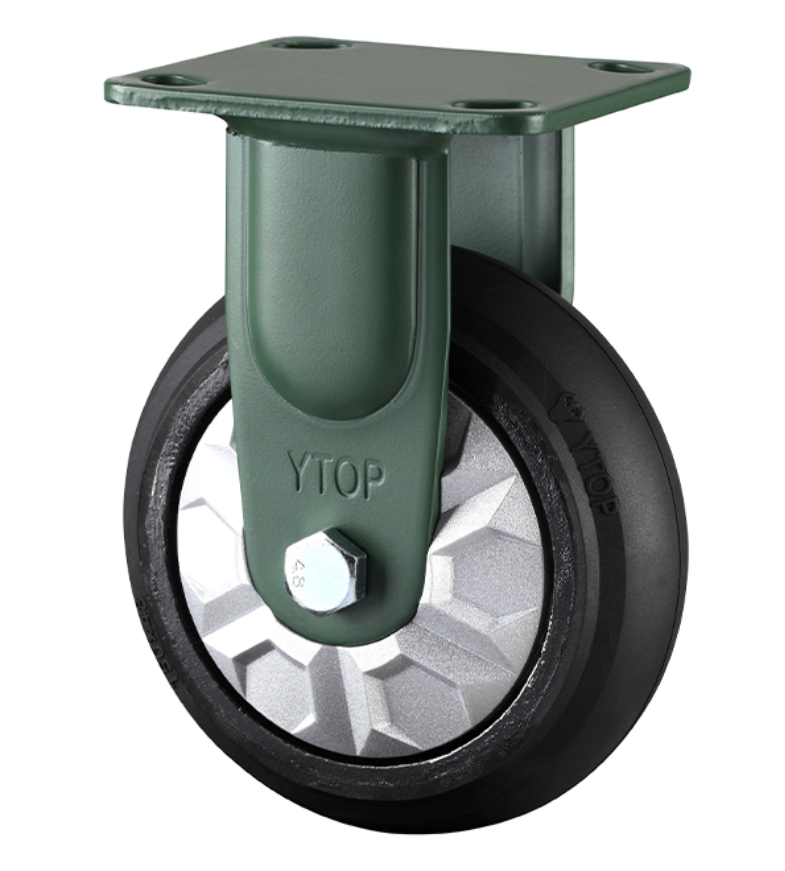

Caster bracket: one-piece molded or welded bracket is better

When selecting casters for industrial applications, one important consideration is the construction method of the caster bracket. Two primary construction methods are commonly used: one-piece molded (or stamped/formed) brackets and welded brackets. Each construction method has its own unique characteristics, advantages, limitations, and suitable applications, and understanding the differences between them is essential for selecting the right caster for your specific needs. This article provides a comprehensive comparison of one-piece molded brackets and welded brackets, examining their construction methods, performance characteristics, advantages, limitations, and typical applications.

Introduction to Caster Bracket Construction Methods

The caster bracket is the structural component that connects the wheel to the mounting plate or stem and supports the full load of the equipment. The method used to construct the bracket has a significant impact on its strength, load capacity, durability, dimensional consistency, cost, and suitability for different applications. There are two primary construction methods used for caster brackets: one-piece molded (also known as stamped, formed, or deep-drawn) brackets, which are made from a single piece of sheet metal that is cut and formed into the bracket shape without any welding; and welded brackets, which are fabricated from multiple pieces of sheet metal that are cut, formed, and then welded together to create the bracket structure. Each construction method has its own unique set of characteristics that make it suitable for different types of caster applications.

The choice between one-piece molded and welded bracket construction is primarily determined by the load capacity requirements of the application. One-piece molded brackets are typically used for light and medium-duty casters, where the loads are moderate and the bracket can be efficiently produced from a single piece of sheet metal. Welded brackets are typically used for heavy and extra-heavy-duty casters, where the loads are significant and require thicker material and more robust construction that cannot be achieved with a one-piece formed design. However, there is overlap in the medium-duty range, where both construction methods may be used, and the choice depends on factors such as cost, production volume, design complexity, and manufacturer preference. In this article, we will analyze both construction methods in detail, examining their manufacturing processes, structural characteristics, performance advantages and limitations, typical applications, and cost considerations, to provide a comprehensive comparison that helps purchasers and users make informed decisions about caster bracket construction.

One-Piece Molded Brackets: Construction and Characteristics

One-piece molded brackets, also known as stamped, formed, or deep-drawn brackets, are manufactured from a single piece of sheet metal that is cut and formed into the final bracket shape without any welding or joining of separate pieces. The manufacturing process typically begins with a flat sheet of steel (or occasionally aluminum or stainless steel) of the appropriate thickness. A blank is cut from the sheet using a laser cutter, CNC punch, or stamping die, creating a flat pattern that, when formed, will produce the desired bracket shape. The blank is then formed into the three-dimensional bracket shape using a series of bending, stamping, or deep-drawing operations. The forming process creates the fork legs (which hold the wheel axle), the mounting plate or stem base, and any reinforcement features such as ribs, flanges, or gussets, all from the same single piece of metal.

One of the key characteristics of one-piece molded brackets is that they have no welds, which eliminates potential weak points that can be associated with welded joints. The continuous metal structure provides consistent strength throughout the bracket, with no heat-affected zones (which can occur in welding and potentially weaken the metal) or weld defects (such as porosity, incomplete penetration, or poor fusion) that could compromise the bracket’s strength. The forming process can also create integral reinforcement features such as ribs, flanges, and gussets that increase the bracket’s stiffness and load capacity without adding additional material or weight. One-piece molded brackets are typically produced using progressive stamping dies for high-volume production, which allows for very high production rates and consistent dimensional accuracy from part to part. The key advantages of one-piece molded brackets include: no welds, eliminating potential weak points and weld defects; consistent dimensional accuracy and repeatability, particularly when produced with progressive dies; high production efficiency and low per-unit cost for high-volume production; smooth, clean appearance with no visible welds or grinding marks; the ability to create integral reinforcement features during the forming process; and lighter weight compared to welded brackets of equivalent strength, as the forming process can optimize material usage. The main limitations of one-piece molded brackets include: limited load capacity compared to welded brackets, as the forming process is generally limited to thinner sheet metal (typically up to 1/4 inch or 6 mm, with most one-piece brackets being 1/8 inch or 3 mm or thinner); limited design flexibility, as the forming process imposes constraints on the shapes and geometries that can be produced; higher initial tooling cost for stamping dies, making one-piece molded brackets less economical for low-volume production; and the potential for stress concentrations at bend radii and formed features, which can be a concern for fatigue life under repeated loading. One-piece molded brackets are ideal for light and medium-duty caster applications, including furniture casters, office chair casters, light and medium-duty carts, display racks, hospital equipment, food service carts, and general-purpose casters with load capacities typically up to 500 kg per caster (and occasionally up to 1,000 kg for heavier formed designs). They are the most common bracket construction method for light and medium-duty casters due to their cost-effectiveness, consistent quality, and clean appearance.

Welded Brackets: Construction and Characteristics

Welded brackets are fabricated from multiple pieces of sheet metal that are cut, formed, and then welded together to create the final bracket structure. The manufacturing process typically begins with cutting the individual components of the bracket (such as the two fork legs, the top plate or crossbar, and any reinforcement gussets) from steel plate of the appropriate thickness using a laser cutter, CNC plasma cutter, or saw. The individual components are then formed or bent as needed (for example, the fork legs may be bent to create the axle mounting holes and the desired fork angle). The components are then fixtured in a welding jig to ensure proper alignment and dimensional accuracy, and welded together using a welding process such as MIG (Metal Inert Gas) welding, TIG (Tungsten Inert Gas) welding, or spot welding. The welds join the fork legs to the top plate or crossbar, and any reinforcement gussets to the bracket structure. After welding, the bracket may undergo additional operations such as grinding (to smooth welds and remove spatter), drilling or tapping (for mounting holes and axle holes), and surface treatment (such as powder coating or zinc plating).

One of the key characteristics of welded brackets is that they can be constructed from much thicker and heavier material than one-piece molded brackets, as the individual components can be cut from thick plate and welded together without the constraints of the forming process. Welded brackets are commonly constructed from steel plate ranging from 1/4 inch (6 mm) to 1/2 inch (12 mm) or even thicker for extra-heavy-duty applications, providing much higher load capacity than one-piece molded brackets. The welded construction also allows for greater design flexibility, as the bracket can be custom-designed with specific geometries, reinforcement features, and mounting configurations to meet the requirements of a particular application. Welded brackets can incorporate additional reinforcement features such as gussets, crossbars, and doubler plates that are welded to the bracket structure to increase strength and stiffness in high-stress areas. The key advantages of welded brackets include: very high load capacity, with the ability to support loads ranging from several hundred to tens of thousands of kilograms per caster, depending on the material thickness and design; design flexibility, with the ability to create custom bracket geometries and configurations for specific applications; the ability to use very thick material for extreme load requirements; the ability to add reinforcement features (gussets, crossbars, doublers) in high-stress areas; suitability for low-volume and custom production, as welded brackets do not require expensive stamping dies and can be produced economically in small quantities; and the ability to repair or modify welded brackets by welding, which can extend the service life of the caster. The main limitations of welded brackets include: the presence of welds, which can be potential weak points if not properly executed (weld defects such as porosity, incomplete penetration, or poor fusion can compromise strength); heat-affected zones from the welding process, which can alter the mechanical properties of the steel and potentially reduce toughness or fatigue resistance; higher per-unit cost for high-volume production compared to one-piece molded brackets, as welding is generally slower and more labor-intensive than stamping; dimensional consistency that depends on the quality of the fixturing and welding, with potential for variation if not carefully controlled; the need for post-weld operations such as grinding and finishing to achieve a clean appearance; and heavier weight compared to one-piece molded brackets, due to the thicker material and additional reinforcement. Welded brackets are ideal for heavy and extra-heavy-duty caster applications, including industrial carts, warehouse equipment, material handling systems, aerospace manufacturing equipment, shipbuilding equipment, heavy machinery, tow-line applications, and any caster application with load capacities typically exceeding 500 kg per caster (and often ranging from 1,000 to 20,000 kg or more for extra-heavy-duty designs). They are the standard bracket construction method for heavy and extra-heavy-duty casters due to their high load capacity, design flexibility, and suitability for custom and low-volume production.

Comparison: Strength, Cost, and Application Suitability

When comparing one-piece molded brackets and welded brackets, several key dimensions emerge that determine their relative suitability for different applications. In terms of load capacity and strength, welded brackets have a clear advantage, as they can be constructed from much thicker material and can incorporate additional reinforcement features, allowing them to support significantly higher loads than one-piece molded brackets. One-piece molded brackets are typically limited to load capacities of up to approximately 500-1,000 kg per caster, while welded brackets can support loads ranging from 500 kg to 20,000 kg or more per caster, depending on the design and material thickness. For heavy and extra-heavy-duty applications, welded brackets are the only viable option, as one-piece molded brackets simply cannot provide the required strength and load capacity.

In terms of cost and production efficiency, one-piece molded brackets have a significant advantage for high-volume production. The progressive stamping process used for one-piece molded brackets is highly automated and can produce parts at very high rates with low per-unit labor cost, making them very economical for large production runs. However, one-piece molded brackets require significant initial investment in stamping dies, which makes them less economical for low-volume or custom production. Welded brackets, on the other hand, have higher per-unit labor and material costs for high-volume production but do not require expensive tooling, making them more economical for low-volume, custom, or prototype production. In terms of dimensional consistency and quality, one-piece molded brackets produced with progressive dies generally offer very high consistency and repeatability, as the forming process is highly automated and controlled. Welded brackets can also achieve high dimensional consistency with proper fixturing and quality control, but they are more dependent on the skill of the welder and the quality of the fixturing, and there is greater potential for variation. In terms of appearance, one-piece molded brackets generally offer a cleaner, more streamlined appearance with no visible welds, while welded brackets may have visible welds and grinding marks that give them a more industrial, functional appearance. In terms of design flexibility, welded brackets offer greater flexibility, as they can be custom-designed with specific geometries and reinforcement features without the constraints of the forming process. One-piece molded brackets are more constrained by the capabilities of the stamping and forming process, although modern forming technology has significantly expanded the range of possible geometries. In terms of application suitability, one-piece molded brackets are best for light and medium-duty applications where cost, appearance, and high-volume production are priorities, while welded brackets are best for heavy and extra-heavy-duty applications where load capacity, strength, and design flexibility are priorities. In the medium-duty range (approximately 200-1,000 kg per caster), both construction methods may be viable, and the choice depends on factors such as production volume, cost, appearance requirements, and manufacturer capability.

Selection Guide and Conclusion

Selecting between one-piece molded and welded bracket construction requires careful consideration of the specific requirements of the application. The first and most important factor is the load capacity requirement. If the required load per caster exceeds approximately 500-1,000 kg, welded brackets are generally necessary, as one-piece molded brackets cannot provide the required strength. For loads below 500 kg, one-piece molded brackets are typically the more cost-effective choice, particularly for high-volume production. The second factor is the production volume. For high-volume production (thousands or tens of thousands of units), one-piece molded brackets produced with progressive stamping dies are generally the most cost-effective, despite the initial tooling investment. For low-volume or custom production (hundreds of units or fewer), welded brackets are generally more economical, as they do not require expensive tooling and can be produced with minimal setup.

The third factor is the design requirements. If the application requires a custom bracket geometry, special mounting configuration, or specific reinforcement features that cannot be achieved with a one-piece formed design, welded brackets offer greater design flexibility. If the application can use a standard bracket geometry, one-piece molded brackets are generally more cost-effective. The fourth factor is the appearance requirements. If the caster will be visible in the final product and a clean, streamlined appearance is desired, one-piece molded brackets generally offer a more aesthetically pleasing appearance with no visible welds. If the caster will be hidden or if a functional, industrial appearance is acceptable, welded brackets are suitable. The fifth factor is the quality and consistency requirements. If very high dimensional consistency and repeatability are required (particularly for high-volume production), one-piece molded brackets produced with progressive dies generally offer the best consistency. If the application can tolerate some dimensional variation or if custom fixturing can ensure consistency, welded brackets are suitable. The sixth factor is the total cost of ownership, including not just the initial caster cost but also the expected service life, maintenance requirements, and potential for repair or modification. Welded brackets can often be repaired or modified by welding, which can extend their service life, while one-piece molded brackets are generally not repairable and must be replaced if damaged. By carefully evaluating all of these factors and selecting the appropriate bracket construction method for the specific application, purchasers and users can ensure that they get the best combination of performance, quality, and value from their caster investment.

In conclusion, both one-piece molded brackets and welded brackets have their own unique characteristics, advantages, and limitations that make them suitable for different types of caster applications. One-piece molded brackets, manufactured from a single piece of sheet metal without welding, offer excellent dimensional consistency, clean appearance, high production efficiency, and low per-unit cost for high-volume production, making them ideal for light and medium-duty caster applications. Welded brackets, fabricated from multiple pieces of thick steel plate welded together, offer very high load capacity, design flexibility, suitability for low-volume and custom production, and the ability to incorporate additional reinforcement features, making them ideal for heavy and extra-heavy-duty caster applications. The choice between these two construction methods is primarily determined by the load capacity requirements of the application, with one-piece molded brackets being suitable for light and medium loads and welded brackets being necessary for heavy and extra-heavy loads. In the medium-duty range where both methods may be viable, factors such as production volume, cost, appearance, design requirements, and quality consistency should be considered to determine the most suitable construction method. By understanding the differences between one-piece molded and welded bracket construction and carefully evaluating the specific requirements of the application, purchasers and users can make informed decisions that ensure optimal performance, quality, and value from their caster investment. Whether selecting a one-piece molded bracket for a light-duty furniture caster or a welded bracket for an extra-heavy-duty industrial caster, understanding the characteristics and applications of these two construction methods is the key to making an informed decision that ensures safe, reliable, and cost-effective performance.
