Caster bracket surface treatment science and technology: spraying, electrophoresis and galvanization difference

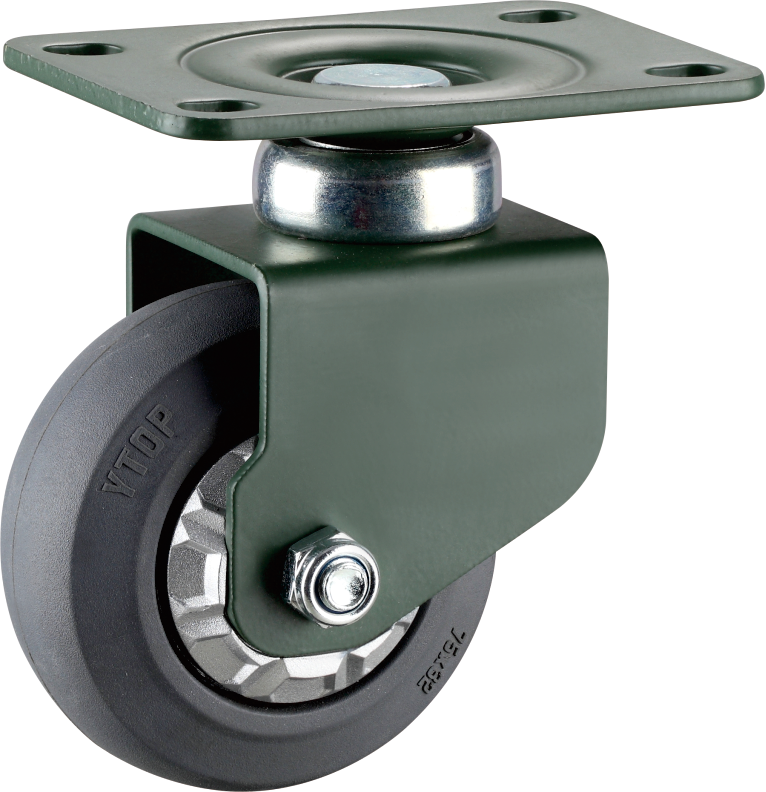

Caster bracket, as a key component in supporting the casters and ensuring stable movement, its surface treatment process is not only related to the appearance quality of the product, but more importantly related to the corrosion resistance, wear resistance, and service life of the caster. Different surface treatment processes offer distinct levels of protection, durability, and aesthetic appeal, making the selection of the right surface treatment an important decision in caster design and manufacturing. This article provides a comprehensive analysis of caster bracket surface treatment technologies, examining the most common processes, their characteristics, advantages, limitations, and suitable applications.

Introduction to Caster Bracket Surface Treatment

The surface treatment of caster brackets is a critical manufacturing process that serves multiple important functions. First and foremost, it provides corrosion protection, preventing the steel bracket from rusting and degrading when exposed to moisture, chemicals, and other corrosive substances in the operating environment. Second, it provides wear resistance, protecting the bracket surface from scratches, abrasion, and impact damage during use. Third, it provides an attractive appearance, giving the caster a clean, professional, and consistent finish that enhances the overall aesthetic of the equipment it is installed on. Fourth, it can provide additional functional properties such as chemical resistance, UV resistance, anti-microbial properties, or electrical conductivity, depending on the specific treatment used. Given these important functions, the surface treatment process is a critical factor in determining the quality, durability, and value of a caster bracket.

Caster brackets are typically made from carbon steel, which is susceptible to corrosion when exposed to moisture and oxygen. Without proper surface treatment, a carbon steel caster bracket would quickly develop rust, which not only detracts from the appearance but also weakens the bracket over time and can contaminate the surrounding environment (particularly problematic in food, medical, or cleanroom applications). The surface treatment process creates a protective barrier between the steel substrate and the environment, preventing or slowing the corrosion process. There are several surface treatment technologies commonly used for caster brackets, each with its own unique characteristics, advantages, limitations, and suitable applications. The most common include powder coating, e-coating (electrophoretic coating), zinc plating (galvanizing), chromate conversion coating, anodizing (for aluminum brackets), and various multi-layer coating systems. In this article, we will analyze each of these surface treatment technologies in detail, examining their processes, characteristics, performance, and applications, and providing guidance on selecting the right surface treatment for specific caster applications.

Powder Coating: The Most Popular Finish

Powder coating is the most popular and widely used surface treatment for caster brackets, accounting for the majority of carbon steel caster brackets produced worldwide. It is a dry finishing process that applies a free-flowing, dry powder coating material to the metal surface, which is then cured under heat to form a hard, durable, and attractive finish. The powder coating material is typically a thermoset polymer (most commonly polyester, polyurethane, or epoxy) that is finely ground into a powder and mixed with pigments, curing agents, and other additives to achieve the desired color, gloss, and performance properties.

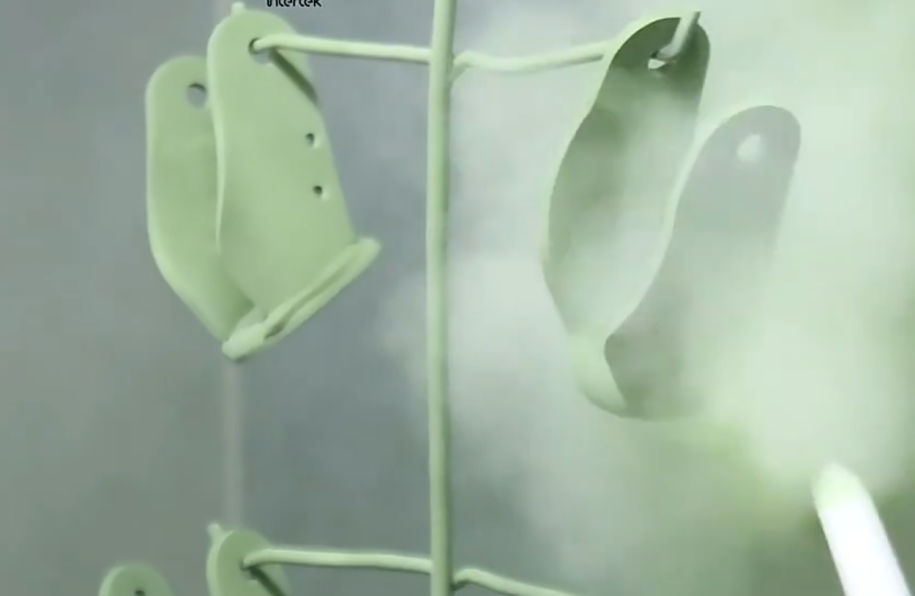

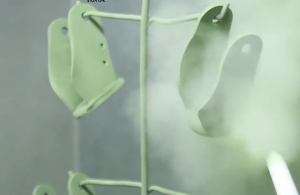

The powder coating process typically involves several steps: pretreatment (cleaning, rinsing, phosphating, and drying the bracket to ensure proper adhesion), powder application (spraying the powder onto the grounded bracket using an electrostatic spray gun, which charges the powder particles and causes them to adhere to the metal surface), and curing (heating the coated bracket in an oven at typically 180-200C for 10-20 minutes, causing the powder to melt, flow, and cross-link into a continuous, durable film). The key advantages of powder coating include: excellent durability and chip resistance, with a thick, tough finish that resists scratching, chipping, and abrasion better than conventional liquid paint; excellent corrosion protection, particularly when used over a proper pretreatment or e-coat primer; wide range of colors and finishes, with virtually any color available in gloss, semi-gloss, matte, textured, or metallic finishes; environmental friendliness, with no volatile organic compounds (VOCs) emitted during application and minimal waste (overspray powder can be collected and reused); high material utilization efficiency, typically 95% or higher; and consistent, uniform finish with minimal drips, runs, or sags. The main limitations of powder coating include: the requirement for a curing oven, which adds equipment and energy costs; the difficulty of achieving very thin coatings (powder coatings are typically 50-100 microns thick, thicker than liquid paint); the difficulty of touching up small areas of damage; and the potential for orange peel texture or other surface imperfections if not applied correctly. Powder coating is ideal for the vast majority of caster bracket applications, including industrial carts, warehouse equipment, material handling systems, furniture, and general-purpose casters. It is the default finish for carbon steel caster brackets and is suitable for virtually any indoor or moderately corrosive outdoor application where a durable, attractive, and cost-effective finish is required. Premium caster manufacturers use high-quality polyester or polyurethane powder coatings with proper pretreatment to ensure excellent adhesion, corrosion protection, and long-term durability.

E-Coating: Superior Corrosion Protection Primer

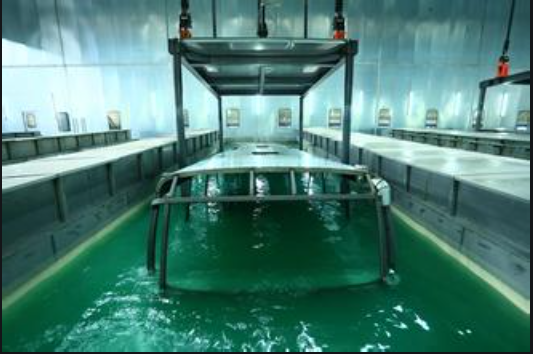

E-coating, also known as electrophoretic coating, electrodeposition coating, or electrocoating, is a surface treatment process that uses electrical current to deposit a thin, uniform organic coating onto a metal surface. It is widely used as a primer or base coat for caster brackets, particularly in applications where superior corrosion protection is required. The e-coating process involves immersing the caster bracket in a water-based solution containing the e-coat material (typically an epoxy or acrylic resin), and applying an electrical current that causes the coating material to deposit onto the metal surface. The process is self-limiting – as the coating builds up on the surface, the electrical resistance increases, causing the deposition to slow and eventually stop, resulting in a very uniform coating thickness even on complex geometries with recesses, edges, and holes.

The e-coating process typically involves several steps: pretreatment (thorough cleaning, rinsing, and phosphating of the bracket to ensure proper adhesion and corrosion protection), e-coating (immersing the bracket in the e-coat bath and applying electrical current to deposit the coating), post-rinsing (rinsing off excess coating material to ensure a smooth, uniform finish), and curing (heating the coated bracket in an oven to cure the coating and cross-link the resin). The key advantages of e-coating include: exceptional coverage and uniformity, with the ability to coat complex geometries, recesses, edges, and holes uniformly – something that is difficult to achieve with spray coatings; excellent corrosion protection, with e-coated brackets often able to withstand hundreds or thousands of hours of salt spray exposure without red rust, particularly when used as a primer under a powder coat topcoat; thin, consistent coating thickness (typically 15-30 microns), which does not significantly affect the dimensions of the bracket; high material utilization efficiency, typically 95% or higher, with minimal waste; and environmental friendliness, with low VOC emissions and water-based chemistry. The main limitations of e-coating include: the requirement for immersion tanks and electrical systems, which adds equipment and process complexity; the limited color and finish options (e-coat is typically available in black, dark gray, or clear, and is most commonly used as a primer rather than a final finish); the requirement for a conductive substrate (the process only works on electrically conductive materials such as steel, stainless steel, or aluminum); and the potential for coating defects if the pretreatment or process parameters are not carefully controlled. E-coating is most commonly used as a primer or base coat under a powder coating topcoat, creating a multi-layer coating system that provides superior corrosion protection compared to powder coating alone. This e-coat + powder coat system is the gold standard for caster brackets in demanding applications such as automotive, outdoor equipment, and corrosive industrial environments. E-coating can also be used as a standalone finish for applications where a black or dark gray finish is acceptable and where maximum corrosion protection is required. By using e-coating as part of a multi-layer coating system, premium caster manufacturers significantly enhance the corrosion resistance and service life of their brackets, ensuring long-term performance even in demanding environments.

Zinc Plating and Conversion Coatings

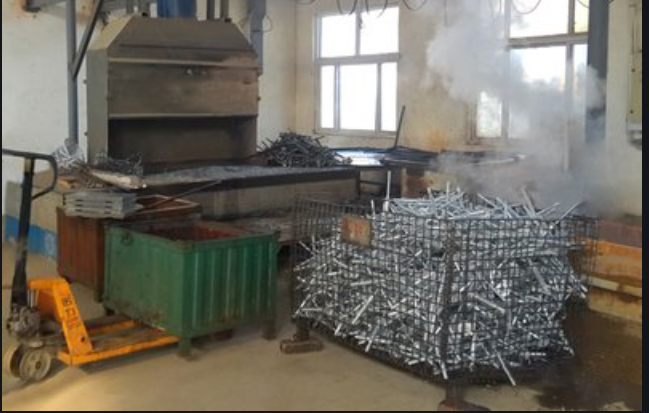

Zinc plating, also known as galvanizing (when referring to electroplating rather than hot-dip galvanizing), is a surface treatment process that applies a thin layer of zinc to the steel surface via electroplating. It is a widely used surface treatment for caster brackets, hardware, and components, providing corrosion protection through both barrier protection (the zinc layer physically separates the steel from the environment) and sacrificial protection (the zinc corrodes preferentially to the steel, even if the coating is scratched or damaged, as long as the zinc is in electrical contact with the steel). Zinc plating is typically followed by a chromate or passivation conversion coating to further enhance corrosion protection and provide a colored finish.

The zinc plating process involves several steps: pretreatment (cleaning, pickling, and rinsing the bracket to remove dirt, oil, rust, and oxides), zinc electroplating (immersing the bracket in a zinc plating solution and applying electrical current to deposit a thin layer of zinc onto the steel surface), post-treatment (rinsing and applying a chromate or passivation conversion coating to enhance corrosion protection and provide color), and drying. The zinc coating thickness is typically 5-25 microns, depending on the application and required corrosion protection. The chromate conversion coating is available in several colors: clear (blue/white), yellow (gold/iridescent), black, and olive drab (green), with the color generally corresponding to the level of corrosion protection (yellow and black typically offer better protection than clear). In recent years, due to environmental and health concerns about hexavalent chromium (Cr VI) in traditional chromate coatings, many manufacturers have switched to trivalent chromium (Cr III) passivation coatings or chromium-free passivation coatings that provide comparable corrosion protection without the environmental and health concerns. The key advantages of zinc plating include: excellent corrosion protection through both barrier and sacrificial mechanisms; relatively low cost compared to other coating processes; thin coating that does not significantly affect dimensions; good conductivity (the zinc coating remains electrically conductive, which can be useful for grounding or electrical applications); and the ability to plate complex geometries with good coverage. The main limitations of zinc plating include: the potential for hydrogen embrittlement (the plating process can introduce hydrogen into high-strength steel, which can cause brittle failure if not properly baked out); the limited aesthetic appeal compared to powder coating (zinc plating with chromate has a metallic, industrial appearance); the environmental and health concerns associated with traditional hexavalent chromate coatings; and the potential for white rust (zinc oxide) formation if the plating is not properly passivated or if it is exposed to moisture before the passivation layer has fully cured. Zinc plating is commonly used for caster brackets, hardware, axles, fasteners, and components where a functional, corrosion-resistant finish is required and where the aesthetic appeal of powder coating is not necessary. It is particularly popular for components that will be assembled inside equipment or that are not visible in the final product. Zinc plating is also used as a base for paint or powder coating in some applications, as the zinc provides excellent corrosion protection while the topcoat provides color and additional protection. By carefully controlling the plating process, using modern trivalent or chromium-free passivation, and applying proper baking to prevent hydrogen embrittlement, premium caster manufacturers ensure that their zinc-plated components provide reliable, long-lasting corrosion protection without the environmental and health concerns of older plating technologies.

Anodizing for Aluminum and Specialty Treatments

For aluminum caster brackets, anodizing is the most common and effective surface treatment, providing excellent corrosion resistance, wear resistance, and the ability to dye the surface in various colors. Anodizing is an electrochemical process that converts the aluminum surface into a thick, hard, and durable aluminum oxide layer, which is integral to the aluminum substrate (not just a coating applied on top) and provides excellent protection against corrosion and wear. The anodizing process involves cleaning the aluminum bracket, immersing it in an acid electrolyte solution (typically sulfuric acid), and applying an electrical current that causes oxygen to be released at the aluminum surface, forming the aluminum oxide layer. The resulting oxide layer is porous and can be dyed in various colors before being sealed to close the pores and lock in the color.

The key advantages of anodizing for aluminum caster brackets include: excellent corrosion resistance, with the hard oxide layer protecting the aluminum from oxidation and corrosion in most environments; excellent wear resistance and hardness, with the anodized surface being much harder than the bare aluminum and resistant to scratching and abrasion; the ability to dye the surface in a wide range of colors, providing aesthetic flexibility; good adhesion for paints and adhesives (the porous anodized surface provides excellent mechanical adhesion for subsequent coatings); and environmental friendliness, with the anodizing process producing minimal hazardous waste compared to other coating processes. The main limitations of anodizing include: it can only be applied to aluminum (and some other non-ferrous metals), not to steel; the process is more expensive than simple painting or powder coating; the color can fade over time with prolonged UV exposure (particularly for organic dyes); and the oxide layer is non-conductive, which can be a disadvantage for applications requiring electrical conductivity. For the most demanding applications, hard anodizing (also known as hardcoat anodizing) can be used, which produces a much thicker (typically 25-75 microns) and harder oxide layer with exceptional wear resistance and corrosion protection. Hard anodizing is typically used in industrial and military applications where maximum durability is required. In addition to anodizing for aluminum, there are several specialty surface treatments used for specific caster bracket applications. Hot-dip galvanizing involves immersing the steel bracket in a bath of molten zinc, producing a thick, robust zinc coating with exceptional corrosion protection for outdoor and highly corrosive applications. Thermal spray coating (such as zinc or aluminum flame spray or arc spray) applies a metallic coating to the steel surface using a thermal spray process, providing excellent corrosion protection for large or heavy components. PVD (physical vapor deposition) coatings such as titanium nitride (TiN) or chromium nitride (CrN) provide extremely hard, wear-resistant, and corrosion-resistant coatings for critical components. Anti-microbial coatings incorporate anti-microbial agents (such as silver or copper) into the coating to inhibit the growth of bacteria, fungi, and other microorganisms, making them suitable for healthcare, food service, and other hygiene-sensitive applications. By selecting the appropriate surface treatment for the specific bracket material and application requirements, caster manufacturers can ensure that their brackets provide optimal corrosion protection, wear resistance, and aesthetic appeal for the intended use environment.

Surface Treatment Selection and Conclusion

Selecting the right surface treatment for caster brackets requires careful consideration of several key factors to ensure optimal performance, durability, and cost-effectiveness for the specific application. The first and most important factor is the operating environment, particularly the level of corrosion risk from moisture, chemicals, salt, and other corrosive substances. For indoor, dry environments with minimal corrosion risk, a basic powder coating may be sufficient. For moderately corrosive environments (such as warehouses with occasional moisture exposure or outdoor use under cover), a powder coating with proper pretreatment or an e-coat + powder coat system may be appropriate. For highly corrosive environments (such as food processing with frequent washdown, chemical processing, marine exposure, or prolonged outdoor exposure), a more robust system such as e-coat + powder coat, hot-dip galvanizing, or stainless steel brackets may be required.

The second factor is the aesthetic requirements, including whether the caster will be visible in the final product and whether a specific color or finish is desired. Powder coating offers the widest range of colors and finishes and is the best choice when aesthetic appeal is important. Zinc plating offers a functional, metallic appearance that is suitable for components that are not visible or where aesthetics are not a priority. E-coating is typically available only in black, dark gray, or clear and is most commonly used as a primer rather than a final finish. The third factor is the wear and abrasion resistance requirements, including whether the bracket will be exposed to frequent contact, abrasion, or impact during use. Powder coating provides good wear resistance, while hard anodizing (for aluminum) and PVD coatings provide exceptional wear resistance for the most demanding applications. The fourth factor is the cost, including both the initial surface treatment cost and the total cost of ownership (including the impact on service life, maintenance, and replacement). Powder coating is generally the most cost-effective option for most applications, while e-coat + powder coat, hot-dip galvanizing, and specialty treatments are more expensive but provide superior protection and longer service life in demanding environments. The fifth factor is the environmental and regulatory considerations, including whether the surface treatment process uses hazardous substances (such as hexavalent chromium) that may be restricted by environmental regulations. Modern surface treatment processes such as powder coating, e-coating, trivalent chromium passivation, and chromium-free treatments offer more environmentally friendly alternatives to older processes. By carefully evaluating all of these factors and selecting the appropriate surface treatment for the specific application, caster manufacturers and purchasers can ensure that the brackets provide optimal corrosion protection, wear resistance, aesthetic appeal, and value over their service life.

In conclusion, the surface treatment of caster brackets is a critical manufacturing process that significantly affects the appearance, corrosion resistance, wear resistance, and service life of the caster. From powder coating, the most popular and versatile finish offering a wide range of colors and excellent durability, to e-coating, the superior corrosion protection primer that provides exceptional coverage on complex geometries, to zinc plating, the cost-effective sacrificial corrosion protection for hardware and components, to anodizing for aluminum brackets and various specialty treatments for demanding applications, each surface treatment technology offers unique characteristics, advantages, and limitations that make it suitable for specific applications. By understanding the differences between these surface treatment technologies and carefully evaluating the specific requirements of the application – including the operating environment, aesthetic requirements, wear resistance needs, cost constraints, and environmental considerations – caster manufacturers and purchasers can select the right surface treatment to ensure optimal performance, durability, and value. Investing in high-quality surface treatment is an investment in the long-term performance and appearance of the caster, and it can significantly extend the service life of the bracket while reducing maintenance and replacement costs. Whether selecting a standard powder coating for a general-purpose industrial caster or a specialized e-coat + powder coat system for a highly corrosive food processing application, understanding the characteristics and applications of caster bracket surface treatment technologies is the key to making an informed decision that ensures optimal performance and value.
