Caster Bracket Material: Understand the characteristics of different materials to select the most suitable bracket.

Caster bracket, as the key component supporting and connecting the casters, the choice of material directly affects the load capacity, durability, and service life of the casters. Different bracket materials offer distinct advantages and limitations in terms of strength, weight, corrosion resistance, cost, and suitability for specific environments. This article provides a comprehensive analysis of caster bracket materials, examining the characteristics, advantages, limitations, and typical applications of the most common bracket materials to help purchasers make informed decisions.

Introduction to Caster Bracket Materials

The caster bracket, also known as the caster yoke or fork, is the structural component of a caster that connects the wheel to the mounting plate or stem and supports the load. It is one of the most critical components of a caster, as it must safely support the full load of the equipment while providing a stable platform for the wheel and swivel mechanism. The material used for the caster bracket directly determines the caster’s load capacity, structural strength, durability, weight, corrosion resistance, and suitability for different operating environments. Selecting the right bracket material is therefore one of the most important decisions in caster selection, as it affects both the safety and the total cost of ownership of the caster system.

Caster brackets are subjected to a variety of stresses and forces during operation, including static loads from the weight of the equipment and cargo, dynamic loads from starting, stopping, and turning, impact loads from collisions and drops, and environmental stresses from moisture, chemicals, temperature extremes, and corrosion. The bracket material must be able to withstand all of these stresses without bending, breaking, or degrading, while also providing a stable platform for the wheel and swivel mechanism. There are several materials commonly used for caster brackets, each with its own unique combination of properties, advantages, and limitations. The most common bracket materials include carbon steel (the most widely used), stainless steel (for corrosion resistance), aluminum (for lightweight applications), and various specialty materials for specific applications. In this article, we will analyze each of these bracket materials in detail, examining their characteristics, advantages, limitations, typical applications, and selection considerations to help purchasers and users make informed decisions about caster bracket material selection.

Carbon Steel: The Most Common Bracket Material

Carbon steel is by far the most common and widely used material for caster brackets, accounting for the majority of caster brackets produced worldwide. Its popularity stems from its excellent combination of high strength, good toughness, excellent durability, reasonable cost, and wide availability. Carbon steel brackets provide the structural strength needed to support heavy loads without bending or deforming, and they can be easily fabricated, welded, and finished to meet specific design requirements. For light, medium, heavy, and even extra-heavy-duty caster applications, carbon steel is the material of choice for brackets, as it can safely support loads ranging from a few kilograms to tens of thousands of kilograms per caster, depending on the bracket design and thickness.

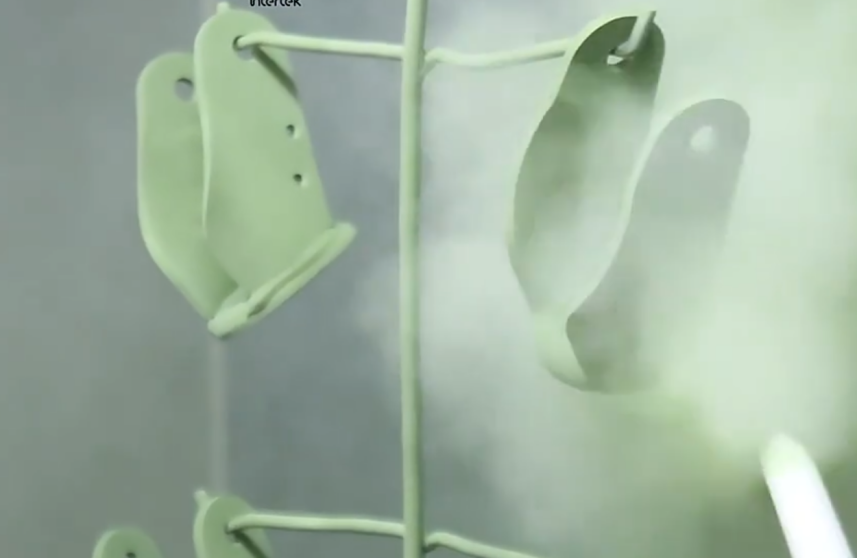

Carbon steel caster brackets are typically fabricated from steel sheet or plate that is cut, bent, and welded into the desired bracket shape. The thickness of the steel used for the bracket depends on the load capacity requirement, with light-duty casters using thinner steel (typically 1/8 inch or 3 mm) and heavy-duty casters using thicker steel (typically 1/4 inch or 6 mm or more for extra-heavy-duty applications). The bracket may be a one-piece stamped or formed design (for lighter duty applications) or a welded fabrication (for heavier duty applications where additional strength is needed). Carbon steel brackets are typically finished with various surface treatments to enhance corrosion resistance and appearance, including powder coating (the most common, offering excellent durability, a wide range of colors, and good corrosion protection), zinc plating (providing good corrosion protection through a sacrificial zinc layer), chrome plating (offering a decorative, highly corrosion-resistant finish), and e-coating (providing excellent coverage and corrosion protection, often used as a primer under powder coating). The key advantages of carbon steel brackets include: high strength and load capacity, making them suitable for the widest range of applications; excellent toughness and impact resistance, with the ability to withstand shocks and impacts without breaking; good formability and weldability, allowing for complex bracket designs and easy fabrication; wide availability and low cost, making them the most economical option for most applications; and proven performance and reliability, with decades of successful use in caster applications. The main limitations of carbon steel brackets include: susceptibility to corrosion and rust, requiring protective finishes and making them unsuitable for highly corrosive environments without proper protection; significant weight, making them heavier than aluminum or plastic brackets; and the need for periodic inspection and maintenance to ensure that the protective finish remains intact and that corrosion does not develop. Carbon steel brackets are ideal for the vast majority of caster applications, including industrial carts, warehouse equipment, material handling systems, workstations, furniture, and general-purpose casters. They are the default choice for caster brackets and are suitable for virtually any application where extreme corrosion resistance or extreme lightweight is not required.

Stainless Steel: For Corrosion Resistance and Hygiene

Stainless steel is a specialized bracket material used in caster applications requiring exceptional corrosion resistance, hygiene, and cleanability. Stainless steel brackets offer superior resistance to rust, corrosion, and chemical attack compared to carbon steel, making them suitable for use in highly corrosive environments, wet environments, and applications requiring frequent washdown or sanitization. While stainless steel brackets are significantly more expensive than carbon steel brackets, their exceptional corrosion resistance and long service life in demanding environments make them a cost-effective choice for applications where carbon steel would quickly corrode and fail.

Stainless steel caster brackets are typically fabricated from austenitic stainless steel, with 304 stainless steel being the most common grade and 316 stainless steel being used for more demanding corrosive environments. 304 stainless steel (also known as 18/8 stainless steel) contains approximately 18% chromium and 8% nickel, providing excellent corrosion resistance for most general-purpose corrosive applications. 316 stainless steel contains additional molybdenum (approximately 2-3%) in addition to chromium and nickel, providing superior corrosion resistance, particularly against chlorides and saltwater, making it suitable for marine, chemical, and highly corrosive environments. Stainless steel brackets are typically fabricated in a similar manner to carbon steel brackets (cut, bent, and welded), but they require more specialized fabrication techniques due to the higher hardness and lower thermal conductivity of stainless steel. They are typically used with a natural (mill) finish or a polished finish for aesthetic or hygienic reasons, and they do not require additional protective coatings (as the chromium content in stainless steel provides a self-healing passive oxide layer that prevents corrosion). The key advantages of stainless steel brackets include: exceptional corrosion resistance, with the ability to withstand exposure to water, moisture, chemicals, salt, and other corrosive substances without rusting or degrading; excellent cleanability and hygiene, with smooth, non-porous surfaces that are easy to clean and sanitize, making them suitable for food processing, pharmaceutical, and medical applications; high strength and load capacity comparable to carbon steel; excellent durability and long service life, with the ability to withstand harsh environments and frequent cleaning for many years; and an attractive, professional appearance with a clean, modern look. The main limitations of stainless steel brackets include: significantly higher cost, typically 3-5 times more expensive than equivalent carbon steel brackets; more difficult fabrication, requiring specialized tools and techniques; slightly lower strength than carbon steel for the same thickness (requiring slightly thicker material for equivalent load capacity); and potential for galling and seizing in threaded connections (requiring anti-galling compounds or special fasteners). Stainless steel brackets are essential for applications including: food and beverage processing and packaging (where frequent washdown with water and chemicals is required); pharmaceutical and biotech manufacturing (where strict hygiene and cleanroom standards must be met); medical and healthcare facilities (where equipment must be easily sanitized); marine and offshore applications (where exposure to saltwater and salt air is common); chemical processing and handling (where exposure to corrosive chemicals is likely); and any application where the caster will be exposed to moisture, chemicals, or corrosive environments that would cause carbon steel to rust. For these demanding applications, stainless steel brackets are the only viable option, and their higher cost is justified by their exceptional corrosion resistance, cleanability, durability, and long service life.

Aluminum: Lightweight and Corrosion-Resistant

Aluminum is a specialized bracket material used in caster applications where weight reduction is a primary concern. Aluminum brackets offer a high strength-to-weight ratio, good corrosion resistance, and attractive appearance, making them significantly lighter than carbon steel or stainless steel brackets while still providing adequate strength for many medium-duty applications. While aluminum brackets are not as strong as steel brackets and are more expensive than carbon steel brackets, their lightweight properties make them the preferred choice for applications where the weight of the caster and equipment is a critical factor, such as portable equipment, aerospace applications, and equipment that needs to be frequently lifted or transported.

Aluminum caster brackets are typically fabricated from aluminum alloy (often 6061 or 6063 aluminum alloy, which offer a good balance of strength, formability, and corrosion resistance). They may be fabricated by cutting, bending, and welding aluminum sheet or plate (similar to steel brackets), or they may be die-cast or extruded for specific applications. Aluminum brackets are typically used with a natural (mill) finish, an anodized finish (for enhanced corrosion resistance and appearance), or a powder-coated finish (for additional protection and color options). The key advantages of aluminum brackets include: significant weight reduction, typically 30-50% lighter than equivalent carbon steel brackets, which can significantly reduce the overall weight of the equipment and make it easier to maneuver, lift, and transport; good corrosion resistance, with the ability to withstand exposure to moisture and many chemicals without rusting (although not as corrosion-resistant as stainless steel in highly corrosive environments); attractive appearance, with a clean, modern look that is suitable for public-facing and aesthetically sensitive applications; good thermal conductivity, which can be beneficial for certain applications; and non-sparking properties, making them suitable for certain hazardous environments. The main limitations of aluminum brackets include: lower load capacity and strength compared to steel, making them generally unsuitable for heavy-duty and extra-heavy-duty applications; higher cost than carbon steel, typically 2-3 times more expensive; lower impact resistance and rigidity compared to steel, with a greater tendency to dent or deform under heavy impacts or overloading; more difficult and expensive to weld and fabricate compared to carbon steel; and potential for galvanic corrosion when in contact with dissimilar metals in wet environments (requiring isolation or protective measures). Aluminum brackets are ideal for medium-duty applications where weight reduction is important, including: portable carts and equipment that need to be frequently lifted, loaded into vehicles, or transported between locations; aerospace and aviation equipment (where weight reduction is critical for fuel efficiency and performance); medical and healthcare equipment (where equipment may need to be moved frequently by staff); retail and commercial equipment (where aesthetics and ease of movement are important); office and institutional equipment (where lightweight, attractive casters are desired); and outdoor and marine applications (where aluminum’s corrosion resistance is beneficial). For these applications, aluminum brackets provide an excellent combination of lightweight, corrosion resistance, and appearance that cannot be matched by carbon steel brackets, making them the preferred choice despite their higher cost and lower load capacity.

Other Bracket Materials and Specialty Applications

In addition to the three main bracket materials discussed above (carbon steel, stainless steel, and aluminum), there are several other materials used for caster brackets in specific or specialty applications. While these materials represent a small fraction of the overall caster bracket market, they play important roles in their respective niches and demonstrate the versatility and adaptability of caster technology to meet specialized requirements.

One such material is ductile iron (also known as nodular cast iron), which is used for some heavy-duty and extra-heavy-duty caster brackets. Ductile iron offers excellent strength, toughness, and vibration damping properties, and it can be cast into complex shapes that would be difficult or expensive to fabricate from steel. It is used in some heavy-duty industrial caster applications where its combination of strength, toughness, and castability offers advantages over fabricated steel brackets. Another material is cast iron, which is used for some traditional or heavy-duty caster brackets. Cast iron offers good compressive strength and vibration damping but is more brittle than steel or ductile iron, making it less suitable for impact-prone applications. It is primarily used in some traditional or specialty caster designs. Plastic and composite materials are used for some light-duty caster brackets, particularly in furniture, office, and consumer applications. Plastic brackets offer very low weight, excellent corrosion resistance, attractive appearance, and low cost, but they have limited load capacity and are not suitable for heavy-duty or industrial applications. They are commonly used on office chair casters, furniture casters, and light-duty consumer casters. Brass and bronze are used for some specialty caster brackets, particularly in decorative, marine, or non-sparking applications. Brass and bronze offer excellent corrosion resistance, attractive appearance, and non-sparking properties, but they are expensive and have lower strength than steel, making them suitable only for light-duty or specialty applications. For extreme temperature applications, special high-temperature alloys (such as Inconel or Hastelloy) may be used for caster brackets that must operate at temperatures that would degrade or weaken standard materials. These specialty alloys offer exceptional high-temperature strength and corrosion resistance but are extremely expensive and are used only in the most demanding high-temperature applications. For cleanroom and semiconductor applications, special low-outgassing and particle-free materials and finishes may be used for caster brackets to meet the strict cleanliness requirements of these environments. While these specialty bracket materials are not commonly used, they demonstrate that caster technology can be adapted to meet even the most demanding and specialized application requirements, and that there is a bracket material solution for virtually every caster application need.

Bracket Material Selection Guide and Conclusion

Selecting the right caster bracket material requires careful consideration of several key factors to ensure optimal performance, durability, and cost-effectiveness for the specific application. The first and most important factor is the load capacity requirement. The bracket material must have sufficient strength to safely support the maximum expected load (including static, dynamic, and impact loads) with an appropriate safety factor. Carbon steel and stainless steel offer the highest load capacities, aluminum offers medium load capacity, and plastic/composite materials offer light load capacity only. The second factor is the operating environment, particularly the presence of corrosive substances, moisture, chemicals, temperature extremes, and cleanliness requirements. Carbon steel requires protective finishes and is not suitable for highly corrosive environments; stainless steel offers exceptional corrosion resistance and is suitable for the most demanding corrosive and hygienic environments; aluminum offers good corrosion resistance for moderate environments; and plastic offers excellent corrosion resistance but limited load capacity.

The third factor is the weight requirement, including whether the caster and equipment need to be lightweight for portability, ease of movement, or performance reasons. Aluminum offers the best strength-to-weight ratio for medium-duty applications, while carbon steel and stainless steel are heavier but stronger. The fourth factor is the aesthetic and appearance requirements, including whether the caster will be visible in a public-facing or aesthetically sensitive environment. Stainless steel, aluminum, and plastic offer attractive, modern appearances, while carbon steel with a quality powder coat finish can also be visually appealing. The fifth factor is the cost, including both the initial bracket cost and the total cost of ownership (including maintenance, replacement, and the impact on equipment performance). Carbon steel is the most economical for most applications, aluminum is moderately more expensive, and stainless steel is the most expensive but offers the longest service life in corrosive environments. The sixth factor is the availability and lead time, including whether the bracket material and configuration are readily available from stock or require custom fabrication with longer lead times. Carbon steel brackets are the most widely available, while stainless steel and aluminum brackets may have longer lead times, particularly for custom configurations. By carefully evaluating all of these factors and selecting the appropriate bracket material for the specific application, users can ensure that their casters provide optimal performance, durability, and value over their service life.

In conclusion, the caster bracket is a critical component that directly affects the load capacity, durability, and suitability of a caster for specific applications. From carbon steel, the most common and economical bracket material offering excellent strength and versatility, to stainless steel, the premium choice for corrosion resistance and hygiene, to aluminum, the lightweight option for portable and weight-sensitive applications, to various specialty materials for extreme or niche applications, each bracket material offers unique characteristics, advantages, and limitations that make it suitable for specific applications. By understanding the differences between these bracket materials and carefully evaluating the specific requirements of the application – including load capacity, operating environment, weight requirements, aesthetics, cost, and availability – purchasers and users can select the right bracket material to optimize caster performance and ensure safe, efficient, and reliable operation. Investing in the right bracket material for the application is an investment in the performance, safety, and longevity of the entire caster system, and it can provide significant long-term benefits in terms of extended service life, minimized maintenance, and improved overall productivity. Whether selecting a standard carbon steel bracket for a general-purpose industrial caster or a specialized stainless steel bracket for a food processing washdown application, understanding the characteristics and applications of caster bracket materials is the key to making an informed decision that ensures optimal performance and value.
