Are the brake wheels universal?

When selecting casters for equipment, one common question that arises is whether brake wheels are universal – that is, whether a caster with a brake from one manufacturer can be used interchangeably with a caster from another manufacturer, or whether brakes are compatible across different caster types and sizes. The answer to this question is nuanced, as it depends on several factors including the type of brake, the caster configuration, the mounting dimensions, and the specific application requirements. This article provides a comprehensive analysis of whether brake wheels are universal, examining the different types of caster brakes, their compatibility, and the factors that determine whether a brake caster can be used interchangeably with another.

Introduction to Caster Brakes

Why Brakes Matter for Safety and Productivity

Caster brakes are mechanisms that allow the caster to be locked in place, preventing the equipment from moving when it needs to remain stationary. Brakes are an important feature for many types of equipment, including workstations, medical carts, furniture, material handling equipment, and industrial machinery, where unintended movement could pose a safety hazard, affect productivity, or cause damage. Without brakes, equipment on casters could drift or roll due to floor slope, vibration, accidental contact, or other forces, creating potential safety risks and operational inconveniences.

There are several types of caster brakes available, each with its own design, operation, and suitable applications. The most common types include single brakes (also known as wheel locks or tread locks), which lock only the wheel rotation; double brakes (also known as total locks), which lock both the wheel rotation and the swivel mechanism; and directional locks (also known as four-position swivel locks), which lock the swivel in one of four positions while allowing the wheel to roll freely. In addition to these common types, there are also specialty brakes such as face contact brakes, cam brakes, pedal brakes, and remote-controlled brakes, each designed for specific applications or operating preferences. With such a wide variety of brake types, configurations, and manufacturers, the question of whether brake wheels are universal is an important one for purchasers, maintenance personnel, and equipment designers who may need to replace or upgrade casters on existing equipment. In this article, we will analyze the different types of caster brakes, their compatibility and interchangeability, and the factors that determine whether a brake caster can be used as a universal replacement for another.

Types of Caster Brakes and Their Characteristics

Single, Double, and Directional Brake Comparison

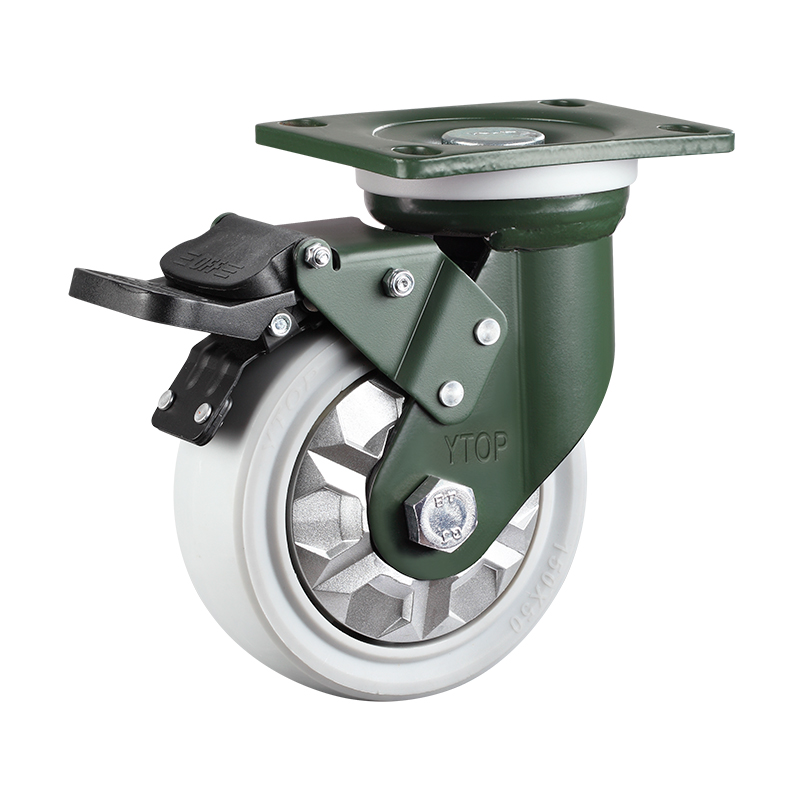

To understand whether brake wheels are universal, it is first necessary to understand the different types of caster brakes and their characteristics. The first and most common type is the single brake, also known as a wheel lock, tread lock, or wheel brake. A single brake locks only the rotation of the caster wheel, preventing the caster from rolling, but still allows the caster to swivel (rotate 360 degrees around the vertical axis). Single brakes are typically operated by a foot pedal or lever that presses a brake pad against the wheel tread or hub, creating friction that prevents the wheel from rotating. Single brakes are simple, reliable, and relatively inexpensive, making them the most common type of caster brake. They are suitable for applications where preventing rolling is the primary concern and where some pivoting or movement of the equipment is acceptable or even desirable.

The second common type is the double brake, also known as a total lock, swivel and wheel lock, or dual brake. A double brake locks both the wheel rotation and the swivel mechanism simultaneously, completely immobilizing the caster and preventing both rolling and pivoting. Double brakes typically use a single foot pedal or lever that engages two separate locking mechanisms: one that locks the wheel (similar to a single brake) and one that locks the swivel mechanism (typically using a pin or plunger that engages with a notch or hole in the swivel raceway). Double brakes provide maximum stability and security, making them suitable for applications where the equipment needs to remain firmly in a fixed position and orientation, such as workstations, medical equipment, or industrial machinery. The third type is the directional lock, also known as a four-position swivel lock or swivel lock. A directional lock locks only the swivel mechanism, allowing the wheel to roll freely but preventing the caster from swiveling. Directional locks typically allow the swivel to be locked in one of four positions (straight ahead, straight back, left, or right) in addition to the free swivel position. Directional locks are useful for applications where the equipment needs to be moved in a straight line frequently, as locking the swivel in the straight-ahead position makes it easier to move the equipment in a straight line without the casters wandering or shimmying. In addition to these three main types, there are various specialty brakes including face contact brakes (which press a pad against the side of the wheel), cam brakes (which use a cam mechanism to apply braking force), pedal brakes (which are operated by a large pedal for easy foot operation), and remote-controlled brakes (which can be operated remotely via cable or electronic control). Each of these brake types has its own unique design, operation, and characteristics, which affects its compatibility and interchangeability with other brake types and caster configurations.

Are Brake Wheels Universal? The Short Answer

No, But Compatibility Is More Common Than You Think

The short answer to whether brake wheels are universal is: no, brake wheels are not universally interchangeable across all caster types, sizes, and manufacturers. While there are some standardization efforts and common configurations that allow for a degree of interchangeability, there are significant differences in brake types, mounting dimensions, caster configurations, and performance characteristics that mean a brake caster from one manufacturer or of one type cannot simply be replaced with a brake caster from another manufacturer or of another type without careful consideration and verification.

There are several reasons why brake wheels are not universal. First, there are different types of brakes (single, double, directional, specialty) that provide different levels of immobilization and are not interchangeable in terms of function. A single brake cannot provide the same level of stability as a double brake, and a directional lock cannot prevent rolling. Second, even within the same brake type, there are differences in mounting dimensions between manufacturers and caster series. The mounting plate dimensions, hole patterns, stem diameter and length, and overall height can vary significantly between different caster models and manufacturers, meaning that a caster from one manufacturer may not physically fit on equipment designed for casters from another manufacturer. Third, there are differences in caster configuration and geometry, including wheel diameter, tread width, swivel offset, overall height, and bracket design, which affect the caster’s performance, load capacity, and compatibility with the equipment. Fourth, there are differences in performance characteristics including load capacity, rolling resistance, noise level, durability, and environmental resistance, which mean that a caster that works well in one application may not be suitable for another. Fifth, there are differences in brake operation and ergonomics, including the position, size, and shape of the brake pedal or lever, the force required to engage and disengage the brake, and the mechanism of operation, which can affect usability and operator preference. While there are some industry standards and common configurations that facilitate a degree of interchangeability (particularly for standard mounting plate sizes and hole patterns), these standards do not cover all aspects of caster and brake design, and there remains significant variation between manufacturers and product lines. Therefore, it is essential to carefully verify compatibility before replacing or upgrading casters, rather than assuming that brake wheels are universal.

Factors That Determine Brake Caster Compatibility

Mounting Size, Brake Type, and Load Rating

When considering whether a brake caster can be used as a replacement for another, several key factors must be evaluated to determine compatibility. The first and most fundamental factor is the mounting configuration and dimensions. The caster must physically fit on the equipment, which requires matching the mounting type (top plate, stem, bolt hole, etc.) and the specific dimensions of that mounting type. For top plate casters, this includes the overall plate dimensions (length and width), the hole pattern (distance between holes horizontally and vertically), and the bolt hole size. For stem casters, this includes the stem diameter, stem length, and thread type (if threaded). If the mounting dimensions do not match, the caster will not physically fit on the equipment without modification, which may not be practical or desirable.

The second factor is the overall height of the caster, which is the distance from the floor to the bottom of the mounting plate (or to the top of the stem). The overall height must be compatible with the equipment, as a caster that is too tall or too short can affect the equipment’s level, stability, and ground clearance. When replacing casters, it is generally important to match the overall height of the original casters to maintain the equipment’s original height and level. The third factor is the wheel diameter and tread width, which affect the caster’s load capacity, rolling resistance, obstacle traversal ability, and overall height. While it is possible to use casters with different wheel diameters in some applications, significant differences in wheel diameter can affect performance and may require adjustment of other parameters. The fourth factor is the load capacity, which must be sufficient for the application. The replacement caster must have a load capacity rating that meets or exceeds the requirements of the application, with an appropriate safety factor. Using a caster with insufficient load capacity can lead to premature failure, safety hazards, and equipment damage. The fifth factor is the brake type and function, which must meet the application requirements. If the application requires a double brake (total lock), a single brake will not provide sufficient stability. If the application requires a directional lock for straight-line movement, a standard brake may not provide the desired functionality. The sixth factor is the environmental compatibility, including the floor conditions (smooth, rough, uneven, sloped), environmental factors (temperature, moisture, chemicals, UV exposure), and any special requirements (corrosion resistance, cleanroom compatibility, non-marking wheels, etc.). The seventh factor is the performance characteristics including rolling resistance, noise level, durability, and maintenance requirements, which should be compatible with the application and user expectations. By carefully evaluating all of these factors, purchasers and maintenance personnel can determine whether a particular brake caster is compatible with their equipment and application, or whether a different caster model or configuration is needed.

Standardization and Common Configurations

Industry Standards for Mounting Plates and Studs

While brake wheels are not universally interchangeable, there are some industry standards and common configurations that facilitate a degree of interchangeability, particularly for standard caster sizes and mounting configurations. One of the most important areas of standardization is mounting plate dimensions and hole patterns. Many caster manufacturers follow common industry standards for top plate dimensions and hole patterns for standard caster sizes, which means that a top plate caster of a given size from one manufacturer may physically fit on equipment designed for casters of the same size from another manufacturer. For example, a 4-inch medium-duty caster may commonly use a 4-inch by 4.5-inch top plate with a 2.5-inch by 3-inch hole pattern, and this configuration may be consistent across multiple manufacturers. Similarly, a 6-inch heavy-duty caster may commonly use a 5-inch by 7-inch top plate with a 3-inch by 5-inch hole pattern.

However, it is important to note that these common configurations are not universal standards, and there can be significant variation between manufacturers and product lines. Some manufacturers may use proprietary mounting configurations or non-standard hole patterns for their casters, particularly for specialty or heavy-duty models. Additionally, even when the mounting plate dimensions and hole patterns match, there may be differences in other parameters such as overall height, wheel diameter, swivel offset, load capacity, brake type, and performance characteristics that affect compatibility and performance. Another area of partial standardization is stem dimensions for stem casters, with common stem diameters and lengths being used across manufacturers for certain caster types and sizes. However, as with top plate configurations, there can be significant variation in stem dimensions, thread types, and mounting methods between manufacturers and product lines. In recent years, there have been efforts to increase standardization in the caster industry, particularly through industry organizations and standards bodies. However, complete standardization remains elusive due to the wide variety of caster types, sizes, configurations, and applications, and the competitive nature of the industry which encourages manufacturers to differentiate their products through proprietary designs and features. Therefore, while common configurations and partial standardization can facilitate interchangeability in some cases, it is always necessary to verify compatibility before replacing or upgrading casters, rather than relying on assumptions about standardization or universality.

Best Practices for Replacing or Upgrading Brake Casters

Step-by-Step Replacement Checklist

When replacing or upgrading brake casters on existing equipment, following best practices can help ensure compatibility, safety, and optimal performance. The first and most important best practice is to carefully measure and document the existing caster’s specifications before selecting a replacement. This includes measuring the mounting configuration (top plate dimensions, hole pattern, stem diameter and length), overall height, wheel diameter and width, brake type, and any other relevant specifications. Having accurate measurements of the existing caster makes it much easier to find a compatible replacement and avoids the guesswork that can lead to incompatible casters.

The second best practice is to consult with the caster manufacturer or supplier before making a purchase. Caster manufacturers and suppliers have extensive knowledge of their products and can provide valuable guidance on compatibility, replacement options, and suitable upgrades. They can also provide detailed specification sheets, dimensional drawings, and technical support to help verify compatibility. When consulting with a supplier, be sure to provide them with the measurements and specifications of the existing caster, as well as information about the application (load weight, floor conditions, environmental factors, brake requirements, etc.) so they can recommend the most suitable replacement. The third best practice is to consider upgrading to a higher-quality or better-suited caster when replacing, rather than simply replacing with an identical caster. If the existing casters have been problematic (e.g., premature wear, poor rolling, excessive noise, insufficient braking), this may be an opportunity to upgrade to a better caster that addresses these issues. However, any upgrade should be carefully evaluated for compatibility with the equipment and application. The fourth best practice is to replace all casters on the equipment at the same time, rather than replacing individual casters as they fail. Mixing old and new casters, or casters of different types or conditions, can lead to uneven loading, instability, and inconsistent performance. Replacing all casters at once ensures consistent performance and load distribution. The fifth best practice is to properly install and maintain the new casters according to the manufacturer’s recommendations. This includes using the correct mounting hardware, tightening to the recommended torque, verifying proper operation of the brake mechanism, and performing regular maintenance (inspection, lubrication, cleaning) as recommended. The sixth best practice is to test the equipment after caster replacement to verify proper operation, stability, and brake function before putting the equipment back into regular service. This includes checking that the equipment is level and stable, that the casters roll and swivel smoothly, and that the brakes engage and disengage properly and hold the equipment securely. By following these best practices, purchasers and maintenance personnel can ensure successful caster replacement or upgrade that provides safe, reliable, and optimal performance.

Conclusion: Brake Wheels Are Not Universal, But Can Be Properly Matched

In conclusion, brake wheels are not universal – they cannot be freely interchanged across all caster types, sizes, and manufacturers without careful consideration and verification. There are significant differences in brake types (single, double, directional, specialty), mounting configurations and dimensions, overall height, wheel size, load capacity, performance characteristics, and environmental compatibility that mean a brake caster from one manufacturer or of one type may not be suitable as a replacement for another. Assuming that brake wheels are universal can lead to incompatible casters that do not fit properly, do not perform as expected, or even create safety hazards.

However, while brake wheels are not universal, they can be properly matched to equipment and applications through careful measurement, consultation with suppliers, and verification of compatibility. There are some industry standards and common configurations that facilitate a degree of interchangeability, particularly for standard caster sizes and mounting plate dimensions, but these are not universal and should not be relied upon without verification. By following best practices for caster replacement – including carefully measuring existing casters, consulting with manufacturers or suppliers, considering appropriate upgrades, replacing all casters at once, proper installation and maintenance, and post-installation testing – purchasers and maintenance personnel can ensure successful caster replacement that provides safe, reliable, and optimal performance. When selecting brake casters, it is important to consider not only the physical compatibility (mounting dimensions, overall height, wheel size) but also the functional compatibility (brake type, load capacity, rolling resistance, noise level, durability) and the environmental compatibility (floor conditions, temperature, moisture, chemicals, special requirements). By taking a comprehensive approach to caster selection and replacement, organizations can ensure that their equipment has the right casters for the job, providing safe, efficient, and reliable material handling for years to come. In the end, while brake wheels may not be universal, the right knowledge and approach can make caster replacement a straightforward and successful process that improves equipment performance and safety.
