Low center of gravity casters: stable and durable, versatile for industrial and commercial use

What Are Low Center of Gravity Casters?

Low center of gravity (LCG) casters are specialized wheel assemblies designed with a lowered vertical profile that positions the load closer to the ground. This innovative design significantly improves stability, reduces tipping risks, and enhances handling characteristics for a wide range of material handling applications.

Design Principles of LCG Casters

The fundamental design principle behind low center of gravity casters is to minimize the distance between the load attachment point and the wheel’s contact point with the ground. This is achieved through:

• Compact wheel housing: Shorter fork legs reduce overall height
• Lowered mounting plate: The attachment point sits closer to the wheel axle
• Optimized wheel diameter: Balanced size for obstacle clearance vs. height reduction
• Reinforced structure: Despite compact size, maintains high load capacity

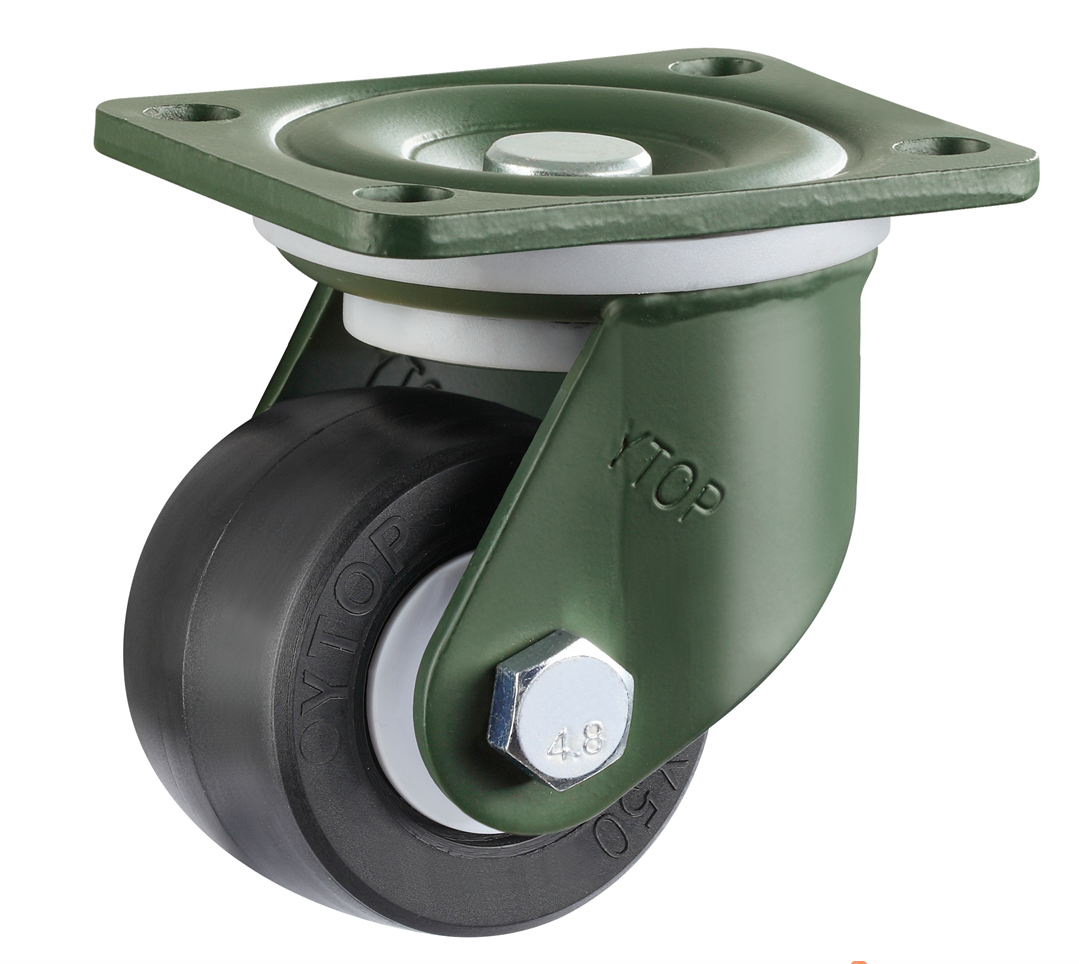

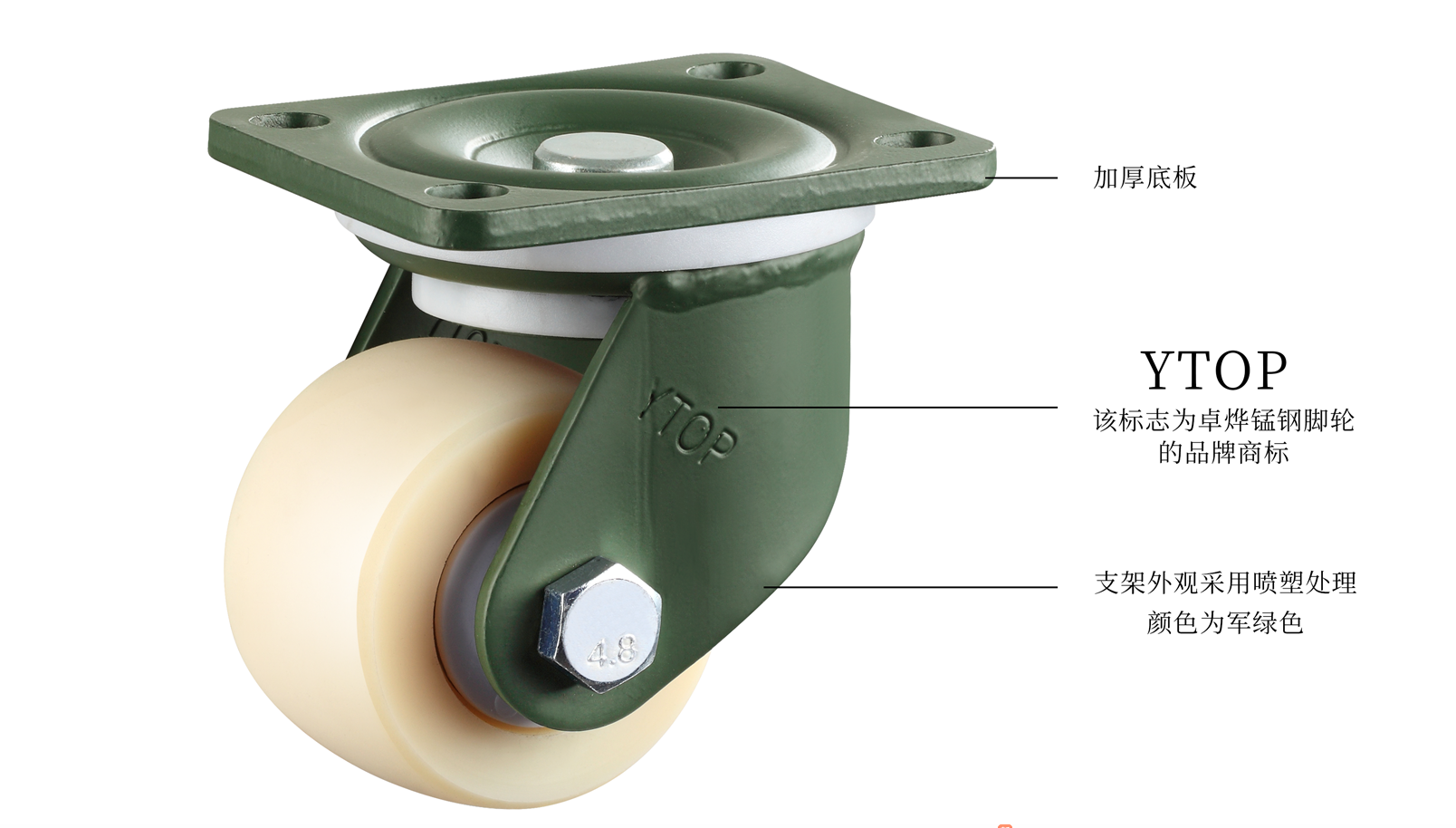

Key Components of LCG Casters

A typical low center of gravity caster consists of several precision-engineered components:

• Mounting plate: Four-hole attachment plate with lowered profile
• Swivel head: Ball bearing or kingpinless rotation mechanism
• Fork legs: Shortened, reinforced legs supporting the wheel
• Wheel: Polyurethane, nylon, or rubber wheel with appropriate hardness
• Axle and bearings: Precision components for smooth rotation
• Brake mechanism (optional): Total lock or directional lock options

Why Low Center of Gravity Matters

The center of gravity (CoG) of a loaded cart or equipment plays a critical role in its stability and handling characteristics. Understanding why a low CoG is beneficial helps explain the growing popularity of LCG casters.

Physics of Stability

Stability is fundamentally about the relationship between the center of gravity and the base of support. The key principles include:

• Lower CoG = greater stability: A lower center of gravity requires more force to tip the load beyond its base of support
• Wider base = more stability: LCG casters often allow for wider wheel placement
• Reduced tipping moment: The lever arm between CoG and tipping axis is shortened
• Improved dynamic stability: During movement, acceleration and deceleration create forces that are better managed with low CoG

Tipping Risk Reduction

One of the most significant benefits of LCG casters is the dramatic reduction in tipping risk. Tipping incidents can occur due to:

• Sudden stops or starts
• Turning at speed
• Hitting obstacles or thresholds
• Uneven floor surfaces
• Improper load distribution
• Ramps and inclined surfaces

By lowering the center of gravity, LCG casters increase the tipping angle required to cause a turnover, providing a greater safety margin in all these scenarios.

Enhanced Maneuverability

Low center of gravity casters improve maneuverability through several mechanisms:

• Reduced steering effort: Lower profile reduces the torque required to swivel the caster
• Better tracking: The load sits closer to the wheel axis, improving directional stability
• Quicker response: Changes in direction are transmitted more directly to the wheels
• Reduced sway: Lower CoG minimizes side-to-side rocking during movement

Advantages of Low Center of Gravity Casters

LCG casters offer numerous advantages that make them the preferred choice for many material handling applications.

1. Superior Stability

The primary advantage of LCG casters is unmatched stability. This is particularly important for:

• Top-heavy loads that are inherently prone to tipping
• Equipment with high centers of gravity
• Applications requiring frequent direction changes
• Environments with uneven floors or obstacles
• Safety-critical operations where tipping could cause injury or damage

2. Increased Load Capacity

Despite their compact size, LCG casters often feature higher load capacities than standard casters of similar wheel size. This is because:

• The lowered design distributes load more efficiently through the structure
• Shorter fork legs experience less bending moment
• Reinforced mounting plates handle higher stress
• Optimized bearing placement reduces point loading

Typical LCG caster load capacities range from 200 kg to over 1000 kg per caster, depending on size and construction.

3. Space Savings

The reduced height profile of LCG casters provides valuable space savings:

• Lower overall equipment height: Allows access to low-clearance areas
• More vertical load space: The saved height can be used for additional cargo capacity
• Improved ergonomics: Lower working heights reduce operator strain
• Better storage: Equipment can fit under shelves, workbenches, and other obstacles

4. Improved Safety

Safety is paramount in material handling, and LCG casters contribute significantly:

• Reduced tipping incidents prevent injuries and product damage
• Better control reduces collisions with personnel and equipment
• Stable loads are less likely to shift or fall during transport
• Improved braking performance due to better weight distribution
• Compliance with safety regulations and standards

5. Better Floor Protection

LCG casters often provide enhanced floor protection compared to standard casters:

• Lower profile reduces impact force when hitting obstacles
• Better weight distribution reduces point loading on floors
• Smoother rolling minimizes scuffing and marking
• Reduced vibration decreases floor wear over time

6. Noise Reduction

The stable, low-profile design of LCG casters contributes to quieter operation:

• Reduced vibration and rattling from stable loads
• Less impact noise when crossing thresholds
• Smoother swiveling reduces squeaking
• Better load distribution minimizes wheel noise

Common Applications of LCG Casters

Low center of gravity casters find applications across numerous industries where stability and safe handling are critical.

Industrial and Manufacturing

In industrial environments, LCG casters are used for:

• Heavy tool carts and die carts
• Work-in-progress material transport
• Assembly line fixtures and workstations
• Machine bases and equipment stands
• Raw material storage and transport
• Finished goods handling

The high load capacity and stability make LCG casters ideal for moving heavy industrial equipment and materials safely.

Automotive Industry

Automotive manufacturing and repair facilities benefit from LCG casters on:

• Engine stands and transmission jacks
• Parts carts and component bins
• Tool chests and service carts
• Vehicle positioning dollies
• Assembly line material delivery
• Inspection and testing equipment

Aerospace and Aviation

In aerospace applications, precision and stability are paramount:

• Aircraft component transport carts
• Engine maintenance stands
• Tooling and fixture movement
• Cleanroom equipment
• Avionics test benches
• Ground support equipment

Medical and Healthcare

Healthcare facilities require stable, quiet, and hygienic caster solutions:

• Medical equipment carts and stands
• Surgical instrument tables
• Patient transport aids
• Laboratory equipment bases
• Pharmacy dispensing carts
• Imaging equipment mobility

The stability of LCG casters is critical for sensitive medical equipment and patient safety.

Retail and Commercial

Retail and commercial environments use LCG casters for:

• Display racks and shelving units
• Point-of-sale equipment
• Stockroom transport carts
• Food service equipment
• Office furniture and workstations
• Hospitality service carts

Warehousing and Logistics

In warehouses and distribution centers, LCG casters improve efficiency and safety:

• Order picking carts
• Inventory transport trolleys
• Packing station equipment
• Shipping and receiving carts
• Storage rack mobility
• Cross-docking equipment

How to Choose the Right LCG Caster

Selecting the appropriate low center of gravity caster requires careful consideration of several factors to ensure optimal performance and safety.

1. Load Capacity Calculation

Determine the required load capacity by:

1. Calculating the total weight of the equipment plus maximum load
2. Adding a safety factor of 25-50% for dynamic loads
3. Dividing by the number of casters (typically 4)
4. Selecting casters with capacity exceeding this calculated value

Example: A 500 kg cart with 4 casters requires 125 kg per caster minimum. With 50% safety factor, select casters rated for at least 188 kg each.

2. Wheel Material Selection

Choose wheel material based on application requirements:

3. Wheel Size Considerations

LCG caster wheel sizes typically range from 75mm to 150mm. Consider:

• 75mm (3″): Lowest profile, light to medium loads, smooth floors
• 100mm (4″): Most popular, medium loads, general purpose
• 125mm (5″): Better obstacle clearance, medium-heavy loads
• 150mm (6″): Maximum obstacle clearance, heavy loads

Larger wheels provide better obstacle rolling but increase overall height. Balance height reduction with floor conditions.

4. Swivel vs. Rigid Configuration

Determine the appropriate caster configuration:

• 4 swivel casters: Maximum maneuverability, can move in any direction, crab walk capability
• 2 swivel + 2 rigid: Good tracking for straight-line movement, standard configuration
• 2 swivel + 2 swivel with brakes: Maximum control with parking capability
• All rigid: Only for straight-line dedicated transport

5. Brake Options

Select appropriate braking mechanisms:

• Total lock brake: Locks both wheel rotation and swivel, most secure
• Directional lock: Locks swivel only, allows straight-line tracking
• Wheel brake: Locks wheel rotation only
• Face contact brake: Lifts wheel slightly, maximum stability when parked

6. Mounting Type

Choose the appropriate mounting method:

• Plate mount: Most common, four-hole rectangular plate
• Stem mount: Threaded stem or grip neck for specific applications
• Hole mount: Single center bolt hole
• Weld mount: For permanent attachment to steel frames

Installation Best Practices

Proper installation of LCG casters ensures optimal performance and longevity.

Pre-Installation Preparation

Before installing LCG casters:

1. Verify caster specifications match load and application requirements
2. Inspect casters for any shipping damage or defects
3. Ensure mounting surface is flat, clean, and structurally sound
4. Check that bolt holes align with caster mounting plate
5. Have appropriate tools and hardware ready

Installation Steps

Follow these steps for proper plate mount caster installation:

1. Position the caster: Place the mounting plate in the desired location, ensuring adequate clearance for swiveling
2. Mark hole positions: Use the plate as a template to mark drilling locations
3. Drill pilot holes: Drill appropriate size holes for the mounting bolts
4. Apply thread locker: Use medium-strength thread locker on bolt threads to prevent loosening
5. Install bolts: Insert bolts through mounting plate and equipment frame
6. Secure with nuts: Attach washers and nuts, tighten to manufacturer’s torque specification
7. Verify movement: Check that caster swivels freely and wheel rotates smoothly
8. Test load: Apply test load to verify stability and proper weight distribution

Installation Tips

• Ensure all four casters are at the same height to prevent rocking
• Allow adequate clearance between wheels and equipment body for swiveling
• Use reinforcing plates on thin or flexible mounting surfaces
• Consider using lock washers or nylon insert nuts for vibration resistance
• Follow manufacturer’s torque specifications to avoid stripping or over-tightening

Maintenance and Care

Regular maintenance ensures LCG casters provide long-term reliable performance.

Daily/Weekly Maintenance

• Visual inspection for damage or excessive wear
• Remove debris, threads, and material wrapped around wheels
• Check that wheels rotate freely without binding
• Verify swivel action is smooth
• Ensure mounting bolts are tight
• Test brake functionality

Monthly Maintenance

• Clean caster assemblies with mild detergent and water
• Inspect wheel tread for flat spots, cracks, or chunks
• Check fork legs for bending or cracking
• Verify mounting plate is securely attached
• Lubricate swivel bearings per manufacturer recommendation
• Check axle bolts and nuts for tightness

Quarterly/Annual Maintenance

• Complete disassembly and inspection of all components
• Replace worn bearings, bushings, or seals
• Check wheel hardness and elasticity (for polyurethane/rubber)
• Verify load capacity ratings are still appropriate
• Replace any casters showing structural damage
• Update maintenance records and replacement schedules

Replacement Indicators

Replace LCG casters when you observe:

• Wheel tread wear exceeding 30% of original thickness
• Cracks or deformation in fork legs or mounting plate
• Excessive play in swivel bearings
• Wheels that bind or don’t rotate freely after lubrication
• Reduced stability or increased tipping tendency
• Unusual noises during operation
• Mounting hardware that cannot be properly tightened

LCG Casters vs. Standard Casters

Understanding the differences between LCG and standard casters helps in making the right selection.

Height Comparison

Performance Comparison

When to Choose LCG Casters

Select LCG casters when:

• Stability is the primary concern
• Loads are top-heavy or have high centers of gravity
• Space constraints require low profile
• Safety regulations demand enhanced stability
• Frequent direction changes are required
• Floor protection is important
• High load capacity is needed in compact form

When Standard Casters May Be Better

Standard casters may be preferable when:

• Maximum obstacle clearance is required
• Budget constraints are tight
• Loads are stable and low-profile
• Very large wheel sizes are needed
• Application doesn’t involve frequent turning

Innovations in LCG Caster Technology

The caster industry continues to innovate, with LCG casters benefiting from advances in materials, design, and manufacturing.

Material Innovations

• Advanced polyurethane formulations: Improved wear resistance and load capacity
• Nylon composites: Reinforced with glass fiber for enhanced strength
• Thermoplastic rubber (TPR): Better elasticity and floor protection
• Corrosion-resistant materials: Stainless steel and plated options for harsh environments

Design Innovations

• Kingpinless swivel technology: Eliminates kingpin wear, extends service life
• Precision ball bearings: Smoother rotation with less effort
• Modular brake systems: Easy upgrade and replacement of brake mechanisms
• Integrated suspension: Built-in shock absorption for sensitive loads
• Quick-release mechanisms: Tool-free wheel replacement

Smart Caster Technology

Emerging technologies are making LCG casters “smart”:

• Load sensors: Real-time weight monitoring and overload alerts
• Usage tracking: Counting rotations and distance traveled for maintenance scheduling
• Temperature monitoring: Detecting overheating from bearing failure
• RFID tracking: Inventory and asset management integration
• IoT connectivity: Remote monitoring and predictive maintenance

Frequently Asked Questions (FAQ)

Q: What does “low center of gravity” mean in casters?

A: Low center of gravity (LCG) in casters refers to a design where the mounting point and load attachment are positioned closer to the ground, reducing the overall height of the caster assembly. This lowers the center of gravity of the loaded equipment, improving stability and reducing tipping risk.

Q: How much height do LCG casters save compared to standard casters?

A: LCG casters typically save 20-40mm in overall height compared to standard casters of the same wheel size. The exact savings depend on wheel diameter and specific design. For example, a 100mm LCG caster might have an overall height of 110-120mm versus 135-145mm for a standard caster.

Q: Can LCG casters handle the same weight as standard casters?

A: Yes, LCG casters often have equal or even higher load capacities than standard casters of the same wheel size. The lowered design actually distributes loads more efficiently through the structure, and shorter fork legs experience less bending moment, allowing for higher weight ratings.

Q: Are LCG casters more expensive than standard casters?

A: LCG casters are typically 20-50% more expensive than comparable standard casters due to their specialized design, reinforced construction, and precision manufacturing. However, the improved safety, stability, and reduced risk of product damage or injury often justify the additional cost.

Q: Do LCG casters require special maintenance?

A: LCG casters require similar maintenance to standard casters, including regular cleaning, inspection, and lubrication. However, due to their compact design, it’s especially important to keep debris clear from the wheel housing and swivel mechanism, as the tighter tolerances make them more susceptible to jamming from foreign material.

Q: Can I replace standard casters with LCG casters on existing equipment?

A: In many cases, yes. If the mounting hole pattern matches, you can simply swap standard casters for LCG casters. However, you should verify that the reduced height won’t cause issues with ground clearance, leveling, or interference with other equipment components. You may also need to add shims or adjust leveling feet to compensate for the height difference.

Q: What wheel materials are available for LCG casters?

A: LCG casters are available with a wide range of wheel materials, including polyurethane (PU), nylon, rubber/TPR, cast iron, and aluminum core with polyurethane tread. The choice depends on your specific application requirements for load capacity, floor protection, noise level, chemical resistance, and environmental conditions.

Q: Are LCG casters suitable for outdoor use?

A: LCG casters can be used outdoors, but you should select models with appropriate materials and corrosion protection. Look for stainless steel components, zinc-plated finishes, or powder-coated housings for outdoor applications. Wheel material should also be suitable for outdoor conditions – polyurethane and nylon generally perform better outdoors than rubber, which can degrade from UV exposure.

Q: How do I calculate the required load capacity for LCG casters?

A: To calculate required load capacity: (1) Determine the total weight of the equipment plus maximum load. (2) Add a safety factor of 25-50% for dynamic loads during movement. (3) Divide by the number of casters (typically 4). (4) Select casters with capacity exceeding this calculated value. For example, a 500kg cart with 4 casters and 50% safety factor requires casters rated for at least 188kg each.

Q: What is the typical lifespan of LCG casters?

A: The lifespan of LCG casters depends on usage conditions, load, frequency of use, floor conditions, and maintenance. Under normal indoor use with proper maintenance, quality LCG casters can last 5-10 years or more. Heavy use, overloading, harsh environments, or lack of maintenance can significantly shorten lifespan. Regular inspection and timely replacement of worn components can extend overall caster life.

Conclusion

Low center of gravity casters represent an innovative solution to the perennial challenge of moving heavy and potentially unstable loads safely. By positioning the load closer to the ground, these specialized casters dramatically improve stability, reduce tipping risks, enhance maneuverability, and provide numerous other benefits that make them the preferred choice for a wide range of applications.

From industrial manufacturing to healthcare, from automotive to aerospace, LCG casters have proven their value in environments where safety, stability, and reliable performance are non-negotiable. Their compact design, high load capacity, and enhanced safety features make them a wise investment for any material handling application.

When selecting LCG casters, carefully consider your specific load requirements, environmental conditions, floor surfaces, and maneuverability needs. With proper selection, installation, and maintenance, low center of gravity casters will provide years of safe, reliable, and efficient service, protecting both your personnel and your valuable equipment.

As caster technology continues to evolve, we can expect even more innovations in LCG caster design, including smart features, advanced materials, and further improvements in performance and durability. The future of material handling is stable, safe, and low to the ground.

Related Reading

• What is a Low Center of Gravity Caster?
• How to Choose Casters: A Guide to Key Selection Factors
• What Are Extra Heavy Duty Industrial Casters?
• Caster Selection Guide: Fixed Casters/Swivel Casters
