How to Choose Casters: A Guide to Key Selection Factors

Learning how to choose casters is a skill that pays back every single day: the right caster rolls silently, carries the load and lasts for years, while the wrong one squeaks, cracks and fails mid-task. This is a practical, end-to-end guide on how to choose casters the first time — covering load calculation, wheel material, swivel vs rigid mounting, bearings, brakes and environment. Whether you are outfitting a warehouse trolley, an office cabinet, a food cart or a piece of factory equipment, the decision steps below will keep you from the most common (and expensive) buying mistakes.

Casters look simple, but a good selection combines at least six independent variables. Skip one and you will feel it within weeks. Let’s work through them in the order that matters.

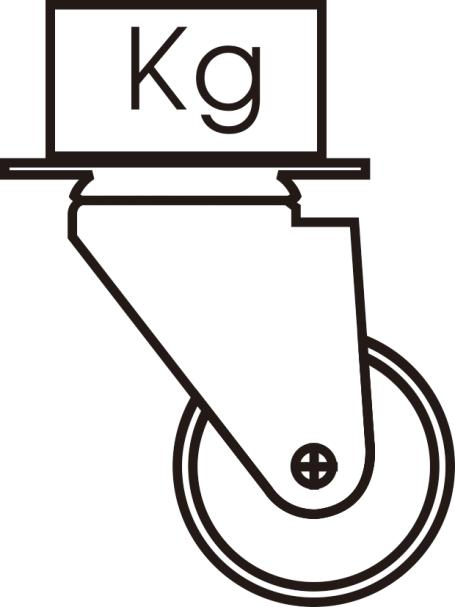

Step 1 — Calculate the Load Rating You Actually Need

Start from the gross weight: empty equipment plus the heaviest realistic load. Divide by the number of casters and add a 20–30% safety margin. Because floors are rarely perfectly flat, design for three wheels bearing the load, not four. This single step prevents more failures than any other.

• Light duty: 35–80 kg/wheel — furniture, light carts.
• Medium duty: 100–190 kg/wheel — trolleys, racks.
• Heavy duty: 150–610 kg/wheel — machinery, platform trucks.
• Super heavy: 700–1600 kg/wheel — AGVs, die carts.

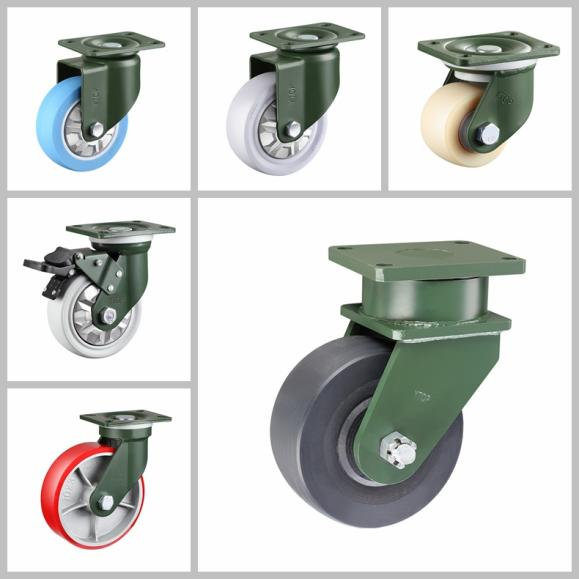

Step 2 — Match Wheel Material to the Floor and Task

The tread decides floor protection, noise, rolling resistance and chemical resistance.

• Polyurethane / TPU: quiet, non-marking, floor-friendly — the general-purpose winner.
• Nylon: hard, cheap, chemical-proof — industrial wet/oily areas.
• Rubber: shock-absorbing — uneven outdoor surfaces.
• Stainless steel: corrosion-proof — food and medical wash-down.

Step 3 — Choose Swivel vs Rigid Configuration

Swivel casters turn 360°; rigid ones track straight. The most stable, practical setup is two swivel + two rigid, with brakes on the swivel wheels at the handle end. Use four swivel wheels only when aisle space is extremely tight.

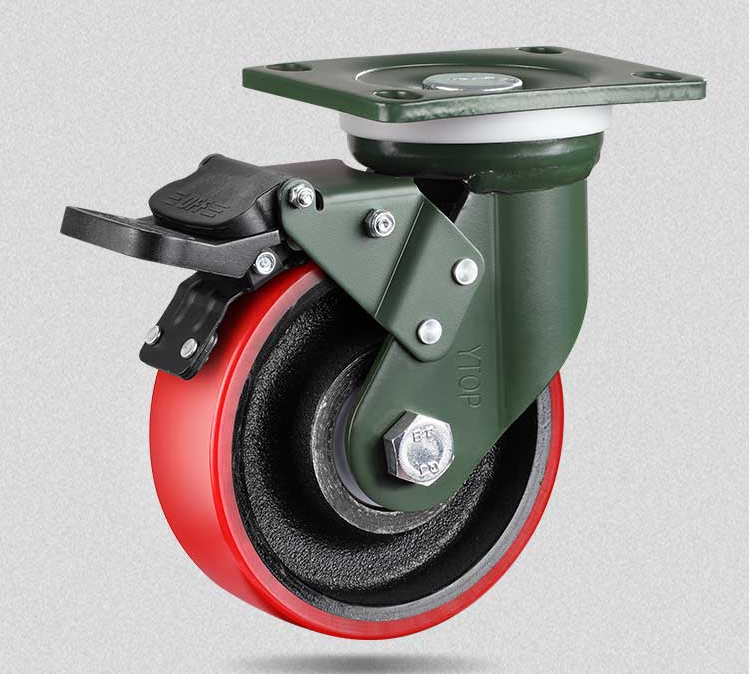

Step 4 — Pick the Right Bearing and Brake

Ball bearings roll easiest at medium speeds; tapered roller bearings carry more load on slow, heavy carts. A total-lock brake (locks wheel + swivel) is the safe choice on ramps and loading docks; a wheel-only brake suits flat, indoor floors.

Step 5 — Account for the Environment

Temperature, moisture, chemicals and debris all shorten caster life. Standard polyurethane softens above ~80°C and turns brittle below -20°C. Wash-down areas need stainless or plated forks. Outdoor rough ground needs larger-diameter, shock-absorbing treads.

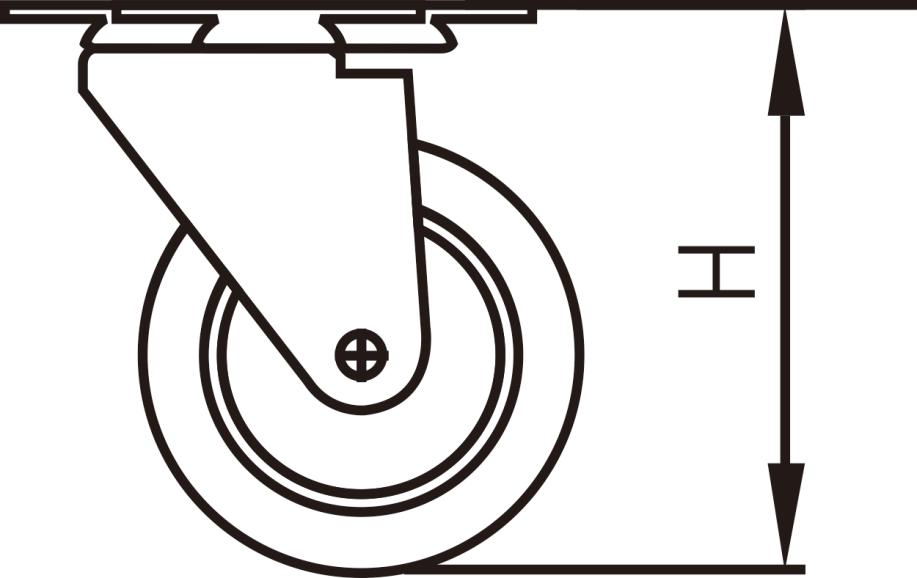

Step 6 — Confirm Mounting and Dimensions

Check the mounting plate or stem pattern, overall height (so the cart stays level) and tread width. Mismatched wheel diameters make a cart pull to one side. Always run a sample push test before bulk ordering.

Common Mistakes When Choosing Casters

• Sizing by eye instead of calculating the per-wheel load.
• Buying the cheapest no-name brand — thin forks and soft bearings fail fast.
• Ignoring the floor — hard treads scratch epoxy and vinyl.
• Four swivel wheels with no brake on a slope.
• Forgetting overall height and mounting hole spacing.

Frequently Asked Questions

How do I calculate the right caster load rating?

Divide the total loaded weight by the number of wheels, then add a 20–30% safety margin. Design as if only three of four wheels touch the ground.

Which caster material is best indoors?

Polyurethane (PU/TPU) is best indoors: quiet, non-marking and floor-protecting. Use nylon only in wet or chemical-exposed areas.

Swivel or rigid casters — which do I need?

Use two of each for stability and maneuverability. Add total-lock brakes on the swivel wheels.

What size caster wheel should I choose?

Larger diameters roll over bumps and thresholds more easily and push with less effort. For indoor smooth floors, 75–125 mm covers most medium-duty needs.

A Worked Example: Specifying Casters for a Packing Station

A practical example ties the steps together. A packing station cart weighs 60 kg empty and is loaded with up to 180 kg of goods, a gross weight of 240 kg. With four casters, design for three touching the ground: each wheel must carry 80 kg, and with a 25% safety margin that becomes 100 kg per wheel. The floor is smooth epoxy in a temperature-controlled warehouse, so a polyurethane tread is the quiet, non-marking choice. The cart sits in a narrow packing aisle, so two swivel casters with total-lock brakes at the handle end and two rigid casters at the front give maneuverability plus straight tracking. Ball bearings give the easiest push at this medium load, and 100 mm diameter wheels clear the expansion joints between floor slabs. The final spec — four 100 mm PU medium-duty casters, 100 kg each, two with brakes — is exactly what the checklist produces, and it beats guessing at a catalogue number.

Understanding Dynamic vs Static Load Ratings

One detail buyers miss is the difference between static and dynamic load. A caster’s rated load is the weight it can carry while rolling, not while sitting parked under a stack for months. A caster parked under a heavy load in one spot will flat-spot the tread and pit the bearing; always move loaded equipment occasionally, or choose a caster rated for both rolling and standing load. Similarly, “rolling load” assumes a smooth, flat surface — rough concrete adds shock loads that can double the instantaneous force on a wheel. This is why the safety margin is not optional; it absorbs the difference between the label number and the real world.

Cost vs Service Life: Why the Cheapest Caster Is Rarely the Cheapest

A budget caster might cost half the price of a quality one, but if it fails in six months under daily use you pay for labour, downtime and replacement twice over. A quality caster with real bearings and a welded fork will often last five years or more. When you price casters, divide the price by the expected service life in years — the quality option almost always wins on total cost. This is especially true in 24/7 operations where a failed caster stops a whole line.

Putting It All Together: A Final Checklist

When you are ready to order, run through this checklist one last time. Calculate the per-wheel load with a safety margin and write the number down. Confirm the tread matches your floor and your noise expectations. Decide swivel versus rigid layout and where the brakes go. Check the bearing type — ball for medium speed, roller for heavy slow loads. Verify the mounting pattern, overall height and tread width against your equipment drawings. Account for temperature, moisture and chemicals in the environment. Order a sample and push it around the real floor before bulk buying. If every box is ticked, you have chosen your casters properly rather than by habit. Most bad caster purchases skip the checklist and guess at a catalogue number.

How Caster Quality Affects Daily Productivity

The right casters quietly improve every shift: the cart rolls with one hand, it does not squeal across the shop, it does not fail mid-task, and the operator does not dread moving it. The wrong casters are a daily, unremarkable tax on productivity — a cart that fights the operator, a wheel that marks the floor, a brake that does not hold. Over a year those small frictions add up to far more than the price difference between a good and a mediocre caster. Learning how to choose casters well is a small investment that pays back on every single trip the equipment makes.

Common Application Scenarios and What They Need

Casters are chosen for a reason that always comes back to a specific task. A warehouse rack needs medium-duty wheels that roll over concrete without marking the floor, with brakes that hold the rack on slight slopes. A medical trolley needs quiet, corrosion-resistant casters that survive daily cleaning. A restaurant serving cart needs quiet non-marking wheels on a stem mount that fits the cart frame. A machine base needs heavy or super heavy duty wheels that hold the equipment steady yet allow occasional repositioning. A library or office cabinet needs light-duty, quiet casters that do not scuff the floor. In every case the process is the same: identify the load, the floor and the duty cycle, then map those to a caster class. There is no magic caster that suits everything — there is only the right match for the job in front of you.

Bottom Line

Learning how to choose casters well boils down to six steps: calculate the load with margin, match the tread to the floor, choose swivel versus rigid, pick the right bearing and brake, account for the environment, and confirm mounting and height. Skip the cheapest no-name option and run a sample before bulk ordering. A well-chosen caster is invisible — it just rolls, quietly and reliably, for years. A badly chosen one is a daily frustration. Treat the six steps as your checklist and you will rarely go wrong.
