How to choose industrial casters or household casters according to the usage scenario?

One of the most common and costly buying mistakes is treating industrial vs household casters as interchangeable. A household furniture caster on a workshop tool cabinet will crack within weeks; an over-engineered industrial caster on a kitchen trolley is a waste of money and hard to push. This guide explains how to choose between industrial vs household casters, the real differences in load, material, construction and environment, and how to match the right caster to your actual use.

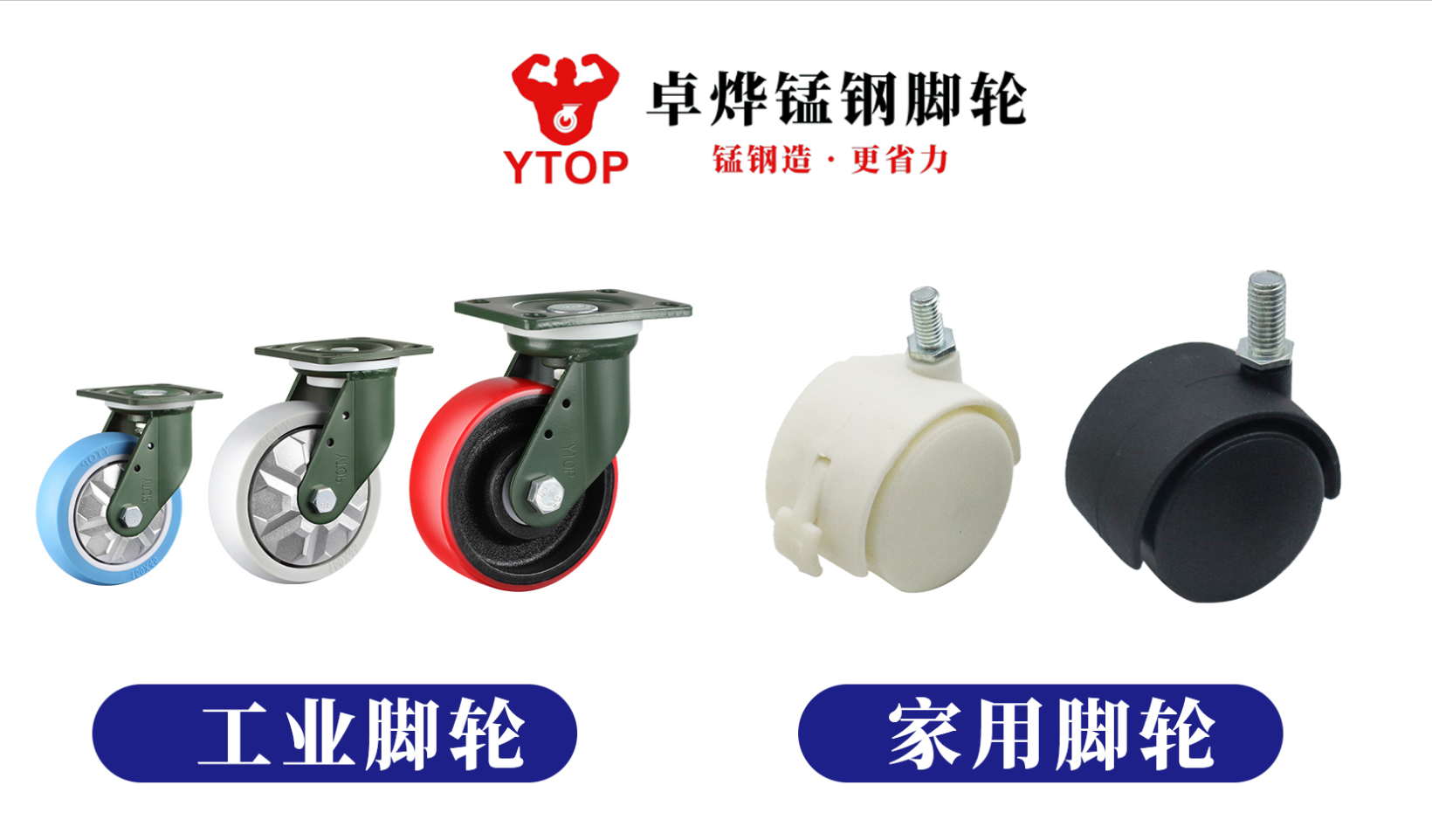

Casters look similar on the shelf, but the gap between a 30 mm household swivel and a 100 mm industrial plate caster is enormous. Here is how to tell which one you actually need.

The Core Differences at a Glance

When You Only Need Household Casters

If the equipment is light, moves occasionally, stays indoors on smooth floors, and never carries more than a few dozen kilograms — for example a plant stand, a small storage box, a TV cabinet or a lightweight serving cart — a quality household caster is perfectly adequate. It is cheaper and quieter for low-frequency use.

When You Must Use Industrial Casters

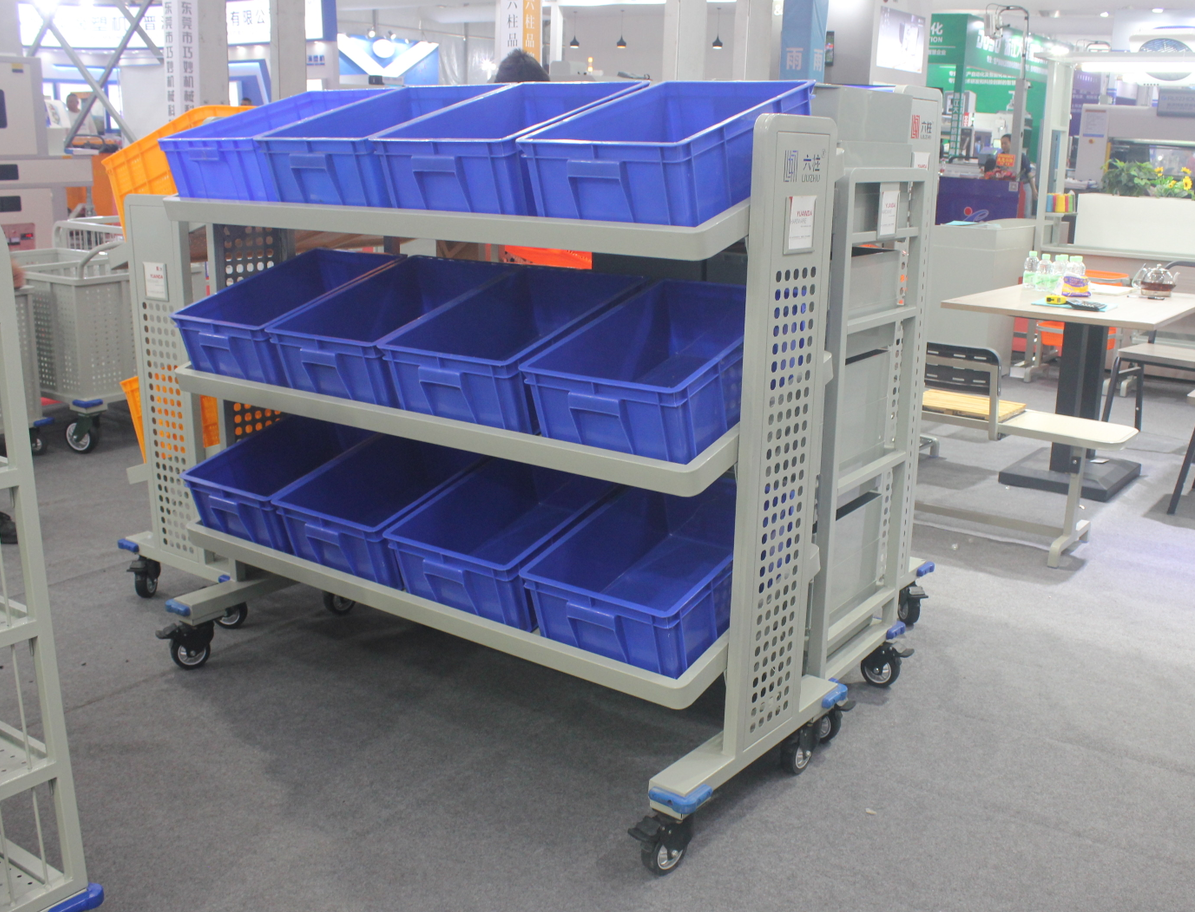

The moment the load climbs, the use becomes daily, or the floor is rough — a tool cabinet, a warehouse rack, a laundry trolley, a machine base — you need an industrial caster. The difference is not just strength: industrial casters use real bearings, corrosion-resistant hardware and heavier forks that survive repeated loading.

Key Questions to Classify Your Need

• What is the total loaded weight? (household usually < 50 kg; industrial above that)
• How often will it move? Daily shifts vs once a month changes everything.
• What is the floor? Smooth tile vs concrete vs warehouse epoxy.
• Is there moisture, oil or heat? Then industrial / stainless hardware wins.
• Do you need brakes? Industrial carts almost always do.

Why “It Looks the Same” Is a Trap

A household caster may look nearly identical to a small industrial caster in a catalogue photo. The difference lives inside: a plastic sleeve bearing versus a ball raceway, a thin stamped fork versus a welded one, a soft tread that deforms versus a stable one. On the floor these differences show up as push effort, noise and service life.

Choosing the Right Tier

• Light household use: light-duty casters, 35–80 kg per wheel.
• Medium shop / office use: medium-duty casters, 100–190 kg per wheel.
• Heavy industrial use: heavy or super heavy duty, 150 kg+ per wheel.

When in doubt, step one tier up. A slightly over-rated caster lasts far longer than an under-rated one, and the price gap is small compared with downtime.

Frequently Asked Questions

Can I use household casters on a tool cabinet?

No. A tool cabinet is loaded and used daily — it needs an industrial or at least medium-duty caster with real bearings and a welded fork.

Are industrial casters always too expensive for home use?

For truly light, occasional indoor items, household casters are fine. Over-buying industrial casters for a plant stand is unnecessary expense.

How do I tell an industrial caster apart?

Look for a welded (not stamped) fork, a ball or roller bearing, a larger wheel diameter and a rated load printed on the specification.

What load separates household from industrial use?

Roughly 50 kg total. Above that, or with daily use, choose industrial-grade casters.

Worked Example: Classifying a Rolling Tool Cabinet

A mechanic’s tool cabinet weighs 70 kg empty and holds up to 90 kg of tools, a total of 160 kg on four casters. At 40 kg per wheel it would look like a light-duty job on paper — but the cabinet is pulled out several times a day, pushed over a concrete workshop floor, and loaded unevenly when drawers are open. That daily cycle and side load pushes it firmly into the medium-duty (100–190 kg) class. Choosing household casters rated 30 kg would bend the first time a drawer is yanked open; choosing heavy-duty 300 kg casters would be overkill and make the cabinet hard to move. The correct tier is a real example of why the household/industrial distinction is not just about total weight — it is about frequency, floor and side load too.

Signs You Have Bought the Wrong Tier

If your casters deform under load, bind when steered, mark the floor, or fail within months, you almost certainly bought below your true requirement. A household caster on a workshop cabinet will wobble and rattle; an industrial caster on a delicate plant stand will scuff a wooden floor. When symptoms appear, check the load, the floor and the bearing type before assuming the caster is defective — most “defects” are actually a wrong-tier selection.

The Total Cost of Choosing Too Low

Under-buying caster quality is a false saving. A 30 kg household caster on a 100 kg rolling rack will fail within months, costing repeated replacements, downtime and sometimes injury when a wheel snaps mid-move. Over-buying industrial-grade casters for a lightweight home item costs extra money and makes it unnecessarily hard to push. The goal is the right tier for the real use — and when in doubt, step one level up, because a slightly over-rated caster lasts longer than an under-rated one at almost the same price.

The Hidden Difference: Bearings and Raceways

Beyond the load rating, the single biggest difference between household and industrial casters is the bearing. A household caster uses a simple plastic or bronze sleeve that the wheel spins on directly — fine for a once-a-week roll across a room, but it grooves and binds under daily use. An industrial caster uses a ball bearing, roller bearing or tapered bearing that lets the wheel spin freely under repeated load for years. The same logic applies to the swivel: a household swivel is a thin stamped ring, while an industrial swivel is a hardened double-ball raceway. These internal parts are invisible in a catalogue photo, which is why “it looks the same” is such a misleading way to compare.

How Frequency of Use Changes the Decision

Two items of equal weight need different casters based on how often they move. A plant stand that is rolled once a month needs only household casters. A tool cabinet pulled out every ten minutes needs industrial casters even if it is not especially heavy. Frequency wears bearings and forks: repeated loading fatigues stamped steel and grooves sleeve bearings until they stick. When in doubt, ask not “how heavy is this?” but “how hard will this be worked?” If the answer is daily and repeated, choose the industrial tier regardless of the modest load.

A Quick Triage: Which Tier Do You Actually Need?

If you are still unsure whether your item is household or industrial, answer four quick questions. Does it weigh more than about 50 kg loaded? Does it move more than a few times a week? Does it travel over concrete, tile or rough floors rather than smooth carpet? Does it need to hold position with a brake on a slope? If the answer to most is yes, you need an industrial or at least a medium-duty caster. If the item is light, moves rarely, stays on smooth indoor floors and never carries much, household casters are fine. When the answers are mixed — a light item used every day on concrete — lean toward the industrial tier, because frequency and floor hurt more than weight does. Better to over-specify slightly than to watch a stamped fork bend on day one.

Bottom Line

The industrial vs household caster choice comes down to load, frequency, floor and environment. A light, rarely moved indoor item is perfectly well served by household casters. A heavier, daily-used piece on a concrete or tiled floor needs real industrial construction — welded forks, real bearings, a proper load rating. When the evidence points both ways, step up one tier. The small extra cost buys years of trouble-free rolling and avoids the safety risk of a bent fork under load. Do not judge a caster by its looks; judge it by its construction and its rated duty.

When you buy, ask the supplier to state the load rating, the bearing type and whether the fork is stamped or welded. Those three facts tell you almost everything you need to know about whether the caster belongs in a home or a workshop. Choose honestly and the equipment will move smoothly for years, in whichever setting it actually lives.
