How to choose a universal wheel, improve efficiency and more accurate orders

If you have ever watched a loaded trolley refuse to turn cleanly or veer sideways down an aisle, you already understand why how to choose universal wheels (swivel casters) matters. Universal wheels are the casters that rotate a full 360° around their swivel raceway, letting equipment turn on the spot and steer in any direction. Pick the wrong one and your cart will wobble, resist pushing, drift on flat floors, or wear out within months. This guide explains exactly how to choose universal wheels for trolleys, racks, furniture and industrial carts — covering load rating, swivel bearing design, wheel material, brake options and the common mistakes that turn a smooth push into a fight.

Universal wheels are the most versatile caster type, but they are also the easiest to spec poorly because “it rolls” is not the same as “it rolls safely and predictably.” A swivel caster concentrates side loads on the swivel raceway every time you turn, so the head must be engineered for the cornering forces, not just the vertical weight. Below we break the decision down step by step so you can choose with confidence.

What Is a Universal Wheel and Why Does It Matter?

A universal (swivel) caster mounts the wheel fork on a rotating double-ball raceway so the entire wheel can pivot 360°. This is what lets a cart change direction without being lifted. A rigid (directional) caster cannot pivot and runs only straight. The distance between the swivel center and the wheel center — called the offset — determines how easy the caster is to turn: a larger offset self-aligns and steers more smoothly, while a small offset is stiffer. Most practical carts combine both swivel and rigid casters, but when people ask how to choose universal wheels, they are usually deciding whether their whole cart should swivel, and which swivel features to prioritize.

Swivel Casters vs Rigid Casters at a Glance

• Universal/swivel: turns in any direction, great maneuverability, but can “wander” if overused without brakes.
• Rigid/directional: tracks straight, stable under load, but cannot turn corners without lifting the cart.
• The proven layout: two swivel casters (often with brakes) at the handle end plus two rigid casters at the far end.

The Key Factors When You Choose Universal Wheels

1. Load Capacity per Wheel

Weigh the empty equipment plus the maximum load, divide by the number of wheels, and add a 20–30% safety margin. Swivel casters take lateral forces during turning, so under-rated swivel heads fail faster than rigid ones. Never spec a universal wheel right at its maximum rating — a cart that “just barely” holds the static weight will twist the swivel ring during the first sharp turn.

2. Swivel Raceway and Bearing Quality

This is the heart of a universal wheel. A cheap single-ball or stamped raceway binds, grooves and squeaks quickly; a hardened double-ball or tapered-roller swivel raceway turns smoothly for years. Under heavy, frequent use, the swivel bearing usually fails before the wheel tread — so invest here. Look for ball retainers, hardened raceways and visible lubrication fittings.

3. Wheel Tread Material

Polyurethane (PU/TPU) is quiet and floor-friendly; nylon is hard and chemical-resistant; rubber absorbs shock. Match the tread to your floor just as you would for any caster. Universal wheels on polished floors especially need non-marking treads, because a swivel wheel scuffs more than a straight-running one.

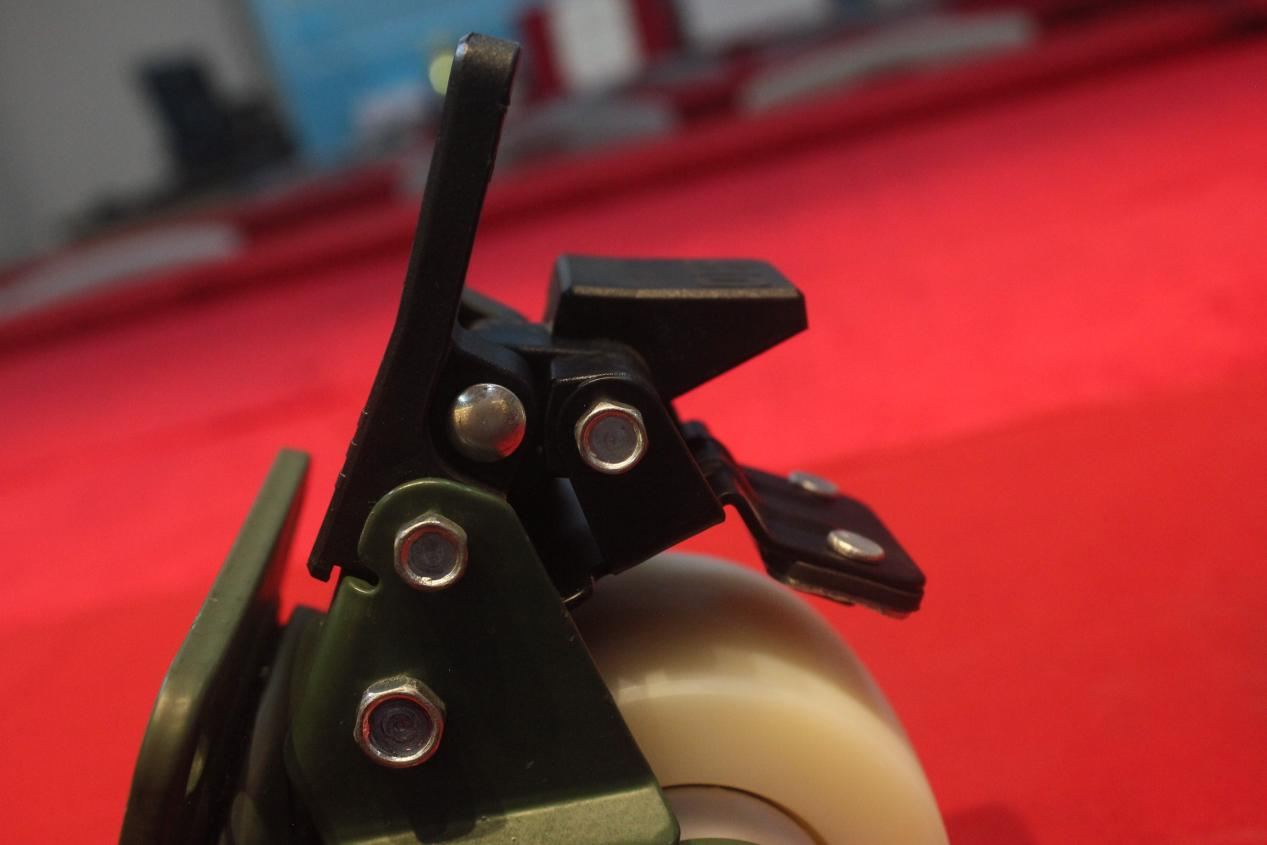

4. Brake Type

A total-lock brake locks both the wheel rotation and the swivel, which is essential on ramps and loading docks. A wheel-only brake lets the cart rotate in place even while stationary — fine on flat floors, risky on slopes where a loaded cart can self-spin.

Step-by-Step Universal Wheel Selection

• Step 1 — Calculate the load per wheel with a 20–30% safety margin, assuming three of four wheels touch the ground.
• Step 2 — Decide the configuration: 2 swivel + 2 rigid for stability, or 4 swivel for very tight maneuvering.
• Step 3 — Inspect the swivel head: prefer double-ball or tapered-roller raceways with lubrication points.
• Step 4 — Pick tread material by floor and noise needs.
• Step 5 — Add total-lock brakes where the cart stops on inclines or while loading.
• Step 6 — Confirm mounting plate/stem, offset and overall height so the cart stays level and steers predictably.

When Four Swivel Wheels Make Sense — and When They Don’t

Four swivel wheels give the tightest turning radius and are ideal for very narrow aisles, laboratory instruments and small retail racks. The downside is that under push they can crab or wander unless loaded evenly. For long, heavy platform carts, a “2 swivel + 2 rigid” truck is far more stable and easier to control. A useful rule: if the cart is longer than about 1.2 m, keep the rigid wheels at the front and the swivel steering wheels at the handle.

Common Mistakes When Choosing Universal Wheels

• Four swivel wheels with no brakes — the cart self-rotates on any slope.
• Ignoring swivel bearing quality — a cheap swivel head binds within months.
• Overloading the swivel ring — lateral cornering forces add hidden load beyond the vertical rating.
• Mismatched diameters — mixing swivel and rigid wheel sizes makes the cart pull to one side.
• No floor protection choice — hard treads mark polished epoxy, and swivel motion makes the marks worse.
• Forgetting the offset — a poorly designed offset makes the wheel shimmy at speed.

Worked Example: Picking Universal Wheels for a Warehouse Picking Cart

A practical example makes the process concrete. Suppose a picking cart weighs 80 kg empty and carries up to 240 kg of goods, for a total of 320 kg. With four casters, assume three carry the load, so each wheel must support about 107 kg. Adding a 25% safety margin gives roughly 135 kg per wheel — so medium-duty swivel casters rated 150 kg are the correct class, not light-duty 50 kg wheels and not heavy-duty 300 kg wheels that would be hard to push. The floor is smooth epoxy, so a PU/TPU tread keeps it quiet and non-marking. Because the cart travels down narrow aisles, two swivel casters with total-lock brakes at the handle and two rigid casters at the front give both steering control and straight tracking. The result is a cart that maneuvers in a 1.2 m aisle, holds position at a shelf, and rolls quietly — exactly what a good universal wheel selection should deliver.

Maintenance to Keep Universal Wheels Turning Freely

Lubricate the swivel raceway and wheel bearings on a schedule, clear hair and debris from around the fork, and check that the brake pads still grip. A stiff swivel raceway is the number-one reason a “new” universal wheel feels hard to turn, and it is almost always a lubrication or contamination problem, not a design flaw. Periodically check the swivel bolts for play — a loose swivel ring causes sloppy steering that feels like a bad caster.

Frequently Asked Questions

What is the difference between a universal wheel and a rigid caster?

A universal (swivel) wheel pivots 360° and turns in any direction; a rigid caster runs only straight. A stable cart uses two of each.

How many swivel wheels should a trolley have?

For everyday carts, use two swivel wheels with brakes at the handle end and two rigid wheels at the far end. Use four swivel wheels only when you must turn in very tight aisles.

Why is my new universal wheel hard to turn?

Usually the swivel raceway is under-lubricated or overloaded, or the swivel bearing is low quality. Spec a double-ball or tapered-roller raceway for frequent heavy use.

Do universal wheels need brakes?

Yes — at least total-lock brakes on the swivel wheels. Without them a loaded cart will rotate and roll on any incline.

Universal Wheels vs Ordinary Casters: What the Price Difference Buys

When comparing quotes, the gap between a cheap swivel caster and a quality one is rarely obvious in a photo. A well-made universal wheel uses hardened ball races, a precision-machined swivel plate, and a welded or forged fork; a cheap copy uses stamped sheet metal and a single ball ring that grooves within months. Over three years of daily use, the cheaper caster will likely be replaced two or three times, while the quality unit keeps rolling. For equipment that moves every shift, the upfront saving is almost always false economy. Always ask the supplier about the swivel raceway type, the bearing type and the fork thickness before you compare prices — those are the features that decide service life, not the colour of the tread.

Bottom Line

Choosing universal wheels well is less about finding the “best” caster and more about matching the load, the swivel bearing, the tread and the brake to how the cart is actually used. Calculate the per-wheel load with margin, invest in a quality swivel raceway, choose the right tread for your floor, and fit total-lock brakes where the cart stops on inclines. Do that and your universal wheels will turn smoothly for years.
