How to choose a cart for carrying heavy loads!

Moving heavy loads by hand is one of the hardest and most injury-prone tasks in any factory or warehouse. The right heavy load cart selection cuts push effort in half, prevents back strain and keeps materials moving safely. This guide explains how to choose a cart for carrying heavy loads: frame construction, deck size, wheel and caster choice, handle ergonomics, and the checks that separate a cart that lasts from one that flexes and fails under load.

A heavy-load cart is a system — frame, deck and casters all have to work together. Under-specify any one of them and the whole cart becomes dangerous. Below is how to choose it right.

1. Match the Frame to the Load

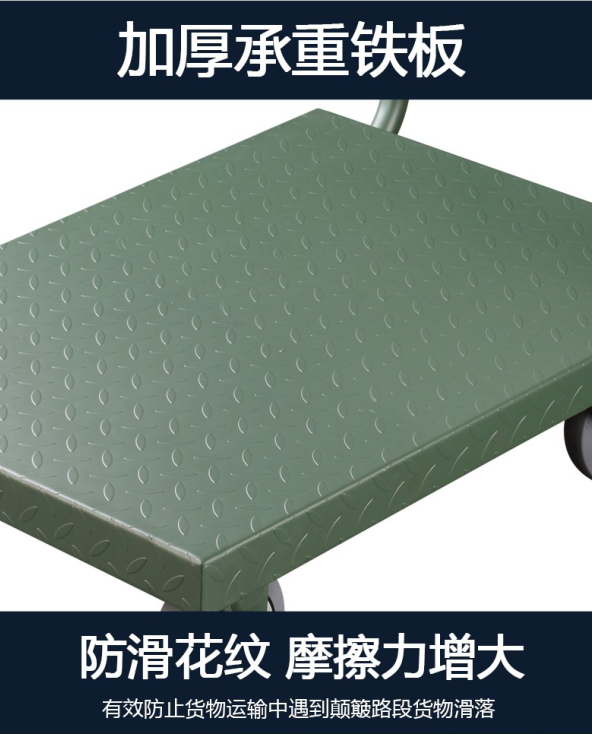

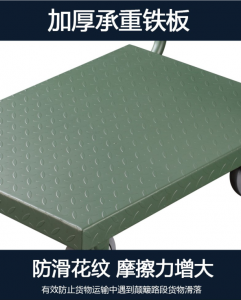

The frame is the backbone. For heavy loads, choose a welded steel or manganese-steel frame, not thin folding tubing. A well-designed heavy-load cart uses reinforced cross-bracing so the deck does not flex under a concentrated load. Check the rated deck capacity and confirm it has margin over your real payload.

What to Look For

• Welded steel or manganese-steel construction.
• Reinforced deck with cross-bracing.
• A clear rated capacity stamped on the cart.
• Edge rails or lips to stop items sliding off.

2. Choose the Right Casters for Heavy Loads

This is where most cheap carts fail. Heavy loads need heavy-duty casters: thick welded forks, tapered or double-ball swivel bearings, and durable PU or cast nylon treads. Divide the total cart load by three (effective wheels) and add a safety margin. See our guide on high load casters selection for the detailed calculation.

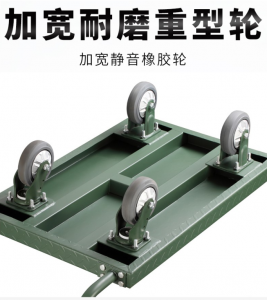

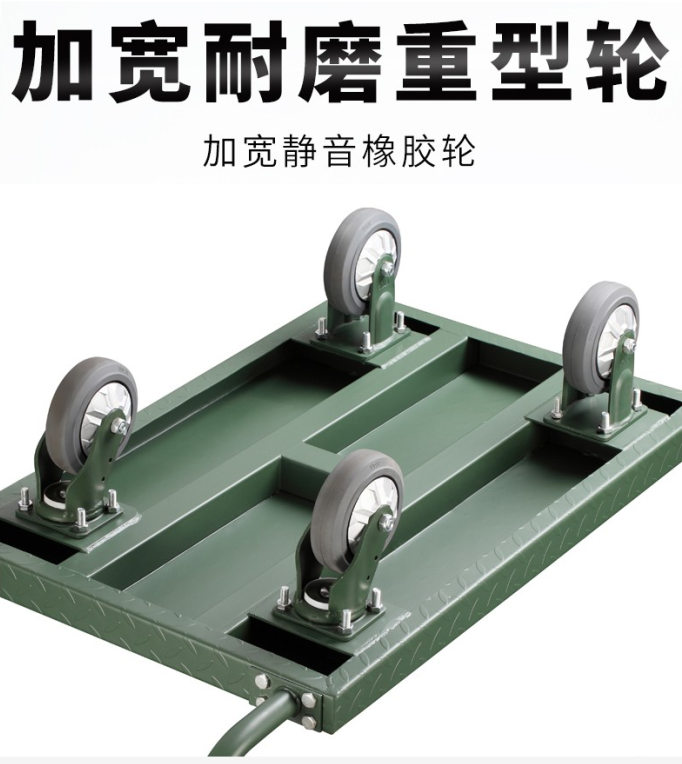

Caster Layout

• Two swivel casters with total-lock brakes at the handle end.
• Two rigid casters at the far end for straight tracking.
• Larger diameter wheels (125 mm+) for ramps and thresholds.

3. Deck Size, Height and Ergonomics

A deck too small forces overhang and unbalanced loads. A deck too low makes lifting on and off awkward. Match the deck to the size of the items you move, and pick a handle height that lets the operator push with a nearly straight back. An ergonomic handle and a cart that rolls easily are what actually reduce operator injury.

4. Floor and Route Conditions

Assess the route: smooth epoxy, rough concrete, ramps, elevator lips, thresholds. These decide wheel diameter and tread. A cart that pushes fine on smooth concrete may be impossible on cracked warehouse floors — specify the wheels for the worst part of the route, not the best.

Step-by-Step Heavy Load Cart Selection

• Step 1: Define the maximum payload and item dimensions.
• Step 2: Choose a welded steel / manganese frame with margin.
• Step 3: Size the deck and height to the load and operator.
• Step 4: Specify heavy-duty casters per wheel with safety margin.
• Step 5: Fit brakes and an ergonomic handle.
• Step 6: Test-route the cart over the actual floor and ramps.

Common Mistakes

• Buying a light folding cart for a genuinely heavy load.
• Under-sizing casters — the cart bends and the wheels fail first.
• Too-small wheels that cannot cross ramps and seams.
• No brakes on a load that must hold position on a slope.
• Ignoring ergonomics — a hard-to-push cart still causes injury even if it doesn’t break.

Frequently Asked Questions

What frame material is best for a heavy load cart?

Welded steel or manganese-steel frames with cross-bracing are the strongest and most stable for heavy loads.

What casters do I need on a heavy load cart?

Heavy-duty casters with thick welded forks and tapered or double-ball swivel bearings. Calculate the per-wheel load with a 30–50% safety margin.

How big should the wheels be?

Use 125 mm or larger diameter wheels so the cart rolls over ramps, dock plates and floor cracks with minimal pushing effort.

Is a cheaper folding cart okay for heavy loads?

No — folding tubing frames flex and fail under concentrated heavy loads. Choose a reinforced welded frame for repeated heavy use.

Worked Example: Choosing a Cart for a 500 kg Die

Consider a cart that must move a 500 kg machine die between presses. The cart frame itself weighs 80 kg, so the gross load is 580 kg across four casters. Designing for three effective wheels puts about 193 kg per wheel, and with a 40% shock margin that rises to nearly 270 kg per wheel — squarely in the heavy-duty (150–610 kg) class. The frame must be welded steel with cross-bracing, because a flexing frame under a 500 kg die is a safety hazard. The deck needs lips to stop the die sliding, and a low, reinforced platform so the load sits close to the ground for stability. Two swivel casters with total-lock brakes at the handle end and two rigid casers at the front let a single operator steer the loaded die safely. This example shows why a heavy load cart cannot be improvised from a shelf — every component is sized by the load.

Frame, Deck and Handle: The Whole System

A heavy load cart fails as a system, not a single part. A strong frame with weak casters still fails; strong casters on a flexing deck still flex. The deck must not deflect visibly under load, the handle must be tall enough for a straight-back push, and the wheels must match the worst floor on the route. When evaluating carts, push a loaded sample around your actual factory — not on a smooth showroom floor. The difference between a cart that rolls easily and one that fights you is decided by the combination of frame stiffness, caster bearings and wheel diameter.

Safety and Operator Ergonomics

The heaviest loads are where injury risk is highest. A cart that needs two people to steer, or that rolls away on a ramp, is unsafe no matter how strong it is. Total-lock brakes, a well-placed handle and easy-rolling high-quality casters are safety features, not luxuries. Measure the push force a loaded cart requires — if it is more than about 15% of the cart’s weight, upgrade the bearings and tread rather than asking operators to push harder.

Maintenance for Heavy Load Carts

Heavy load carts earn their keep only if they are maintained. Regrease the caster bearings and swivel rings, check that the frame welds have no cracks, inspect the deck for deflection, and replace wheels before they crack. A cart that carries half a tonne should never be allowed to develop a loose bolt or a bent fork quietly — these are the early warnings of a failure that could cause a serious accident.

Frame Materials Explained: Painted Steel, Stainless and Manganese Steel

Heavy load carts are built from a few frame materials, each with a different trade-off. Painted carbon steel is the most common and cost-effective, strong enough for most 500–1 000 kg carts but vulnerable to rust in wet environments. Stainless steel is reserved for food, medical or wash-down areas where corrosion is unacceptable. Manganese steel offers exceptional strength-to-weight and impact resistance, which is why premium die carts and AGV platforms use it. When choosing, match the frame material to the environment as well as the load — a cart that rusts on a wet factory floor fails faster than a stronger one that stays dry. Always confirm the frame has been tested to a rated capacity rather than looking it up in a catalogue photo.

The Payoff of a Properly Specified Heavy Load Cart

A well-chosen heavy load cart does three things: it reduces push effort to a fraction of the load, it eliminates the wobble and flex that make heavy carts dangerous, and it lasts for years instead of months. Operators push more comfortably, goods arrive undamaged, and maintenance teams spend less time repairing a buckling frame. The upfront calculation — load, frame, casters, floor, brakes — is the small effort that makes all of that happen. Cut corners on any one of those steps and the cart becomes a liability; get them right and it becomes a reliable part of daily operations.

Questions to Ask Before You Buy

Before committing to a heavy load cart, ask four questions. What is the absolute heaviest single load the cart will ever carry? Is the floor on the route smooth or rough, and are there ramps or thresholds? Does the cart need to turn in tight aisles, or travel straight? Will one operator push it, or does it need a low push force? The answers pin down the frame, the caster class, the wheel diameter and the brake arrangement. A cart specified from these answers will serve for years; a cart chosen from a catalogue photo will leave you guessing until something bends. If a supplier cannot confirm a rated capacity and a caster spec, keep looking.
