Caster Dust Covers and Rings

Caster dust covers and rings are important accessories that protect the internal components of casters from contamination by dust, dirt, debris, moisture, and other environmental elements. While often overlooked, these simple components play a critical role in extending the service life of casters, reducing maintenance requirements, and ensuring smooth, reliable operation in dirty or harsh environments. This article provides a comprehensive analysis of caster dust covers and rings, examining their types, functions, materials, applications, and selection considerations.

Introduction to Caster Dust Covers and Rings

Casters are mechanical devices that rely on the smooth operation of internal components such as bearings, swivel raceways, and axles to provide reliable mobility. These internal components are precision-engineered to operate with minimal friction and wear, but they are vulnerable to contamination by dust, dirt, debris, moisture, and other environmental elements. When contaminants enter the bearing or swivel mechanism, they can cause accelerated wear, increased friction, binding, corrosion, and premature failure of the caster. This is particularly problematic in industrial environments such as manufacturing facilities, warehouses, construction sites, and outdoor applications, where casters are exposed to high levels of dust, dirt, and debris.

Caster dust covers and rings are protective accessories that are designed to prevent contaminants from entering the internal components of the caster, particularly the swivel raceway and the wheel bearings. They act as a physical barrier between the internal components and the external environment, keeping dust, dirt, and debris out while allowing the caster to operate smoothly. While they may seem like simple, insignificant components, dust covers and rings can significantly extend the service life of casters, reduce maintenance requirements, and prevent premature failure in dirty or harsh environments. There are several types of caster dust covers and rings available, each with its own design, material, level of protection, and suitable applications. In this article, we will analyze the most common types of caster dust covers and rings, examining their functions, characteristics, materials, advantages, limitations, and typical applications, and providing guidance on selecting the right dust cover or ring for specific caster applications.

Types of Caster Dust Covers and Rings

There are several types of caster dust covers and rings, each designed to protect different parts of the caster and provide different levels of protection. The most common types include swivel raceway dust covers, wheel bearing dust seals, axle dust caps, and full caster covers. Swivel raceway dust covers, also known as swivel seals or raceway seals, are designed to protect the swivel raceway (the bearing mechanism that allows the caster to rotate 360 degrees) from contamination. They are typically installed between the upper mounting plate and the lower fork of the caster, covering the gap where the swivel raceway is located. Swivel raceway dust covers prevent dust, dirt, and debris from entering the raceway, which could cause increased friction, binding, and premature wear of the swivel mechanism. They are available in various designs including simple metal shields (which provide basic protection against falling debris), labyrinth seals (which use a tortuous path to prevent contaminants from entering while allowing for proper lubrication), and contact seals (which use a flexible sealing lip that makes direct contact with the rotating component to provide a more effective barrier).

Wheel bearing dust seals, also known as wheel seals or bearing seals, are designed to protect the wheel bearings (the bearings that allow the wheel to rotate around the axle) from contamination. They are typically installed on both sides of the wheel hub, covering the gap between the wheel hub and the axle where the bearings are located. Wheel bearing dust seals prevent dust, dirt, and debris from entering the wheel bearings, which could cause increased rolling resistance, premature bearing wear, and bearing failure. They are available in various designs including shielded bearings (which have metal shields on one or both sides to prevent large debris from entering), sealed bearings (which have rubber or plastic seals on both sides to provide better contamination protection and retain lubricant), and external dust seals (which are separate seals installed on the wheel hub to provide additional protection). Axle dust caps, also known as axle caps or grease caps, are designed to protect the end of the axle and the wheel bearing from contamination, particularly in applications where the axle end is exposed. They are typically installed on the end of the axle, covering the axle end and the bearing to prevent dust, dirt, and moisture from entering. Full caster covers, also known as caster boots or caster enclosures, are comprehensive protective covers that enclose the entire caster (including the wheel, fork, and swivel mechanism) to provide maximum protection against contamination. They are typically used in extremely dirty or harsh environments such as foundries, cement plants, or agricultural applications, where the caster is exposed to high levels of dust, dirt, and debris. Full caster covers are typically made from durable materials such as rubber, vinyl, or coated fabric, and they may be designed to be removable for maintenance and inspection.

Materials Used for Dust Covers and Rings

Caster dust covers and rings are made from a variety of materials, each with its own unique properties, advantages, and limitations. The selection of material depends on the level of protection required, the operating environment (including temperature, moisture, chemicals, and abrasion), and the cost considerations. The most common materials used for caster dust covers and rings include steel, stainless steel, nitrile rubber (NBR), polyurethane, silicone, felt, and various plastics.

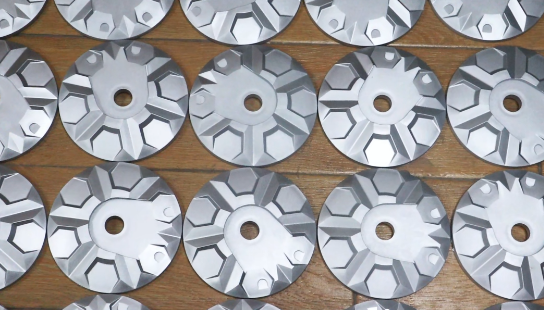

Steel is the most common material for basic dust covers and shields, particularly for swivel raceway dust covers and axle dust caps. Steel dust covers are inexpensive, durable, and provide good protection against large debris and falling particles. They are typically made from thin steel sheet that is stamped or formed into the desired shape, and they may be zinc-plated or powder-coated for corrosion resistance. However, steel dust covers are non-contact shields (they do not make direct contact with the rotating component), so they provide only basic protection against large debris and are not effective against fine dust, moisture, or contaminants that can enter through the gap between the shield and the rotating component. Stainless steel is used for dust covers and rings in corrosive environments such as food processing, pharmaceutical, marine, and chemical applications, where carbon steel would rust and degrade. Stainless steel dust covers offer excellent corrosion resistance and are easy to clean and sanitize, making them suitable for hygienic environments. However, they are more expensive than carbon steel dust covers. Nitrile rubber (NBR), also known as Buna-N, is the most common material for contact seals and gaskets, as it offers excellent resistance to oils, greases, and many industrial chemicals, good flexibility and sealing properties, and reasonable temperature range (typically -40C to 120C). Nitrile rubber dust seals provide effective protection against dust, dirt, and moisture by making direct contact with the rotating component, creating a barrier that prevents contaminants from entering. They are commonly used for wheel bearing seals and swivel raceway contact seals. Polyurethane is used for dust covers and rings in applications requiring excellent abrasion resistance, good flexibility, and resistance to oils and many chemicals. Polyurethane dust covers are more durable and abrasion-resistant than rubber covers, and they can be formulated in a range of hardness levels to suit different applications. They are commonly used for full caster covers and heavy-duty dust seals. Silicone is used for dust covers and seals in high-temperature applications, as it offers excellent heat resistance (typically -60C to 200C or higher) and good flexibility at extreme temperatures. However, silicone has poorer abrasion resistance and oil resistance than nitrile rubber or polyurethane, and it is more expensive. Felt is used for some basic dust seals and wipers, particularly in older or lighter-duty caster designs. Felt dust seals are inexpensive and provide basic protection against dust, but they are not as effective as rubber or plastic seals and may require periodic lubrication to maintain their sealing properties. Plastics such as nylon, polyethylene, and polypropylene are used for some dust covers and rings, particularly in light-duty or corrosion-resistant applications. Plastic dust covers are lightweight, corrosion-resistant, and inexpensive, but they may not be as durable or heat-resistant as metal or rubber covers. By selecting the appropriate material for the specific application and environment, users can ensure that their dust covers and rings provide effective, long-lasting protection for their casters.

Benefits of Using Dust Covers and Rings

The use of caster dust covers and rings offers several significant benefits that make them a worthwhile investment, particularly in dirty or harsh environments. The first and most important benefit is extended caster service life. By preventing dust, dirt, debris, and moisture from entering the internal components of the caster (particularly the bearings and swivel raceway), dust covers and rings significantly reduce the wear and corrosion that can lead to premature caster failure. In dirty environments, casters without dust covers may fail in a fraction of the time expected for clean environments, as contaminants cause abrasive wear, increased friction, and corrosion of the internal components. Dust covers and rings can extend the service life of casters by 2-5 times or more in dirty environments, providing significant cost savings over the long term.

The second benefit is reduced maintenance requirements. Casters protected by dust covers and rings require less frequent lubrication, cleaning, and inspection, as the internal components remain cleaner and better lubricated for longer periods. This reduces the labor and material costs associated with caster maintenance, and it reduces the downtime required for maintenance activities. In applications where casters are difficult to access or where maintenance is particularly costly (such as in production line equipment or heavy machinery), the reduced maintenance requirements can be a significant advantage. The third benefit is improved caster performance and reliability. Casters protected by dust covers and rings maintain smoother rolling and swiveling performance for longer periods, as the internal components remain free of contaminants that could cause increased friction, binding, or erratic operation. This results in more consistent and reliable caster performance, reducing the risk of equipment malfunction or unexpected failure. The fourth benefit is reduced rolling resistance and improved ergonomics. Contaminants in the wheel bearings can cause increased rolling resistance, making the equipment harder to move and increasing the physical effort required by operators. By keeping the bearings clean and well-lubricated, dust covers and rings help maintain low rolling resistance, reducing operator fatigue and improving ergonomics. The fifth benefit is protection against moisture and corrosion. In addition to dust and dirt, many dust covers and rings (particularly contact seals made from rubber or plastic) also provide protection against moisture, water, and other liquids that could cause corrosion of the internal components. This is particularly important in wet environments such as food processing, outdoor applications, or facilities with frequent washdown. The sixth benefit is improved safety. Casters that are well-protected and maintained are less likely to fail unexpectedly, reducing the risk of accidents and injuries caused by caster failure. Smooth-rolling casters also reduce the risk of operator strain and injury from excessive pushing effort. By investing in quality dust covers and rings, users can realize all of these benefits, ensuring that their casters provide long, reliable, and safe service even in the most demanding environments.

Selection Considerations and Conclusion

Selecting the right caster dust covers and rings requires careful consideration of several factors to ensure effective protection and reliable performance. The first and most important factor is the level and type of contamination in the operating environment. If the environment is relatively clean with only minimal dust exposure, basic metal shields or standard sealed bearings may provide sufficient protection. If the environment has moderate dust and dirt exposure (such as in a typical warehouse or manufacturing facility), labyrinth seals or contact seals may be appropriate. If the environment has heavy dust, dirt, or debris exposure (such as in a foundry, cement plant, construction site, or agricultural application), full caster covers or heavy-duty contact seals may be necessary. If the environment has moisture, water, or chemical exposure (such as in food processing, outdoor, or chemical applications), contact seals made from corrosion-resistant materials may be required.

The second factor is the type of caster and the components that need protection. Different casters have different designs and configurations, and the dust covers and rings must be compatible with the specific caster model and size. It is important to select dust covers and rings that are specifically designed for the caster model, as generic or ill-fitting covers may not provide effective protection and may interfere with caster operation. The third factor is the temperature range of the operating environment. Dust covers and rings must be made from materials that can withstand the temperature range of the application without degrading, hardening, or becoming brittle. For high-temperature applications, silicone or high-temperature plastics may be required, while for low-temperature applications, materials that remain flexible at low temperatures (such as certain grades of polyurethane or silicone) may be needed. The fourth factor is the chemical exposure in the operating environment. If the caster will be exposed to oils, greases, solvents, acids, bases, or other chemicals, the dust cover and ring material must be resistant to these chemicals to prevent degradation or failure. Nitrile rubber offers good resistance to oils and greases, while polyurethane offers good resistance to many chemicals, and specialty materials may be required for exposure to harsh chemicals. The fifth factor is the ease of maintenance and inspection. Some dust covers and rings (particularly full caster covers) may need to be removed periodically for maintenance, lubrication, and inspection of the caster. It is important to select covers that are easy to remove and reinstall, and that do not require special tools or excessive time for maintenance. The sixth factor is the cost, including both the initial cost of the dust covers and rings and the total cost of ownership (including the impact on caster service life, maintenance costs, and downtime). While high-quality dust covers and rings may have a higher initial cost, they can provide significant long-term savings by extending caster service life and reducing maintenance requirements. By carefully evaluating all of these factors and selecting the appropriate dust covers and rings for the specific caster and application, users can ensure effective protection and long, reliable caster service life.

In conclusion, caster dust covers and rings are important accessories that play a critical role in protecting the internal components of casters from contamination by dust, dirt, debris, moisture, and other environmental elements. While often overlooked, these simple components can significantly extend the service life of casters, reduce maintenance requirements, improve performance and reliability, reduce rolling resistance and improve ergonomics, protect against moisture and corrosion, and enhance safety. With a variety of types available (including swivel raceway dust covers, wheel bearing dust seals, axle dust caps, and full caster covers) and a range of materials (including steel, stainless steel, nitrile rubber, polyurethane, silicone, felt, and plastics), there is a dust cover or ring solution for virtually every caster application and environment. By understanding the different types and materials of dust covers and rings, and by carefully evaluating the specific requirements of the application (including the level and type of contamination, the caster type, the temperature range, the chemical exposure, the maintenance requirements, and the cost), users can select the right dust covers and rings to ensure effective protection and long, reliable caster service life. Investing in quality dust covers and rings is an investment in the performance, reliability, and longevity of the caster system, and it can provide significant long-term savings and benefits, particularly in dirty or harsh environments where casters are exposed to high levels of contamination.
