Casters, this seemingly simple yet profoundly rich term, plays an indispensable role in our daily lives. From furniture moving to industrial equipment relocation, from supermarket shelves to hospital beds, casters provide the mobility that makes our lives and work more convenient and efficient. However, despite their ubiquity, few people truly understand the rich diversity and classification of casters. This article provides a comprehensive, multi-angle exploration of caster classification, examining the various ways casters can be categorized based on their design, function, load capacity, materials, and applications.
Introduction: The Rich World of Caster Classification
At first glance, a caster may appear to be a simple device – a wheel mounted on a bracket that allows equipment to be moved. However, beneath this simple exterior lies a rich and diverse world of caster types, designs, and configurations, each tailored to specific applications and requirements. Casters can be classified in numerous ways, depending on the criteria used: by their swivel capability (rigid vs. swivel), by their load capacity (light, medium, heavy, extra-heavy duty), by their wheel material (polyurethane, nylon, rubber, steel), by their mounting type (top plate, stem, bolt hole), by their brake type (single brake, double brake, directional lock), by their application (industrial, medical, furniture, food service), and by many other criteria. Understanding these various classification systems is essential for navigating the wide range of caster options available and selecting the right caster for a specific application.
The diversity of caster types reflects the diversity of applications in which they are used. A caster designed for a hospital bed must provide quiet rolling, smooth maneuverability, and reliable braking, while a caster designed for an extra-heavy-duty industrial cart must provide extreme load capacity, impact resistance, and durability. A caster designed for an office chair must provide smooth rolling on carpet and hard floors, while a caster designed for a food processing cart must provide corrosion resistance and washdown compatibility. Each of these applications requires a different type of caster, with different design features, materials, and performance characteristics. By understanding the various ways casters can be classified, users can better understand the trade-offs and considerations involved in caster selection and make more informed decisions about the right caster for their specific needs. In this article, we will explore caster classification from multiple angles, examining the most important classification criteria and the caster types that fall under each category.
Classification by Swivel Capability: Rigid vs. Swivel

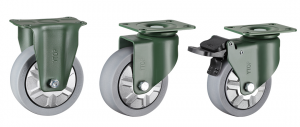

One of the most fundamental classifications of casters is by their swivel capability, which determines whether the caster can only roll in a straight line or can rotate to roll in any direction. There are two primary types: rigid casters and swivel casters. Rigid casters, also known as fixed casters, are designed to roll only forward and backward in a straight line. They consist of a wheel mounted in a fixed fork that is attached to the mounting plate or stem, with no swivel mechanism. Because they cannot turn, rigid casters provide excellent straight-line tracking and stability, but they limit the maneuverability of the equipment. Rigid casters are typically used on the rear of equipment (in combination with swivel casters on the front) to provide a balance of tracking and maneuverability, or on equipment that only needs to move in a straight line (such as towed carts or conveyor systems).
Swivel casters, on the other hand, are designed to rotate 360 degrees around a vertical axis, allowing them to roll in any direction and providing maximum maneuverability. A swivel caster consists of a wheel mounted in a fork that is attached to a swivel mechanism (typically a raceway with bearings), which is in turn attached to the mounting plate or stem. The swivel mechanism allows the fork and wheel to rotate independently of the mounting plate, enabling the caster to change direction easily and navigate around obstacles. Swivel casters are the most common type of caster, as they provide the versatility and maneuverability needed for most applications. They are typically used on the front of equipment (in combination with rigid casters on the rear) or on all four corners of equipment that requires maximum maneuverability. Within the swivel caster category, there are further variations based on the swivel mechanism design, including kingpin swivel casters (which use a central kingpin to hold the swivel assembly together) and kingpinless swivel casters (which use an interlocking raceway design without a central kingpin, providing higher load capacity and better shock resistance). There are also swivel casters with directional locks (which allow the swivel to be locked in one of four positions, converting the caster to a rigid caster when desired) and swivel casters with brakes (which lock the wheel and/or swivel to secure the equipment in place). The classification by swivel capability is fundamental because it determines the basic maneuverability of the caster and is one of the first considerations in caster selection. Most equipment uses a combination of rigid and swivel casters to provide a balance of straight-line tracking and maneuverability, with the specific combination depending on the equipment’s intended use and operating environment.
Classification by Load Capacity: Light to Extra-Heavy Duty
Another important classification of casters is by their load capacity, which determines the maximum weight the caster can safely support. Casters are typically classified into four load capacity categories: light duty, medium duty, heavy duty, and extra-heavy duty. Light duty casters are designed to support the lightest loads, typically up to 100-200 kg per caster (and sometimes up to 300 kg for heavier light-duty designs). They are typically constructed with thinner brackets (often 1/8 inch or 3 mm or thinner), smaller wheels (typically 2-5 inches in diameter), and lighter-duty components. Light duty casters are used for applications such as furniture, office chairs, display racks, small carts, and light equipment where the loads are minimal and the caster does not need to withstand heavy use or harsh conditions. They are often made from materials such as zinc-plated steel, chrome-plated steel, or plastic, with wheels made from polyurethane, rubber, nylon, or plastic.
Medium duty casters are designed to support moderate loads, typically ranging from 200-500 kg per caster (and sometimes up to 1,000 kg for heavier medium-duty designs). They are constructed with moderately thick brackets (typically 1/8 to 3/16 inch or 3-5 mm), medium-sized wheels (typically 4-8 inches in diameter), and components that provide a good balance of strength and cost. Medium duty casters are the most common type, used for a wide range of applications including commercial carts, hospital equipment, food service carts, warehouse carts, office equipment, and general-purpose material handling. They are typically made from powder-coated steel or zinc-plated steel, with wheels made from polyurethane (the most common), nylon, or rubber. Heavy duty casters are designed to support heavy loads, typically ranging from 500-2,000 kg per caster (and sometimes up to 5,000 kg for heavier heavy-duty designs). They are constructed with thick brackets (typically 1/4 to 3/8 inch or 6-10 mm), large wheels (typically 6-12 inches in diameter), and heavy-duty components including high-capacity bearings and robust swivel mechanisms. Heavy duty casters are used for applications such as industrial carts, warehouse equipment, material handling systems, workstations, machinery, and heavy equipment where the loads are significant and the caster must withstand frequent use and potentially harsh conditions. They are typically made from powder-coated steel (often with welded bracket construction), with wheels made from polyurethane, nylon, or steel/cast iron. Extra-heavy duty casters are designed to support the heaviest loads, typically ranging from 2,000 kg to 20,000 kg or more per caster. They are constructed with very thick brackets (typically 3/8 to 1/2 inch or 10-12 mm or thicker, often with welded construction and additional reinforcement gussets), very large wheels (typically 8-16 inches or larger in diameter), and extremely heavy-duty components including tapered roller bearings and kingpinless swivel mechanisms. Extra-heavy duty casters are used for the most demanding applications such as aerospace manufacturing equipment, shipbuilding equipment, heavy material handling systems, tow-line applications, and heavy industrial machinery where the loads are extreme. They are typically made from heavy-duty powder-coated steel, with wheels made from polyurethane (for a balance of load capacity and floor protection), nylon (for maximum load capacity and chemical resistance), or steel/cast iron (for the most extreme load requirements). The classification by load capacity is critical because using a caster with insufficient load capacity can lead to premature failure, safety hazards, and equipment damage, while using a caster with excessive load capacity may be unnecessarily expensive and heavy. Selecting the appropriate load capacity category (with an appropriate safety factor) is one of the most important decisions in caster selection.
Classification by Wheel Material and Mounting Type

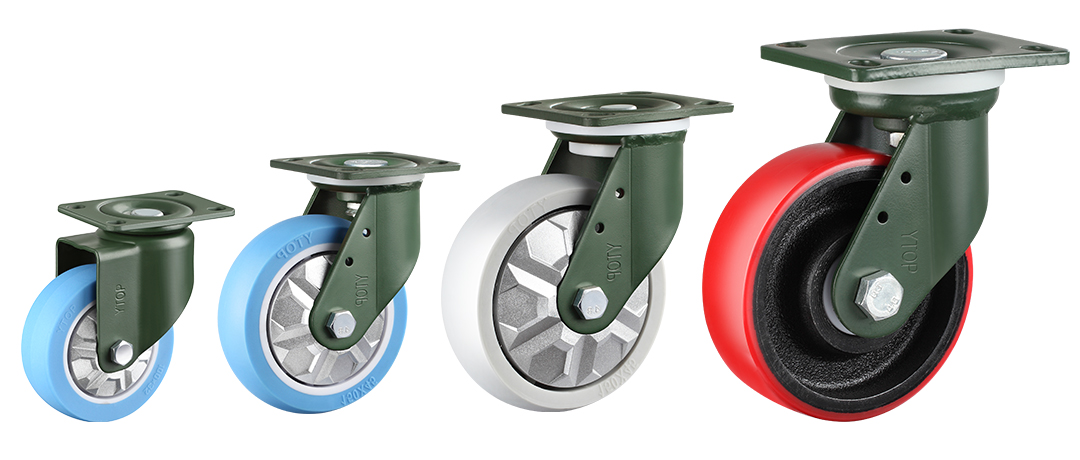

Casters can also be classified by their wheel material, which significantly affects the caster’s performance characteristics including load capacity, rolling resistance, noise level, floor protection, wear resistance, and chemical resistance. The most common wheel materials include polyurethane (the most popular for industrial casters, offering a balanced combination of load capacity, wear resistance, low rolling resistance, noise reduction, and floor protection), nylon (offering very high load capacity and chemical resistance but being noisier and potentially damaging to floors), rubber (offering excellent noise reduction and shock absorption but with lower load capacity and durability), steel or cast iron (offering the highest load capacity and heat resistance but being extremely noisy and damaging to floors), and plastic or polypropylene (offering low cost and corrosion resistance but with limited load capacity and durability). Each wheel material has its own unique set of properties that make it suitable for specific applications, and selecting the right wheel material is essential for ensuring optimal caster performance.
Within each wheel material category, there are further variations based on the wheel core material (steel, cast iron, aluminum, or plastic), the wheel hardness (durometer), and the wheel construction (solid, cored, or pneumatic). For example, polyurethane wheels are available in a range of hardness levels from 80 Shore A (softer, for better noise reduction and floor protection) to 95 Shore A (harder, for higher load capacity and lower rolling resistance), and with various core materials including steel, cast iron, aluminum, and nylon. Caster classification by mounting type is another important classification, as it determines how the caster is attached to the equipment. The most common mounting types include top plate casters (which mount via a flat plate with bolt holes, the most common and versatile mounting type for industrial casters), stem casters (which mount via a stem that inserts into a hole in the equipment, available in threaded stem, grip ring stem, grip neck stem, and expanding stem variants), bolt hole casters (which mount directly via bolt holes in the caster bracket without a separate top plate), and pad mount casters (which mount via a flat pad that is bolted or welded to the equipment). Each mounting type has its own advantages and suitable applications, and selecting the right mounting type is essential for ensuring that the caster can be properly and securely attached to the equipment. The classification by wheel material and mounting type are important because they directly affect the caster’s performance and compatibility with the equipment, and they are key considerations in caster selection alongside load capacity and swivel capability.
Classification by Application and Special Features
Casters can also be classified by their intended application, which reflects the specific design features and performance characteristics required for that application. Some common application-based classifications include industrial casters (designed for heavy-duty industrial environments, with robust construction, high load capacity, and durable materials), medical casters (designed for healthcare environments, with quiet rolling, smooth maneuverability, reliable braking, and often antimicrobial properties or easy-to-clean surfaces), furniture casters (designed for furniture and office equipment, with attractive appearance, smooth rolling, and moderate load capacity), food service casters (designed for food service and food processing environments, with corrosion-resistant materials, easy-to-clean surfaces, and often washdown compatibility), and aerospace casters (designed for aerospace manufacturing and maintenance, with very high load capacity, precision movement, and often specialized features for handling aircraft components). Each application-based classification reflects a set of design features and performance characteristics that are tailored to the specific needs of that application, and selecting a caster designed for the intended application can ensure optimal performance and durability.
Casters can also be classified by special features or functionalities that enhance their performance for specific applications. Some common special features include brakes (single brakes that lock the wheel, double brakes that lock both the wheel and swivel, and directional locks that lock the swivel), floor locks (which extend a foot to the floor to lift and stabilize the equipment), shock-absorbing or spring-loaded casters (which use springs to absorb shocks and vibrations, protecting the equipment and cargo from impacts), leveling casters (which combine a caster with a leveling foot for easy movement and stable positioning), high-temperature casters (designed to operate at elevated temperatures that would degrade standard materials), low-temperature casters (designed to operate at very low temperatures where standard materials would become brittle), static-dissipative or conductive casters (designed to control static electricity for electronics manufacturing or explosive environments), cleanroom casters (designed to minimize particle generation and outgassing for cleanroom environments), and antimicrobial casters (incorporating antimicrobial materials to inhibit bacterial growth for healthcare and food service applications). These special features allow casters to be tailored to the specific requirements of even the most demanding and specialized applications, ensuring that there is a caster solution for virtually every mobility need. The classification by application and special features demonstrates the remarkable versatility and adaptability of caster technology, with new designs and features continually being developed to meet the evolving needs of industry and society.
Conclusion: Navigating the World of Caster Classification
In conclusion, the world of caster classification is rich and multifaceted, with casters being categorized in numerous ways based on their design, function, load capacity, materials, mounting, application, and special features. From the fundamental classification by swivel capability (rigid vs. swivel) that determines basic maneuverability, to the critical classification by load capacity (light, medium, heavy, extra-heavy duty) that determines the maximum weight the caster can safely support, to the important classifications by wheel material (polyurethane, nylon, rubber, steel, plastic) and mounting type (top plate, stem, bolt hole, pad mount) that affect performance and compatibility, to the application-based classifications (industrial, medical, furniture, food service, aerospace) and special features (brakes, shock absorption, leveling, temperature resistance, static control, cleanroom compatibility, antimicrobial) that tailor casters to specific needs, each classification system provides a different lens through which to understand and evaluate casters.
Understanding these various classification systems is essential for navigating the wide range of caster options available and selecting the right caster for a specific application. By considering the caster’s swivel capability, load capacity, wheel material, mounting type, intended application, and any required special features, users can systematically evaluate their needs and identify the caster that best meets their requirements. It is important to note that these classification systems are not mutually exclusive – a single caster can be classified in multiple ways (for example, a heavy-duty swivel caster with polyurethane wheels, a top plate mount, a double brake, and intended for industrial use), and the most suitable caster for a given application will be the one that meets the requirements across all relevant classification dimensions. By taking a comprehensive, multi-angle approach to caster classification and selection, users can ensure that they get the right caster for their specific needs, providing safe, efficient, and reliable mobility for their equipment. Whether selecting a simple light-duty furniture caster or a complex extra-heavy-duty industrial caster with multiple special features, understanding the rich world of caster classification is the key to making informed decisions that ensure optimal performance, safety, and value.
