Application of several common materials in casters

Casters are essential mobility components used in a wide range of industrial, commercial, and residential applications. The performance and suitability of a caster for a specific application depend largely on the materials used in its construction. Different materials offer distinct advantages and limitations in terms of load capacity, durability, rolling resistance, noise level, floor protection, chemical resistance, and cost. Understanding the characteristics and applications of common caster materials is essential for selecting the right caster for your specific needs. This article provides a comprehensive analysis of the application of several common materials in casters.

Introduction to Caster Materials

Casters are complex mechanical systems composed of several components, each typically made from different materials selected for their specific performance characteristics. The main components of a caster include the wheel (with its core and tread), the bracket or yoke, the swivel mechanism, the bearings, and the mounting plate or stem. Each of these components requires materials with specific properties to ensure optimal performance, durability, and safety. The selection of appropriate materials is one of the most critical decisions in caster design and manufacturing, as it directly affects the caster’s load capacity, service life, maintenance requirements, and suitability for different operating environments.

The materials used in casters have evolved significantly over the years, from simple wood and iron wheels in early designs to the wide range of advanced engineering materials available today. Modern caster manufacturers can choose from a diverse palette of materials including various types of steel, cast iron, aluminum, polyurethane, nylon, rubber, polypropylene, and specialty materials, each offering unique combinations of properties that make them suitable for specific applications. The key to successful caster material selection is understanding the performance requirements of the application and matching them with the properties of available materials. In this article, we will analyze the most common materials used in caster construction, examining their key characteristics, advantages, limitations, and typical applications to help purchasers and users make informed decisions about caster material selection.

Steel: The Backbone of Heavy-Duty Caster Construction

Steel is the most widely used material in caster construction, serving as the primary material for brackets, wheel cores, axles, mounting plates, and many other structural components. Its popularity stems from its excellent combination of high strength, good toughness, excellent durability, reasonable cost, and wide availability. Steel brackets provide the structural strength needed to support heavy loads without bending or deforming, and they can be easily fabricated, welded, and finished to meet specific design requirements. For heavy-duty and extra-heavy-duty caster applications, steel is the material of choice for brackets and structural components, as it can safely support loads ranging from several hundred to tens of thousands of kilograms per caster.

There are several types of steel used in caster construction, each with its own characteristics and suitable applications. Carbon steel is the most common type, offering good strength and formability at a reasonable cost, and it is used for the majority of caster brackets and structural components. High-strength steel or manganese steel may be used for extremely heavy-duty applications requiring enhanced strength, wear resistance, and impact resistance. Stainless steel (typically 304 or 316 grade) is used for applications requiring corrosion resistance, such as food processing, pharmaceutical, medical, marine, and outdoor environments, where exposure to moisture, chemicals, or salt could cause carbon steel to rust. Steel components in casters are typically finished with various surface treatments to enhance corrosion resistance and appearance, including powder coating (the most common, offering excellent durability and a wide range of colors), zinc plating (providing good corrosion protection through a sacrificial zinc layer), chrome plating (offering a decorative, highly corrosion-resistant finish), and e-coating (providing excellent coverage and corrosion protection, often used as a primer under powder coating). Steel’s versatility, strength, and cost-effectiveness make it the backbone of caster construction, and it remains the most important material in the caster industry.

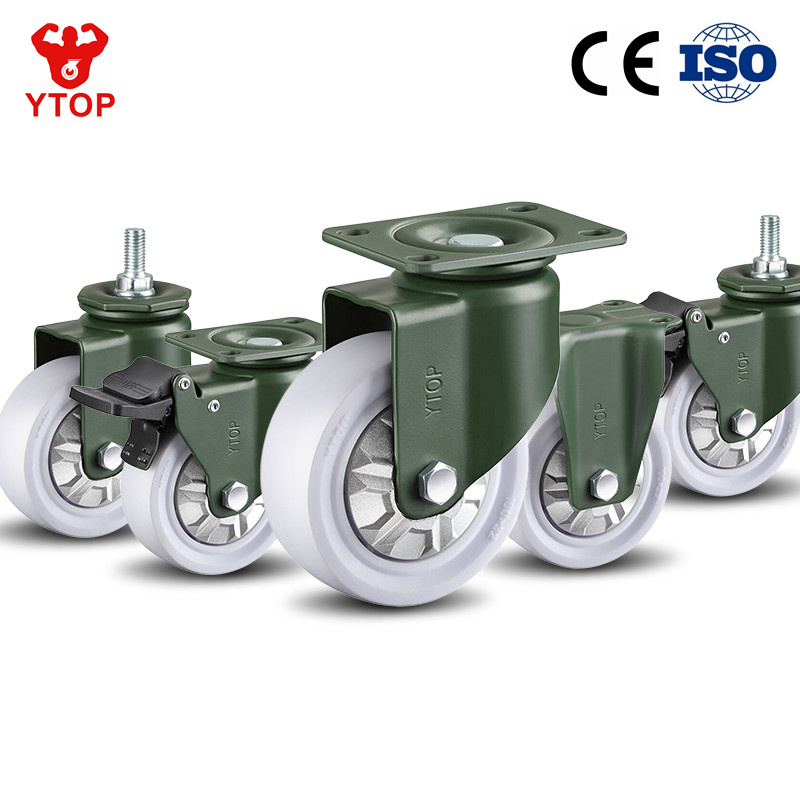

Polyurethane: The Most Popular Wheel Tread Material

Polyurethane (PU) is the most popular and widely used wheel tread material for modern industrial casters, offering an exceptional balance of performance characteristics that make it suitable for the vast majority of caster applications. Polyurethane is a versatile polymer that can be formulated across a wide range of hardness levels (durometer), from relatively soft elastomeric grades to harder, more rigid grades, allowing caster manufacturers to tailor the material properties to specific application requirements. The key advantages of polyurethane as a wheel tread material include excellent load capacity, exceptional abrasion resistance (typically 2-5 times better than rubber), relatively low rolling resistance, good noise reduction (significantly quieter than nylon or steel), non-marking properties (protecting floor surfaces from scuffs and damage), good shock absorption (cushioning impacts from bumps and uneven surfaces), and good resistance to oils, greases, and many industrial chemicals.

Polyurethane wheel treads are typically bonded to a core made from steel, cast iron, aluminum, or nylon, with the bond between the tread and core being a critical factor in caster quality and reliability. High-quality manufacturers use specialized bonding processes and rigorous quality control to ensure a strong, durable bond that will not separate under normal operating conditions. Polyurethane treads are available in various hardness levels, typically ranging from 80 Shore A to 95 Shore A for industrial applications, with the selection depending on the specific performance requirements: harder formulations (90-95 Shore A) offer higher load capacity and lower rolling resistance, making them suitable for heavy-duty, high-frequency applications; softer formulations (80-85 Shore A) offer better noise reduction, shock absorption, and floor protection, making them suitable for applications where these characteristics are priorities. Polyurethane is also available in different chemical formulations, including ether-based polyurethane (offering better hydrolysis resistance and suitability for wet or humid environments) and ester-based polyurethane (offering better mechanical properties and wear resistance but being more susceptible to hydrolysis in wet environments). The versatility, balanced performance, and cost-effectiveness of polyurethane make it the preferred wheel tread material for most modern industrial caster applications, and it is likely to remain the dominant material in the caster industry for the foreseeable future.

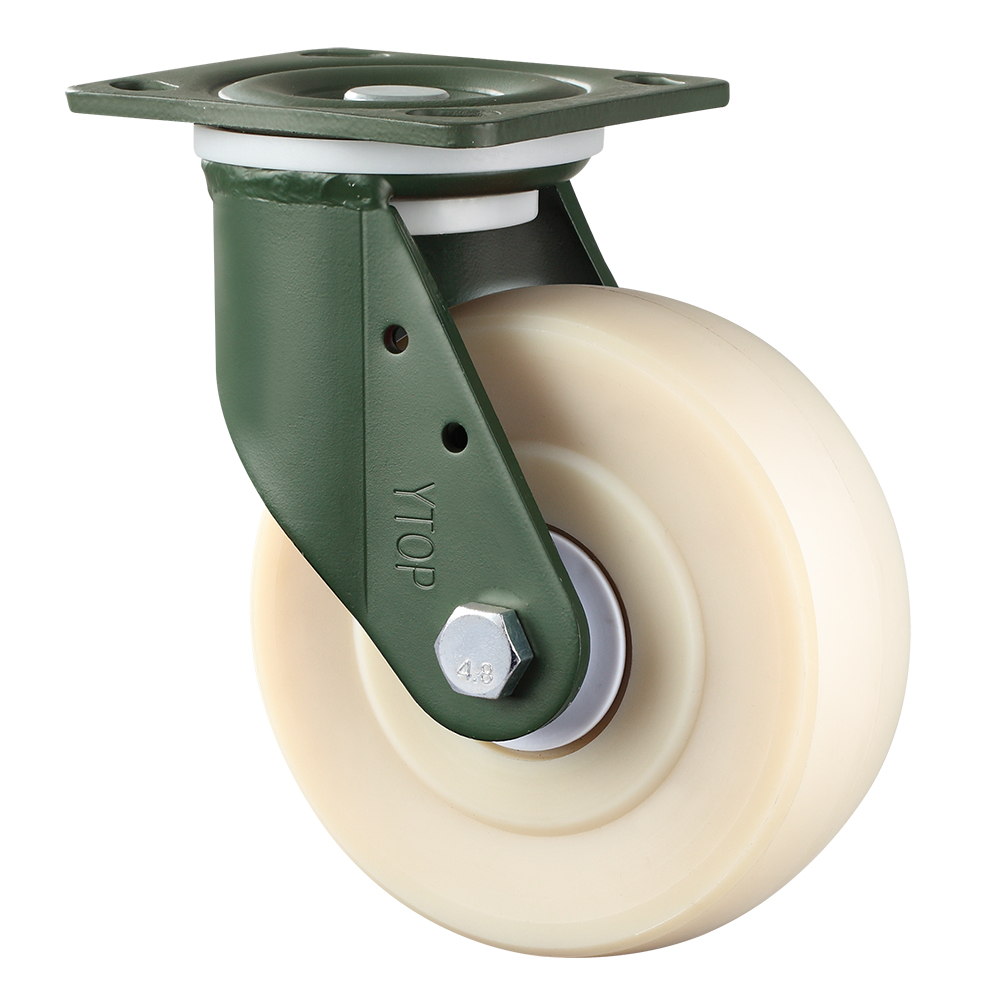

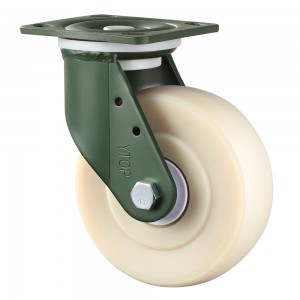

Nylon: High Load Capacity and Chemical Resistance

Nylon is another common material used in caster construction, primarily as a wheel tread material and occasionally as a wheel core or bracket material for specific applications. Nylon, a type of polyamide polymer, is known for its high mechanical strength, excellent wear resistance, low friction coefficient, and good chemical resistance. As a wheel tread material, nylon offers very high load capacity (often higher than polyurethane for the same wheel size), exceptional abrasion resistance, low rolling resistance (particularly on smooth, hard surfaces), and excellent resistance to oils, greases, solvents, and many industrial chemicals. These properties make nylon wheels particularly suitable for heavy-duty industrial applications where maximum load capacity, durability, and chemical resistance are required, and where noise and floor protection are less critical concerns.

Nylon wheels are available in several types, with nylon 6 and nylon 66 being the most common. Nylon 66 offers higher melting point, better dimensional stability at elevated temperatures, and slightly better mechanical properties than nylon 6, while nylon 6 offers better impact resistance and is generally less expensive. Nylon wheels may be solid (made entirely of nylon) or may consist of a nylon tread bonded to a steel or cast iron core for heavy-duty applications. One of the main limitations of nylon wheels is that they are significantly noisier than polyurethane or rubber wheels, particularly on hard floor surfaces such as concrete or epoxy. They may also mark or damage softer floor surfaces, and they provide less shock absorption than polyurethane or rubber, which can be a concern for fragile cargo or equipment. Nylon is also hygroscopic, meaning it absorbs moisture from the environment, which can affect its dimensional stability and mechanical properties, although this is generally not a significant issue for most caster applications. Despite these limitations, nylon remains an important wheel material for heavy-duty industrial applications where its high load capacity, excellent wear resistance, low rolling resistance, and chemical resistance offer significant advantages. Nylon is also occasionally used for caster components such as wheel cores, axle bushings, and swivel raceway components, where its low friction, good wear resistance, and corrosion resistance offer benefits.

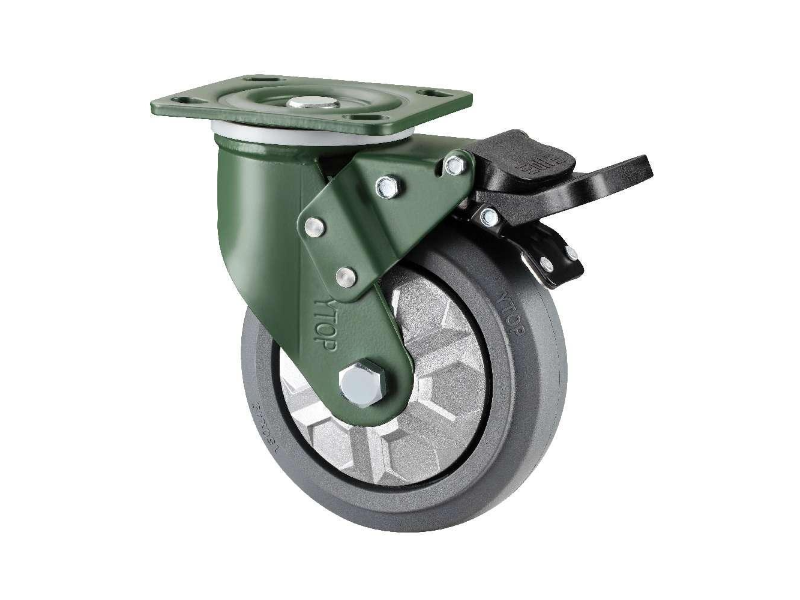

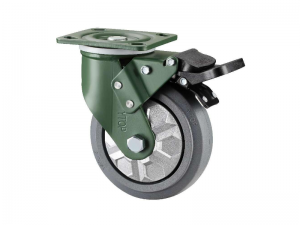

Rubber: Noise Reduction and Shock Absorption

Rubber is a traditional wheel tread material that continues to be used in specific caster applications where its unique properties are valued. Rubber wheels offer excellent noise reduction (the quietest common wheel material on hard surfaces), superior shock absorption (cushioning impacts from bumps, thresholds, and uneven surfaces), good traction (particularly on smooth or wet surfaces), and non-marking properties (for most rubber formulations). These properties make rubber wheels particularly suitable for applications where noise reduction, shock absorption, and traction are the primary concerns, such as medical equipment, hospital carts, food service carts, hospitality equipment, and applications where fragile or sensitive cargo is being transported.

However, rubber wheels also have several significant limitations that restrict their use in many industrial applications. Rubber has lower load capacity compared to polyurethane or nylon, making it less suitable for heavy-duty applications. It has higher rolling resistance, which increases the effort required to move equipment and reduces energy efficiency for powered equipment. Rubber has poorer abrasion resistance than polyurethane or nylon, leading to faster wear and shorter service life, particularly in high-frequency use applications. Rubber is also susceptible to damage from oils, greases, and many industrial chemicals, which can cause the rubber to swell, soften, or degrade over time. Rubber wheels may also develop flat spots when left stationary under heavy load for extended periods, particularly in warm environments, which can cause vibration and uneven rolling when the caster is first moved. There are several types of rubber used in caster wheels, including natural rubber (offering excellent elasticity and abrasion resistance but limited oil resistance), synthetic rubbers such as SBR (styrene-butadiene rubber, offering good abrasion resistance and cost-effectiveness), and EPDM (ethylene propylene diene monomer, offering excellent weather and ozone resistance and suitability for outdoor applications). For applications where the unique benefits of rubber (quiet operation, shock absorption, traction) are needed and the load requirements are moderate, rubber remains a viable and effective wheel material. However, for most heavy-duty industrial applications, polyurethane has largely replaced rubber as the preferred wheel tread material due to its superior load capacity, durability, and chemical resistance.

Cast Iron and Steel Wheels: For the Most Extreme Loads

Cast iron and steel wheels are used in the most extreme heavy-duty caster applications where the load requirements exceed the capacity of polyurethane or nylon wheels, and where noise and floor damage are acceptable trade-offs for maximum load capacity and durability. These wheels are made entirely of cast iron or steel (with no elastic tread), making them the hardest, strongest, and most durable wheel type available. Cast iron and steel wheels offer the highest load capacity of any caster wheel type, with some designs capable of supporting tens of thousands of kilograms per wheel. They are virtually indestructible under normal operating conditions, offering exceptional resistance to wear, impact, heat, and chemicals. They also offer very low rolling resistance on smooth, hard surfaces, and they can operate at high temperatures that would degrade polymer wheel materials.

However, cast iron and steel wheels also have significant limitations that restrict their use to very specific applications. They are extremely noisy, generating significant noise when rolling on hard floor surfaces, which can create an uncomfortable and potentially unsafe working environment. They can cause significant damage to floor surfaces, including chipping, cracking, and wear, particularly on concrete or epoxy floors. They provide no shock absorption, transmitting all impacts and vibrations directly to the vehicle and cargo, which can be damaging to both equipment and products. They have poor traction on smooth surfaces, which can be a concern for drive wheels or for use on sloped floors. Cast iron wheels are also brittle and may crack or chip under severe impact, although steel wheels offer better impact resistance. Despite these limitations, cast iron and steel wheels remain essential for certain extreme heavy-duty applications, such as heavy material handling in foundries, steel mills, heavy manufacturing facilities, and other industrial environments where extremely heavy loads need to be moved and where the operating environment can tolerate the noise and floor damage. They are also commonly used in tow-line applications and other heavy-duty material handling systems where their exceptional load capacity and durability are required. For these extreme applications, cast iron and steel wheels are the only viable option, and they continue to play an important role in the caster industry despite their limitations.

Aluminum and Other Specialty Materials

In addition to the common materials discussed above, there are several other materials used in caster construction for specific applications where their unique properties offer advantages. Aluminum is one such material, primarily used for wheel cores and occasionally for brackets or other components in weight-sensitive applications. Aluminum offers a high strength-to-weight ratio, good corrosion resistance, and good thermal conductivity, making it significantly lighter than steel or cast iron while still providing adequate strength for many applications. Aluminum core polyurethane wheels are commonly used in applications where weight reduction is important, such as aerospace equipment, portable carts, medical equipment, and applications where the cart needs to be lifted or transported frequently. Aluminum cores are typically 30-50% lighter than steel or cast iron cores of equivalent strength, which can significantly reduce the overall weight of the caster and the equipment it supports. However, aluminum is generally more expensive than steel or cast iron, and it has lower load capacity for the same core dimensions, so it is typically used only where weight reduction is a critical requirement.

Other specialty materials used in caster construction include: polypropylene (PP), a low-cost plastic used for light-duty caster wheels and components, offering good corrosion resistance and non-marking properties but limited load capacity and durability; phenolic resin, a thermoset plastic used for some heavy-duty caster wheels, offering good load capacity and heat resistance but being relatively noisy and potentially damaging to floors; brass and bronze, used for bearings and bushings in some specialty caster applications where their low friction and corrosion resistance offer benefits; and various specialty polymers and composites, developed for specific applications requiring unique properties such as extreme temperature resistance, radiation resistance, antimicrobial properties, or anti-static properties. The selection of these specialty materials is typically driven by specific application requirements that cannot be met by standard materials, and they are used in relatively small volumes compared to the common caster materials. As caster technology continues to evolve and new materials are developed, the range of materials available for caster construction will continue to expand, offering even more options for matching caster performance to specific application requirements.

Material Selection Guide and Conclusion

Selecting the right materials for a caster application requires careful consideration of the specific performance requirements, operating environment, and budget constraints. The key factors to consider when selecting caster materials include: load capacity requirements (determining the required strength of bracket and wheel materials); floor conditions and floor protection needs (influencing wheel tread material selection, with softer materials offering better floor protection); noise level requirements (softer materials like rubber and soft polyurethane are quieter, while harder materials like nylon and steel are noisier); rolling resistance and energy efficiency (harder, smoother materials generally offer lower rolling resistance); environmental conditions (temperature, moisture, chemicals, UV exposure, all of which affect material selection); maintenance and service life requirements (more durable materials like polyurethane and nylon offer longer service life); and total cost of ownership (balancing initial material cost against expected service life, maintenance, and replacement costs).

As a general guide, for most medium to heavy-duty industrial applications on smooth to moderately rough floors, polyurethane tread wheels with steel brackets offer the best overall balance of load capacity, durability, rolling resistance, noise reduction, floor protection, and cost-effectiveness. For extremely heavy-duty applications where maximum load capacity is required and noise/floor damage are acceptable, nylon or steel/cast iron wheels with heavy-duty steel brackets may be appropriate. For applications where noise reduction and shock absorption are top priorities and loads are moderate, rubber wheels may be the best choice. For corrosive or washdown environments, stainless steel brackets with appropriate wheel materials (polyurethane or nylon) are typically required. For weight-sensitive applications, aluminum core wheels may offer significant weight reduction benefits. By carefully evaluating these factors and selecting the appropriate materials for each component of the caster, purchasers and users can ensure that they get the best performance, durability, and value from their caster investment.

In conclusion, the materials used in caster construction play a critical role in determining the caster’s performance, durability, and suitability for specific applications. From steel, which forms the backbone of heavy-duty caster construction, to polyurethane, the most popular wheel tread material offering a balanced performance profile, to nylon, rubber, cast iron, aluminum, and various specialty materials, each material offers unique advantages and limitations that make it suitable for specific applications. Understanding the characteristics and applications of these common caster materials is essential for making informed decisions about caster selection, ensuring that the chosen caster meets the specific requirements of the application and provides reliable, cost-effective performance over its service life. As material science and caster technology continue to advance, the range of available materials and the performance of casters will continue to improve, offering even more options for matching caster performance to the evolving needs of industry and commerce.
