AGV gimbals: the future of industrial automated navigation

With the rapid development of industrial automation, Automated Guided Vehicle (AGV) has become an important role in modern industrial production. AGV universal wheel, as an important part of AGV technology, not only plays an important role in improving production efficiency and reducing labor costs, but also represents the future direction of industrial automated navigation. This article explores the role of AGV universal wheels (gimbals) in industrial automated navigation, their key advantages, applications, and future development trends.

Introduction to AGV Universal Wheels

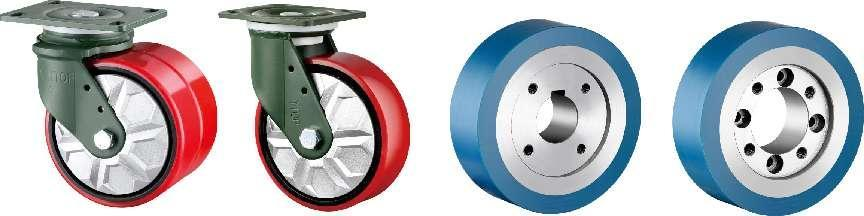

AGV universal wheels, also known as gimbals or swivel casters, are specialized mobility components that enable Automated Guided Vehicles to move in any direction with maximum flexibility and maneuverability. Unlike rigid wheels that can only move forward and backward, universal wheels can rotate 360 degrees around a vertical axis, allowing the wheel to align itself with the direction of travel automatically. This capability makes universal wheels an essential component of AGV systems, enabling vehicles to navigate complex facility layouts, turn in tight spaces, and move with precision and agility. As industrial automation continues to advance and AGV technology becomes more sophisticated, the importance of high-performance universal wheels will only continue to grow.

The concept of the universal wheel, or caster, has been around for centuries, but its application in AGV systems represents a significant technological advancement. Early industrial casters were simple, passive devices that allowed equipment to roll freely, but they were not designed for the precise, high-performance requirements of automated navigation. Modern AGV universal wheels are engineered components that incorporate advanced materials, precision bearings, optimized swivel geometry, and robust construction to meet the demanding requirements of automated material handling. These high-performance universal wheels enable AGVs to move smoothly, track accurately, maintain stability, and operate reliably over long service lives, making them a critical enabler of modern industrial automated navigation. This article examines the key characteristics, advantages, applications, and future trends of AGV universal wheels, providing valuable insights for AGV designers, manufacturers, and operators.

The Role of Universal Wheels in AGV Navigation

Universal wheels play a multifaceted role in AGV navigation, contributing to the vehicle’s ability to move precisely, reliably, and efficiently across facility floors. First and foremost, universal wheels enable omnidirectional movement and flexible steering. The 360-degree swivel capability of universal wheels allows them to align themselves with the direction of travel automatically, regardless of which direction the AGV is moving. This means that the AGV can change direction smoothly, turn in tight spaces, and even move sideways or diagonally (in some configurations) without the wheels dragging or skidding. This flexibility is essential for AGVs that need to navigate complex facility layouts, work in confined spaces, and position themselves accurately at loading and unloading stations.

Second, universal wheels contribute to stable movement and load distribution. By providing multiple support points that can swivel independently, universal wheels help distribute the vehicle’s weight evenly across the floor, preventing concentrated loads that could damage floors or cause instability. The swivel action also helps maintain stable contact with the floor, even when the vehicle is turning or navigating slightly uneven surfaces. Third, universal wheels affect the AGV’s tracking accuracy and navigation performance. Well-designed universal wheels with proper swivel geometry ensure that the vehicle follows its intended path accurately, with minimal deviation or “crabbing” during turns. This tracking accuracy is essential for AGVs that need to position themselves precisely, such as those used in manufacturing assembly lines or automated storage and retrieval systems. Fourth, universal wheels influence rolling resistance and energy efficiency. Well-designed universal wheels with low rolling resistance reduce the energy required to move the vehicle, extending battery life and reducing operating costs. Fifth, universal wheels can provide shock absorption and vibration damping, particularly when equipped with elastic tread materials, which helps protect the cargo and the vehicle from impacts and vibrations. All of these roles make universal wheels a critical component of AGV navigation systems, one that significantly impacts the vehicle’s performance, reliability, and efficiency.

Key Advantages of AGV Universal Wheels

AGV universal wheels offer several significant advantages that make them an essential component of modern automated navigation systems. First and foremost is their exceptional maneuverability. The 360-degree swivel capability of universal wheels allows AGVs to change direction smoothly, turn in tight spaces, and navigate complex layouts with ease. This maneuverability is particularly valuable in facilities where space is limited, where equipment needs to be positioned precisely, or where the AGV must navigate around obstacles and through narrow aisles. Compared to rigid wheel configurations that require large turning radii, universal wheels enable AGVs to operate efficiently in spaces that would be inaccessible or impractical for other vehicle types.

Second, AGV universal wheels offer excellent load capacity and durability. Modern universal wheels are constructed with robust materials, including strong wheel cores (typically steel, cast iron, or aluminum) and durable tread materials (usually polyurethane or nylon), that can handle the heavy loads and frequent use common in AGV applications. The swivel mechanism is also designed for durability, incorporating precision bearings and robust construction that can withstand the stresses of continuous use. This durability reduces maintenance requirements, extends service intervals, and minimizes downtime for wheel replacement, all of which contribute to lower total cost of ownership. Third, universal wheels provide smooth, consistent movement and accurate tracking. The optimized swivel geometry of high-quality universal wheels ensures that the wheels align themselves with the direction of travel quickly and smoothly, without excessive drag or delay, which contributes to accurate tracking and smooth turns. Fourth, AGV universal wheels offer low rolling resistance, which is critical for energy efficiency and battery life. Fifth, they operate quietly, creating a more comfortable working environment for human workers. Sixth, they are non-marking, protecting floor surfaces from scuffs and damage. Seventh, universal wheels are versatile and can be configured with various wheel materials, sizes, and mounting options to meet specific application requirements. These combined advantages make AGV universal wheels an essential component for reliable, efficient automated navigation.

Design and Engineering Considerations

The design and engineering of AGV universal wheels require careful consideration of several factors to ensure optimal performance, durability, and reliability in automated navigation applications. One of the most critical design parameters is the swivel offset, which is the horizontal distance between the vertical swivel axis and the center of the wheel’s contact point with the floor. The swivel offset directly affects steering effort, tracking stability, wheel wear, and maneuverability. A proper swivel offset ensures that the wheel aligns itself with the direction of travel smoothly and quickly, while providing stable tracking during straight-line movement. If the offset is too small, the wheel may shimmy or oscillate during movement; if it is too large, steering effort increases and the wheel may be slow to align during direction changes. AGV universal wheel designers carefully optimize the swivel offset based on the specific application requirements, wheel size, load capacity, and desired handling characteristics.

Another important design consideration is the wheel diameter and width. Larger diameter wheels generally offer lower rolling resistance, better ability to traverse obstacles and floor irregularities, and reduced stress on bearings, but they increase the overall height of the vehicle and may require more space. The wheel width affects load capacity, contact patch with the floor, and rolling resistance, with wider wheels generally offering higher load capacity but potentially higher rolling resistance. The selection of wheel diameter and width must be optimized based on load requirements, floor conditions, space constraints, and energy efficiency goals. The bearing system is another critical design element, as it must support both radial loads (from the vehicle weight) and axial loads (from turning and lateral forces), while providing smooth, low-friction rotation. High-quality AGV universal wheels incorporate precision bearings, often with sealed or shielded configurations to prevent contamination and extend service life. The mounting configuration must also be designed to provide secure, robust attachment to the vehicle frame while allowing for proper swivel action and load distribution. Other design considerations include the selection of tread material (which affects traction, rolling resistance, wear, noise, and floor protection), the inclusion of brakes or locking mechanisms (if required), and the potential integration of suspension or shock absorption (for fragile loads or uneven floors). By carefully considering all of these design and engineering factors, manufacturers can create AGV universal wheels that provide optimal performance, durability, and reliability for automated navigation applications.

Material Selection for AGV Universal Wheels

Material selection is a critical decision in AGV universal wheel design, as both the wheel tread material and the core material significantly impact performance characteristics including load capacity, rolling resistance, wear resistance, noise level, floor protection, shock absorption, and overall durability. For the wheel tread, polyurethane (PU) is by far the most popular material for AGV universal wheels, offering an excellent balance of load capacity, wear resistance, low rolling resistance, noise reduction, floor protection, and shock absorption. PU treads can be formulated across a range of hardness levels (durometer), allowing them to be tailored to specific application requirements. Softer PU formulations offer better noise reduction, shock absorption, and floor protection, while harder formulations offer higher load capacity and lower rolling resistance. For most AGV applications, a medium-hard polyurethane (typically 85-95 Shore A) provides a good balance of these characteristics.

Nylon is another common tread material for AGV universal wheels, offering high load capacity, excellent wear resistance, low rolling resistance, and good chemical resistance. Nylon wheels are particularly suitable for heavy-duty AGV applications where load capacity and durability are top priorities, and they can be a cost-effective choice for many applications. However, nylon wheels may be noisier and less floor-protective than polyurethane wheels, and they provide less shock absorption, which can be a consideration for AGVs carrying fragile loads or operating on uneven floors. Rubber is sometimes used for AGV universal wheel treads, offering excellent noise reduction, shock absorption, and floor protection, but rubber typically has lower load capacity, higher rolling resistance, and poorer wear resistance compared to polyurethane or nylon, making it less suitable for heavy-duty, high-frequency AGV applications. For the wheel core, common materials include steel (for maximum strength and load capacity), cast iron (for good strength and cost-effectiveness), aluminum (for lightweight applications), and nylon (for corrosion resistance and moderate load capacity). The core material should be selected based on load requirements, environmental conditions, weight considerations, and cost. For the vast majority of AGV applications, a polyurethane tread on a steel or cast iron core offers the optimal balance of performance characteristics, and this configuration is the most commonly used in modern AGV universal wheel designs. The specific material selection should be based on the application requirements including load weight, floor conditions, desired noise level, shock absorption needs, environmental conditions, and maintenance requirements.

Application Scenarios in Industrial Automation

AGV universal wheels are used across a wide range of industrial automation applications, reflecting the growing adoption of AGV technology in modern manufacturing and logistics. In automotive manufacturing, AGVs with high-performance universal wheels are used extensively to transport parts, assemblies, and tooling between workstations. The universal wheels in these applications must provide smooth swiveling, accurate tracking, and reliable performance while supporting heavy loads and operating on concrete factory floors. The maneuverability enabled by universal wheels is particularly valuable in automotive plants, where AGVs must navigate complex assembly line layouts and position themselves precisely at workstations.

In general manufacturing facilities across all industries, from electronics to consumer goods to industrial equipment, AGVs with universal wheels are used to transport raw materials, work-in-progress, and finished goods between production areas, storage locations, and shipping departments. The universal wheels enable these AGVs to navigate facility layouts efficiently, turn in tight spaces, and position themselves accurately at loading and unloading points. In warehouses and distribution centers, AGVs with universal wheels are used for tasks including order picking, pallet transport, goods-to-person operations, and inventory management. The maneuverability of universal wheels is particularly valuable in warehouse environments, where AGVs must navigate narrow aisles, turn at intersections, and position themselves accurately at storage locations. In e-commerce fulfillment centers, where order volumes can be extremely high and operational efficiency is critical, AGVs with high-performance universal wheels are used for rapid order fulfillment and sorting, and the universal wheels must provide smooth, consistent movement to support the fast-paced environment. In food and beverage processing, AGVs with stainless steel construction and appropriate universal wheel materials are used to transport ingredients, products, and packaging materials in washdown environments, where the universal wheels must resist moisture, chemicals, and corrosion. In pharmaceutical and medical device manufacturing, AGVs are used to transport materials and products in cleanroom environments, where the universal wheels must be non-marking, low-particle-generating, and compatible with cleanroom requirements. In aerospace and defense manufacturing, AGVs with heavy-duty universal wheels are used to transport large, heavy components and tooling, and the universal wheels must support extremely heavy loads while providing stable, smooth movement and precise positioning. The broad range of industrial automation applications demonstrates that AGV universal wheels are a versatile, critical component across industries, enabling the efficient, reliable operation of automated material handling systems in diverse environments.

Future Trends in AGV Universal Wheel Technology

As AGV technology continues to advance and become more sophisticated, AGV universal wheel technology is also evolving to meet the growing demands of modern industrial automation. One key trend is the development of even more durable, longer-lasting wheel materials and designs that can extend service intervals and reduce maintenance requirements. As AGVs are increasingly deployed for 24/7 operation, the demand for universal wheels that can perform reliably over extremely long service lives without maintenance will continue to grow, driving innovation in wheel materials, bearing designs, lubrication systems, and seal technologies.

Another important trend is the integration of smart technologies into AGV universal wheel systems. This includes the development of instrumented universal wheels that can monitor load weight, wheel speed, temperature, vibration, swivel position, and wear, providing real-time data that can be used for predictive maintenance, performance optimization, and operational analytics. These smart wheel systems can help identify potential problems before they lead to equipment failure, reducing downtime and improving overall system reliability. A third trend is the development of specialized universal wheel designs for emerging AGV applications, such as autonomous mobile robots (AMRs) that operate in dynamic, unstructured environments, and AGVs that operate in special environments such as cold storage, cleanrooms, or explosive atmospheres. These specialized applications require universal wheel designs that can meet unique performance requirements, driving innovation in materials, sealing, and design. A fourth trend is the continued optimization of universal wheel rolling resistance and energy efficiency, as AGV operators seek to extend battery life, reduce charging time, and lower operating costs. This includes the development of new wheel materials, tread designs, and bearing systems that minimize rolling resistance while maintaining load capacity and durability. A fifth trend is the development of omnidirectional wheel systems, such as Mecanum wheels and omni wheels, that enable AGVs to move in any direction without traditional steering, offering even greater maneuverability and positioning precision. While these wheel systems are different from traditional universal wheels, they represent an evolution of the same fundamental concept of enabling flexible, omnidirectional movement for automated vehicles. As AGV technology continues to advance and become more widespread, the importance of high-performance, reliable universal wheels will only increase, and wheel manufacturers will continue to innovate to meet the evolving needs of the industrial automation industry.

Conclusion

AGV universal wheels, or gimbals, are a critical component of modern industrial automated navigation, enabling Automated Guided Vehicles to move with flexibility, precision, and reliability across diverse applications and environments. The 360-degree swivel capability of universal wheels, combined with their robust construction, high-quality materials, and optimized engineering, makes them an essential enabler of efficient, reliable automated material handling. As industrial automation continues to transform manufacturing and logistics worldwide, the importance of high-performance AGV universal wheels will only continue to grow, as these components are fundamental to the smooth, efficient operation of AGV systems.

The key advantages of AGV universal wheels include exceptional maneuverability, high load capacity and durability, smooth and accurate tracking, low rolling resistance, quiet operation, floor protection, and versatility across applications. These advantages make universal wheels the preferred choice for AGV mobility in most industrial automation applications, from automotive manufacturing to e-commerce fulfillment, from food processing to pharmaceutical production. The design and engineering of AGV universal wheels require careful consideration of factors such as swivel offset, wheel diameter and width, bearing systems, mounting configurations, and material selection, all of which significantly impact performance and reliability. As AGV technology continues to advance, universal wheel technology will also evolve, incorporating new materials, smart technologies, specialized designs, and energy-efficient innovations that enable even higher levels of performance and reliability. For AGV designers, manufacturers, and operators, selecting the right universal wheels is a critical decision that can significantly impact the performance, reliability, and cost-effectiveness of their automated material handling systems. By carefully considering application requirements, selecting appropriate wheel materials and designs, and implementing proper maintenance practices, organizations can ensure that their AGV universal wheels provide optimal performance and long service life, contributing to the success of their industrial automated navigation operations. In the future of industrial automation, AGV universal wheels will continue to play a foundational role, enabling the flexible, efficient, and reliable movement of materials that is essential for modern manufacturing and logistics.
