An adjusting foot is a widely used component in mechanical devices and is also known as a leveling or height adjustment foot bolt, among others. Its main function is to achieve the desired height adjustment by adjusting the threads. As the adjusting foot has various styles and types, it can be customized to meet specific application requirements. This article explores the role of adjustable feet in providing stability in mechanical mechanisms, covering their function, types, advantages, applications, and selection considerations.
Introduction to Adjustable Feet in Mechanisms
Adjustable feet, also referred to as leveling feet, foot bolts, or adjustable glides, are fundamental mechanical components that provide stable, level support for equipment, machinery, and structures. These versatile components utilize threaded adjustment to achieve precise height positioning, allowing equipment to be leveled on uneven floors, adjusted to specific working heights, or stabilized to prevent movement or vibration. In mechanical systems, adjustable feet play a critical role in ensuring proper alignment, stable operation, and long-term reliability of equipment. Their widespread use across industries reflects their importance as a foundational component in mechanical design and equipment installation.
The concept of adjustable feet is elegantly simple yet highly effective: by rotating a threaded stem or bolt, the vertical position of the equipment support point can be finely adjusted, compensating for floor unevenness, accommodating specific height requirements, or enabling precise equipment leveling. This adjustability eliminates the need for time-consuming shimming, floor modifications, or custom fabrication, providing a cost-effective and efficient solution for equipment support and leveling. In mechanical mechanisms, where precision, stability, and reliability are paramount, adjustable feet provide an essential interface between the equipment and the floor, ensuring that machinery operates as intended regardless of floor conditions or installation environment.
How Adjustable Feet Work

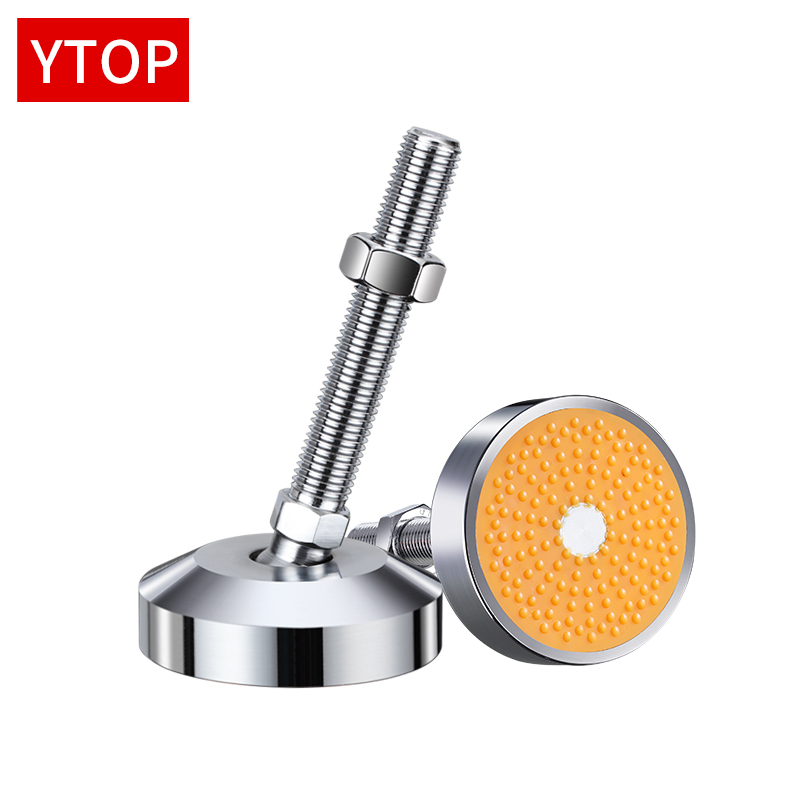

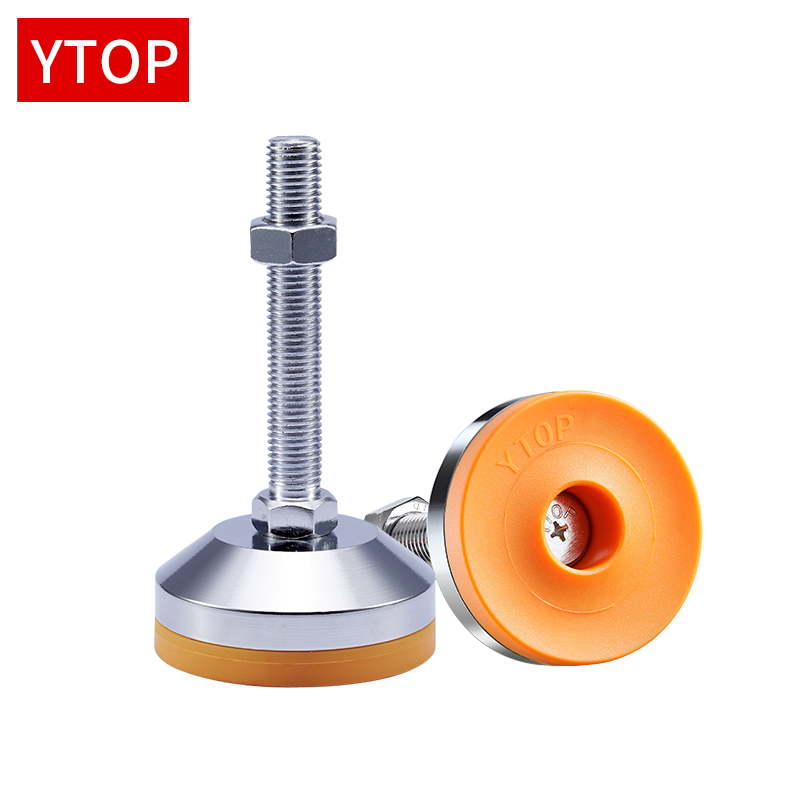

Adjustable feet operate on the principle of threaded adjustment, converting rotational motion into vertical linear movement to achieve precise height positioning. The typical construction consists of three main components: a threaded stem or bolt that engages with the equipment frame or a threaded insert, a base or foot pad that rests on the floor and provides stability and load distribution, and a lock nut or locking mechanism that secures the desired height setting once adjustment is complete. To adjust the height, the lock nut is first loosened to free the threaded stem. The foot is then rotated clockwise to raise the equipment or counterclockwise to lower it, with each full rotation corresponding to a specific vertical distance determined by the thread pitch. Once the desired height is achieved and the equipment is level, the lock nut is tightened against the equipment frame to secure the adjustment and prevent unintended movement.
The load-bearing capacity of adjustable feet is determined by several engineering factors including the material and diameter of the threaded stem (larger diameter and higher strength materials support greater loads), the thread engagement length (sufficient engagement is necessary to distribute loads and prevent thread stripping), the size and material of the base pad (larger bases distribute loads over a greater floor area, reducing floor stress), and the overall structural design and material quality. Metal adjustable feet, typically constructed from steel, stainless steel, or zinc-plated steel, offer high load capacities ranging from tens to thousands of kilograms per foot, making them suitable for heavy machinery and industrial equipment. Plastic adjustable feet, typically made from nylon, polypropylene, or reinforced polymers, offer lower load capacities but provide advantages such as corrosion resistance, non-marking floor protection, electrical insulation, and cost-effectiveness for lighter applications. The base pad may be constructed entirely from the stem material, or may incorporate a rubber, elastomer, or plastic overlay to provide enhanced floor protection, vibration damping, and non-slip properties.
Types and Styles of Adjustable Feet
Adjustable feet are available in a wide variety of types, styles, and configurations to suit diverse application requirements, load capacities, environmental conditions, and equipment designs. Standard threaded adjustable feet represent the most common type, featuring a threaded metal stem with a fixed or swivel base, available in various sizes, thread pitches, and load capacities. These versatile feet are suitable for a broad range of general-purpose applications from light furniture to medium industrial equipment. Heavy duty adjustable feet feature reinforced construction with larger diameter stems, thicker base plates, and higher strength materials to support substantial loads, making them ideal for heavy machinery, industrial equipment, and high-load applications where standard feet would be insufficient.
Stainless steel adjustable feet offer exceptional corrosion resistance and sanitation properties, making them the preferred choice for food processing, pharmaceutical manufacturing, medical equipment, marine applications, and other corrosive or washdown environments where corrosion resistance and ease of cleaning are critical requirements. Plastic or nylon adjustable feet provide corrosion resistance, non-marking floor protection, electrical insulation, and cost-effectiveness for lighter load applications, commonly used on office furniture, laboratory equipment, electronic enclosures, and light industrial applications. Adjustable feet with rubber or elastomer pads incorporate a soft base pad that provides enhanced floor protection, vibration damping, noise reduction, and non-slip properties, making them suitable for equipment that generates vibration, for use on delicate floor surfaces, or for applications where noise reduction is important. Swivel base adjustable feet feature a pivoting joint between the stem and base that allows the foot pad to maintain full contact with the floor even on uneven surfaces or when the equipment is slightly out of level, providing enhanced stability and load distribution on irregular floors. Low profile or compact adjustable feet feature a minimal overall height and compact design for applications where space is limited or where only minor leveling adjustments are needed. Stud mount adjustable feet feature a threaded stud that screws into a tapped hole in the equipment frame, while plate mount or flange mount adjustable feet feature a flat mounting plate that is bolted to the bottom of the equipment. The choice of mounting style depends on the equipment design, frame construction, and installation requirements. With such a wide range of types and styles available, adjustable feet can be selected or customized to meet the specific requirements of virtually any mechanical application.
Key Advantages and Benefits
Adjustable feet offer numerous advantages and benefits that make them an essential component in mechanical design and equipment installation. The primary advantage is precise equipment leveling capability. Unlike fixed feet or shims, which require time-consuming trial-and-error adjustment or custom fabrication, adjustable feet allow for quick, precise, and repeatable leveling by simply rotating the foot to the desired height. This is particularly critical for machinery that requires precise leveling for proper operation, such as machine tools, measuring equipment, or processing machinery, where being out of level can affect accuracy, performance, or even cause equipment damage or safety hazards. The ability to easily re-level equipment after relocation or after floor settling further adds to their value.
Second, adjustable feet provide flexibility in equipment height positioning. Different operators may prefer different working heights for ergonomic reasons, or equipment may need to be aligned with other machinery, conveyors, or work surfaces. Adjustable feet make it easy to fine-tune equipment height to meet these specific requirements without modifying the equipment itself. Third, adjustable feet facilitate equipment relocation and re-installation. When equipment is moved to a new location with different floor conditions, the feet can be quickly readjusted to accommodate the new environment, eliminating the need for new shims, floor modifications, or custom mounting hardware. Fourth, adjustable feet with rubber or elastomer pads provide vibration damping and noise reduction, isolating equipment vibration from the floor and reducing noise transmission. This can improve equipment performance, reduce wear on components, and create a quieter, more comfortable working environment. Fifth, adjustable feet protect floors from damage, particularly models with non-marking pads or plastic bases. This is important for finished floors in commercial, institutional, and residential environments where floor damage would be costly or unsightly. Sixth, adjustable feet are generally cost-effective compared to alternative leveling methods such as custom shimming, floor grinding, or adjustable mounting systems, providing a low-cost solution that delivers significant value in terms of convenience, performance, and equipment protection. Seventh, adjustable feet improve equipment stability and safety by ensuring that all support points are in firm contact with the floor, preventing rocking, tipping, or unintended movement that could pose safety hazards or affect equipment operation. These combined advantages make adjustable feet an indispensable component in virtually any mechanical system requiring stable, level support.
Application Scenarios in Mechanical Systems
Adjustable feet find application across virtually every industry and type of mechanical system, reflecting their universal utility as a support and leveling component. In industrial manufacturing, adjustable feet are used on a wide range of machinery including CNC machine tools, lathes, milling machines, grinders, presses, and injection molding machines, where precise leveling is essential for machining accuracy, equipment alignment, and proper operation. They are also used on production line equipment, conveyor systems, packaging machinery, and automated assembly equipment, where stable support and proper alignment are critical for consistent production quality and equipment reliability. In food and beverage processing, stainless steel adjustable feet are the standard choice for equipment including mixers, ovens, refrigeration units, filling machines, and processing lines, where corrosion resistance, sanitation, and washdown compatibility are essential requirements.
In pharmaceutical and medical applications, adjustable feet provide stable, level support for laboratory instruments, medical devices, diagnostic equipment, and pharmaceutical processing machinery, where precise leveling, stability, and cleanability are critical for accurate measurements, proper equipment function, and regulatory compliance. In commercial and retail environments, adjustable feet are used on display cases, refrigeration units, checkout counters, shelving systems, and kiosks, providing stable support and leveling on potentially uneven retail floors while protecting finished floor surfaces. In office and institutional environments, adjustable feet are used on desks, workstations, cabinets, shelving units, and laboratory furniture, providing stability, leveling, and floor protection for furniture and equipment in office, educational, and research settings. In data centers and electronics applications, adjustable feet support server racks, network cabinets, electronic enclosures, and testing equipment, providing stable, level support while often incorporating vibration damping and electrical insulation properties. In transportation and mobile equipment, adjustable feet are used on trailers, mobile machinery, and portable equipment to provide stable support when the equipment is stationary and not on its wheels. These diverse applications demonstrate that adjustable feet are a truly universal component, providing essential support and leveling functionality across the entire spectrum of mechanical systems and industries.
Customization Options
One of the significant advantages of adjustable feet is their high degree of customizability, allowing them to be tailored to meet the specific requirements of unique or demanding applications. Customization options include material selection, where feet can be manufactured from specific materials such as different grades of steel, stainless steel (304, 316, etc.), aluminum, brass, or various engineering plastics to meet specific strength, corrosion resistance, weight, or cost requirements. Thread customization allows for specific thread sizes, pitches, and lengths to match existing equipment frames or specific installation requirements, including metric or imperial thread standards as needed. Base customization enables specification of base diameter, shape (round, square, rectangular), thickness, and material to meet specific load distribution, floor protection, or space requirements, including specialized base designs for unique floor conditions or equipment configurations.
Pad customization allows for selection of specific pad materials including various rubber compounds, elastomers, polyurethanes, or plastics to meet specific requirements for floor protection, vibration damping, chemical resistance, temperature range, or non-marking properties. Finish customization enables specification of surface treatments such as zinc plating (various types), powder coating (custom colors), chrome plating, nickel plating, or passivation for stainless steel, to meet specific corrosion resistance, aesthetic, or regulatory requirements. Special feature customization can incorporate unique features such as swivel bases, integrated wheels (for combined leveling and mobility), locking mechanisms, anti-vibration designs, tilt compensation, or built-in level indicators to meet specific application needs. Custom labeling or branding can be added for OEM applications or product identification. When standard adjustable feet do not meet the specific requirements of a unique application, working with a manufacturer that offers customization capabilities ensures that the adjustable feet will provide optimal performance, fit, and reliability for the specific mechanical system. This customizability is one of the key reasons that adjustable feet have become such a ubiquitous and versatile component in mechanical design, as they can be adapted to virtually any support or leveling requirement.
Selection Guidelines and Installation Tips
Selecting the right adjustable feet for a specific mechanical application requires careful consideration of several key factors to ensure optimal performance, safety, and reliability. First and foremost is load capacity determination. Calculate the total weight of the equipment including its maximum operating load, any dynamic forces generated during operation, and any potential impact loads. Divide this total by the number of support points (typically 4, but may be 6 or more for large or heavy equipment) to determine the load per foot. Apply a safety factor of at least 50% (and up to 100% for critical or dynamic applications) to account for uneven load distribution, dynamic forces, impacts, and potential future load increases. Select feet with a rated load capacity that exceeds this calculated requirement to ensure safe, reliable operation under all conditions.
Second, evaluate the operating environment. Consider factors such as moisture or water exposure (washdown, outdoor, humid environments), chemical exposure (acids, bases, solvents, cleaning agents), temperature extremes (high heat, freezing cold), UV exposure (outdoor applications), and sanitation requirements (food, pharmaceutical, medical). Select materials and finishes that are compatible with the environment: stainless steel for corrosive or washdown environments, zinc-plated or powder-coated steel for general indoor use, plastic for corrosion resistance and electrical insulation, and appropriate rubber or elastomer compounds for specific chemical or temperature resistance. Third, consider the floor surface and protection requirements. For delicate or finished floors (hardwood, tile, epoxy, terrazzo), select feet with non-marking rubber or plastic pads to prevent scuffing and damage. For rough industrial floors, standard metal or nylon bases may be appropriate. Consider whether vibration damping or noise reduction is needed, which would favor feet with rubber or elastomer pads. Fourth, determine the required height adjustment range and overall height constraints. Ensure that the selected feet provide sufficient adjustment range to accommodate the expected floor unevenness (typically 10-20mm is sufficient for most indoor floors, but more may be needed for rough or outdoor surfaces) plus any desired height adjustment capability, while ensuring that the minimum and maximum overall heights fit within the available space and equipment design constraints. Fifth, select the appropriate mounting type (stud mount, plate mount, flange mount) based on the equipment frame design and installation requirements, ensuring that the mounting hardware and hole patterns are compatible. Sixth, consider any special features needed such as swivel bases for uneven floors, locking mechanisms for security, integrated wheels for mobility, or custom finishes for aesthetic or branding requirements. By systematically evaluating these factors and selecting adjustable feet that meet all the specific requirements of the application, you can ensure optimal performance, safety, and long-term reliability of the equipment support system.
For installation, ensure that the mounting surface is clean, flat, and structurally sound. Use the appropriate mounting hardware and tighten to the manufacturer’s recommended torque. For stud mount feet, ensure sufficient thread engagement (typically at least 1.5 times the thread diameter). After installation, level the equipment by adjusting each foot, using a level to verify proper leveling both side-to-side and front-to-back. Tighten all lock nuts securely after leveling. Recheck leveling after equipment has been in operation for a period, and periodically inspect and maintain the feet as part of regular equipment maintenance. Following these selection and installation guidelines ensures that adjustable feet provide stable, level, and reliable support for mechanical systems throughout their service life.
Conclusion
Adjustable feet are fundamental mechanical components that provide essential height adjustment and leveling capabilities for equipment, machinery, and structures across virtually every industry and application. Their simple yet effective threaded design enables precise, repeatable height adjustment, allowing equipment to be leveled on uneven floors, positioned at specific working heights, and stabilized for reliable operation. With a wide variety of types available including standard, heavy duty, stainless steel, plastic, rubber-padded, swivel base, and low profile configurations, and with extensive customization options for materials, threads, bases, pads, finishes, and special features, adjustable feet can be tailored to meet the specific requirements of virtually any mechanical application.
The benefits of adjustable feet are numerous and significant: precise equipment leveling without shimming or floor modification, flexible height adjustment for ergonomic or alignment requirements, easy equipment relocation and re-leveling, vibration damping and noise reduction, floor protection, cost-effectiveness compared to alternative methods, and improved equipment stability and safety. These advantages, combined with their versatility and customizability, have made adjustable feet an indispensable component in mechanical design, used on everything from heavy industrial machinery to office furniture, from food processing equipment to medical devices, and from retail displays to data center racks. By understanding how adjustable feet work, the available types and options, their key advantages, appropriate applications, and proper selection and installation practices, engineers, equipment designers, and maintenance personnel can ensure that their mechanical systems benefit from stable, level, and reliable support that enhances equipment performance, safety, and longevity. In the world of mechanical mechanisms, adjustable feet truly are the way to stability, providing the foundational support that enables machinery and equipment to operate as intended in any environment.
